Key Takeaway
A multimeter measures various electrical parameters like voltage, current, and resistance. A voltmeter, on the other hand, is designed specifically to measure voltage and is simpler to use. Multimeters are versatile tools, ideal for troubleshooting complex electrical issues.
Voltmeters are better suited for quick and straightforward voltage measurements. Choose based on your specific needs.
Core Functional Differences Between Multimeters and Voltmeters
Multimeters and voltmeters are both vital tools used in electrical measurements, but they serve different functions. A multimeter is a multifunctional device capable of measuring voltage, current, and resistance, making it a versatile tool for various electrical tasks. In contrast, a voltmeter is specifically designed to measure voltage only.
This core functional difference means that multimeters are often preferred by those who require a single device for multiple measurements. However, voltmeters can provide more accurate voltage readings due to their specialized nature. Understanding these differences can help users select the right tool for their specific needs, ensuring efficiency and accuracy in their electrical projects.
Applications of Multimeters vs. Voltmeters
Both multimeters and voltmeters are tools used for measuring electrical quantities, but they serve different purposes. A multimeter is a versatile tool that can measure voltage, current, and resistance, making it a go-to device for general electrical troubleshooting and testing. Multimeters can measure both AC and DC signals and offer a wide range of functions, from simple voltage checks to more complex tasks such as continuity testing and diode testing.
On the other hand, a voltmeter is specifically designed to measure voltage across two points in a circuit. Voltmeters are typically used when only voltage measurement is needed, offering high precision in measuring AC or DC voltages. Unlike multimeters, which are more general-purpose, voltmeters are ideal when the user is focused solely on measuring the potential difference in a circuit.
While both tools serve distinct functions, they often overlap in applications. For example, if you need to measure the voltage in a circuit, you could use either a voltmeter or a multimeter set to measure voltage. The choice between the two comes down to the specific needs of the task.
When to Choose a Multimeter Over a Voltmeter
While both multimeters and voltmeters are used to measure voltage, a multimeter offers greater versatility for a wider range of measurements. Here’s why you might choose a multimeter:
1. Comprehensive Testing: Multimeters can measure not just voltage, but also current, resistance, continuity, and sometimes even temperature and frequency. This makes them ideal for diagnosing problems in complex circuits.
2. More Flexibility: If you only need to measure voltage, a voltmeter is sufficient. However, a multimeter can be used for a variety of other measurements, making it more versatile for everyday electrical testing and troubleshooting.
3. Cost-Effectiveness: Multimeters are often more affordable than buying individual instruments like voltmeters, ammeters, and ohmmeters. Investing in a multimeter means you have an all-in-one tool for a variety of testing needs.
Key Features That Distinguish the Two Tools
1. Functionality:
Multimeter: A multimeter is a versatile tool used to measure voltage, current, and resistance in a circuit. It can also test for continuity and diodes, making it ideal for basic electrical troubleshooting and diagnostics.
Oscilloscope: An oscilloscope, on the other hand, is used to visualize electrical waveforms over time. It displays signals in the form of waveforms on a screen, enabling the analysis of signal frequency, amplitude, and phase.
2. Measurement Types:
Multimeter: Primarily used for measuring steady-state values (e.g., DC or AC voltage, resistance, current). It provides precise numerical readings but doesn’t offer a time-domain view of the signal.
Oscilloscope: Designed for dynamic measurements, an oscilloscope captures changing signals and displays them in real time, allowing users to analyze the waveform characteristics of a signal, including its frequency and distortion
3. Precision and Range:
Multimeter: Multimeters are generally more precise for standard measurements, offering better accuracy for basic electrical testing within their designated ranges.
Oscilloscope: Oscilloscopes are better suited for complex signal analysis, where you need to look at high-frequency signals, waveform shapes, and even anomalies in timing.
4. Cost and Complexity:
Multimeter: Multimeters are affordable, user-friendly, and typically require less expertise to operate. They’re portable and perfect for quick diagnostics in the field.
Oscilloscope: Oscilloscopes are more expensive and often require more in-depth knowledge to operate effectively. However, they are indispensable in fields like electronics design and debugging high-frequency circuits.
Understanding Limitations in Each Instrument

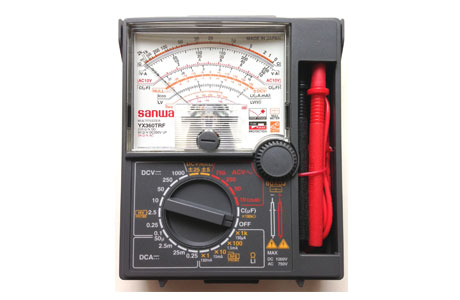

Multimeters are versatile, but they come with limitations depending on the type of task. Analog multimeters, for instance, lack precision for fine measurements due to parallax errors caused by the needle’s position. They are better suited for tasks requiring trend observations, like monitoring voltage fluctuations. However, their inability to provide digital precision limits their use in advanced applications.
Digital multimeters (DMMs), on the other hand, excel in accuracy but can lag when measuring rapid fluctuations, as they rely on sample rates. In high-frequency applications, this lag can lead to inaccurate readings. Environmental factors, such as extreme temperatures or high electromagnetic interference, can also affect the performance of both analog and digital models.
Another notable limitation is range selection. While auto-ranging models reduce manual error, incorrect settings in manual-ranging devices can lead to blown fuses or incorrect results. Additionally, not all multimeters are designed to handle high voltages or currents safely, making it crucial to understand the device’s specifications before use.
Conclusion
In conclusion, while both multimeters and voltmeters are essential tools for electrical diagnostics, their purposes and functionalities differ significantly. A voltmeter is specialized for measuring voltage, making it straightforward and highly reliable for this single task. In contrast, a multimeter offers a broader range of measurements, including voltage, current, and resistance, making it versatile but potentially more complex to use.
Choosing between the two depends on your specific needs. If you frequently deal with diverse measurements, a multimeter is the obvious choice. However, for tasks that require only voltage measurement, a voltmeter may offer simplicity and precision. Understanding these distinctions ensures you select the right tool for the job and use it effectively.
