Key Takeaway

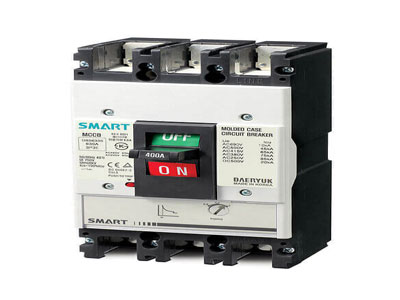

An MCCB (Molded Case Circuit Breaker) is used to protect electrical systems from overloads, short circuits, and faults. Unlike MCBs, MCCBs are designed for higher current ratings, making them ideal for industrial and commercial applications. They can handle currents up to 2,500A and offer adjustable trip settings for better control over protection.
MCCBs are commonly used in power distribution systems, large motors, and heavy machinery to ensure the circuit operates safely. They are also employed in critical facilities like data centers and factories where reliability is essential. MCCBs provide advanced features like adjustable trip curves and fault protection, making them versatile and suitable for a wide range of applications. They are a crucial component for managing high-capacity electrical systems effectively.
Primary Functions of MCCBs in Electrical Systems
At its core, the primary function of an MCCB is to provide protection to electrical circuits by interrupting the flow of current during overload or short-circuit conditions. Unlike fuses, which must be replaced after a fault, MCCBs can be reset after tripping, making them more efficient and cost-effective for industrial and commercial applications.
MCCBs are designed to handle high-current environments, typically providing protection for circuits in the range of 16A to 2500A. The breaker uses a thermal-magnetic mechanism: the thermal element responds to overload conditions, while the magnetic element reacts to short-circuit faults. This dual protection ensures that the electrical system is safeguarded from both gradual current increases and rapid short-circuit occurrences.
In essence, MCCBs act as a critical line of defense, preventing electrical fires, equipment damage, and other hazards by disconnecting the electrical supply when abnormal conditions are detected. Whether in residential, commercial, or industrial environments, the ability of MCCBs to manage high current loads makes them indispensable for safe, efficient operation.
Applications of MCCBs in Industrial Power Distribution
In industrial power distribution systems, MCCBs are commonly used to protect electrical circuits and ensure the continuous, safe operation of machines and equipment. The role of an MCCB in industrial systems is multifaceted, providing both overload and short-circuit protection in high-power environments.
1. Protection for High-Power Equipment: MCCBs are essential for protecting high-power equipment such as motors, transformers, and pumps. These devices often experience large fluctuations in current, and an MCCB ensures that the equipment is protected from conditions such as overload (when equipment draws more current than it can handle) or short circuits (when a circuit fails due to faults in the wiring). By disconnecting the supply during these faults, the MCCB prevents damage to costly equipment.
2. Managing Electrical Loads: In factories or manufacturing plants, there are multiple electrical circuits powering various equipment simultaneously. An MCCB helps manage and balance these high electrical loads, ensuring that any circuit facing an overload condition is tripped automatically to prevent damage or fire. This is particularly crucial in large-scale manufacturing processes where electrical systems are critical to maintaining production schedules.
3. Preventing Electrical Hazards: Industries working with flammable materials, hazardous chemicals, or high-temperature operations must ensure that their electrical systems remain safe from faults. MCCBs are designed to trip quickly and reliably under fault conditions, preventing sparks or overheating that could lead to fires or explosions in sensitive areas.
In summary, MCCBs provide industrial plants with the ability to manage high electrical currents, safeguard valuable machinery, and mitigate the risks of electrical hazards, ensuring smooth and safe operation of electrical systems.
You May Like to Read
How MCCBs Provide Overload and Short Circuit Protection
The ability of an MCCB to protect electrical systems from both overload and short circuits is fundamental to its role in electrical safety. Let’s break down how MCCBs deliver this protection and why it’s critical for preventing damage to both electrical circuits and connected equipment.
1. Overload Protection: Overload conditions occur when electrical devices or circuits draw more current than their rated capacity for an extended period. This might happen when too many appliances are connected to the same circuit, or a single appliance malfunctions and starts to draw excessive current. MCCBs are equipped with a thermal element that responds to these prolonged current surges. When the current exceeds a preset threshold for a certain duration, the thermal element heats up and triggers the MCCB’s trip mechanism, disconnecting the circuit. This prevents the circuit from overheating and possibly starting a fire.
2. Short Circuit Protection: Short circuits happen when electrical conductors (such as wires) come into contact with each other, creating a low-resistance path for current. This results in a rapid increase in current, which can cause extensive damage to both the circuit and the connected equipment. To address this, MCCBs incorporate a magnetic trip mechanism. This mechanism uses a strong magnet to detect the rapid increase in current typical of a short circuit. When a short circuit occurs, the magnetic element trips almost instantaneously, cutting off the power before the fault can cause any damage.
In essence, MCCBs offer a dual-layer protection system that responds to both slow current increases (overloads) and instantaneous current surges (short circuits). By disconnecting the power during these fault conditions, MCCBs ensure that electrical systems remain safe and efficient.
Key Industries Where MCCBs Are Essential
MCCBs are indispensable in a wide variety of industries where electrical systems are critical to operations. Their ability to handle high current loads and provide comprehensive protection makes them a key component in safeguarding electrical equipment and ensuring operational safety. Here are some key industries where MCCBs are essential:
1. Manufacturing and Production: In manufacturing plants, where large machinery operates at high power levels, MCCBs play a vital role in protecting against faults that could damage the machinery or interrupt production. Whether it’s protecting motors, conveyor belts, or HVAC systems, MCCBs ensure that overload or short-circuit conditions don’t lead to costly downtime or equipment damage. They also help manage complex electrical loads from multiple devices.
2. Power Generation and Distribution: The energy sector relies heavily on MCCBs for protecting transformers, generators, and switchgear. In power plants, where the electricity produced needs to be safely distributed across vast networks, MCCBs provide the necessary protection against faults that could disrupt the power flow or damage sensitive equipment.
3. Commercial Buildings: In large commercial buildings, where electrical systems support everything from lighting to HVAC and office equipment, MCCBs help protect both the building’s wiring and the electrical devices within it. For instance, MCCBs protect from overload when an air conditioning unit draws excessive current or if short circuits occur due to aging electrical infrastructure.
4. Transportation and Infrastructure: In transportation systems such as railways or airports, MCCBs are used to protect signal systems, lighting, and other essential electrical systems. They prevent electrical faults from interfering with the safe operation of these vital infrastructures, especially in high-demand situations where electrical reliability is crucial.
Across these and other industries, MCCBs are an essential tool for maintaining electrical system safety, ensuring that systems remain reliable and resilient in the face of fault conditions.
Factors to Consider When Selecting an MCCB for Specific Applications
Selecting the right MCCB for a particular application is not a one-size-fits-all decision. Several key factors must be considered to ensure that the MCCB performs optimally in the specific environment and meets safety requirements. Here’s a breakdown of these factors:
1. Current Rating: The most important factor in choosing an MCCB is its current rating, which refers to the maximum current the breaker can handle. Selecting an MCCB with an appropriately rated current ensures that it can protect against both overload and short circuit conditions without tripping unnecessarily. If the current rating is too low for the circuit, it will trip too frequently, while a rating that is too high may fail to trip during an overload situation.
2. Breaking Capacity: The breaking capacity of an MCCB refers to the maximum fault current it can interrupt without damaging itself. For high fault current systems, such as industrial applications, selecting an MCCB with a high breaking capacity is essential to protect both the electrical system and the MCCB itself from fault damage.
3. Trip Characteristics: MCCBs are designed with different trip characteristics that define how they respond to faults. Some MCCBs are designed for quick tripping in the event of a short circuit, while others are more suited to slow tripping for overload protection. The type of application (e.g., sensitive equipment vs. heavy machinery) will influence the choice of trip characteristics.
4. Environmental Factors: The environmental conditions in which the MCCB operates—such as temperature, humidity, and exposure to dust or chemicals—should also be considered. In some environments, you may need an MCCB with special coatings or seals to protect it from damage.
By carefully evaluating these factors, you can select the ideal MCCB that will provide maximum protection, efficiency, and longevity for your electrical system.
Conclusion
In conclusion, MCCBs are essential devices in electrical systems, providing overload and short-circuit protection across a range of applications. Their ability to manage high current and provide reliable circuit protection makes them indispensable in industries such as manufacturing, power distribution, and commercial buildings. When selecting an MCCB, it’s crucial to consider factors such as current rating, breaking capacity, and environmental conditions to ensure optimal performance. By understanding how MCCBs function and choosing the right type for your needs, you can maintain safe and efficient electrical systems across various sectors.
