Key Takeaway
An MCB (Miniature Circuit Breaker) is a device used to protect electrical circuits from overloads and short circuits. It’s commonly used in residential and commercial buildings. MCBs are ideal for low-power circuits and automatically trip when there’s excessive current flow, preventing damage.
An MCCB (Molded Case Circuit Breaker) is similar but designed for higher current applications. MCCBs can handle larger loads and offer adjustable settings for overload protection. They are typically used in industrial and commercial settings, where higher protection is needed for circuits carrying heavy electrical loads. While both MCB and MCCB serve to protect circuits, the main difference is the size and capacity—MCCBs are used for higher power systems, while MCBs are suited for smaller, lower-power circuits.

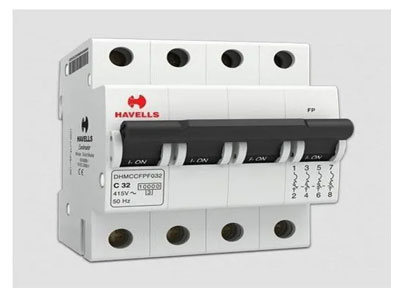

Understanding the Basics of MCB (Miniature Circuit Breaker)
The MCB (Miniature Circuit Breaker) is one of the most commonly used electrical protection devices in residential and light commercial circuits. It’s designed to protect circuits from overload and short circuits, which can otherwise cause damage to wiring or equipment, and in extreme cases, even result in fires. The primary function of an MCB is to automatically disconnect the circuit when the current exceeds its rated value.
Key Features of MCB:
Current Rating: MCBs typically come with current ratings ranging from 6A to 100A, making them ideal for low to medium power circuits.
Breaking Capacity: MCBs are designed to safely interrupt a fault current (like a short circuit) within a specific time frame, usually rated at 6kA or 10kA in residential settings.
Types of MCBs: There are different types of MCBs based on the trip curve, including Type B (for residential), Type C (for commercial and industrial), and Type D (for heavy-duty loads).
MCBs are ideal for use in applications such as lighting circuits, household appliances, and low-power machinery. Their compact design allows them to be easily mounted in electrical panels, making them convenient for circuit protection in everyday settings.
What Is MCCB (Molded Case Circuit Breaker)?
An MCCB (Molded Case Circuit Breaker) is a more advanced and higher-rated circuit protection device compared to an MCB. While both devices serve the same fundamental purpose, MCCBs offer greater flexibility in terms of current ratings, adjustable settings, and the ability to handle larger electrical loads.
Key Features of MCCB:
Current Rating: MCCBs can handle a wide range of current ratings, typically from 100A to 2500A, making them suitable for larger circuits and high-power industrial systems.
Adjustable Settings: Unlike MCBs, MCCBs allow you to adjust their trip settings (overload and short circuit protection), providing more precise control over circuit protection.
Breaking Capacity: MCCBs can have a significantly higher breaking capacity, often rated up to 65kA, making them ideal for industrial applications where fault currents may be higher.
MCCBs are mainly used in industrial and commercial installations where circuits handle heavy loads. They are designed to protect motors, transformers, and large electrical equipment, making them critical in high-capacity electrical systems. MCCBs are available with a range of features, including thermal-magnetic trip mechanisms and electronic trip units, providing better protection for sensitive equipment.
You May Like to Read
Key Differences Between MCB and MCCB
While MCBs and MCCBs both serve the purpose of protecting electrical circuits from overloads and short circuits, they have several key differences that make them suitable for different applications. Let’s break down these differences:
1. Current Rating:
MCB: Typically rated from 6A to 100A, designed for low to medium-power circuits.
MCCB: Rated from 100A to 2500A, making them suitable for high-power industrial and commercial circuits.
2. Adjustability:
MCB: Has a fixed trip setting based on the circuit’s current rating.
MCCB: Features adjustable settings for both overload and short circuit protection, allowing for better customization based on specific application needs.
3. Breaking Capacity:
MCB: Usually rated between 6kA and 10kA in residential and commercial settings.
MCCB: Can handle higher fault currents, often rated up to 65kA, making it ideal for industrial applications where fault currents are typically higher.
4. Size and Design:
MCB: Compact in size, designed for easy installation in residential and light commercial electrical panels.
MCCB: Larger and more robust in design, intended for industrial panels or heavy-duty systems.
5. Cost:
MCB: Generally more affordable, making it a cost-effective option for lower power circuits.
MCCB: More expensive due to its higher current ratings, adjustability, and enhanced breaking capacity.
The key takeaway is that MCBs are best suited for residential and light commercial applications, while MCCBs are designed for industrial or high-power commercial environments.
Applications of MCBs vs. MCCBs in Electrical Systems
Both MCBs and MCCBs have specific applications depending on the size and type of the electrical load. Understanding when to use each type of circuit breaker is crucial for ensuring optimal protection and system reliability. Let’s look at the primary applications of MCBs and MCCBs:
MCBs (Miniature Circuit Breakers):
MCBs are widely used in residential buildings, small commercial establishments, and light industrial applications where the load is relatively low. Some common uses include:
Lighting circuits
Socket outlets
Small household appliances
Fans and air conditioning units (small size)
Due to their smaller size and lower current ratings, MCBs are ideal for low-power circuits, where the risk of high fault currents is minimal.
MCCBs (Molded Case Circuit Breakers):
MCCBs, on the other hand, are employed in larger systems that require higher protection due to the increased potential for fault currents. Their adjustable settings and high breaking capacity make them suitable for:
Industrial machinery
Large transformers
Motors and motor control panels
HVAC systems (industrial size)
Commercial buildings with large electrical demands
In these applications, MCCBs provide better control over overload and short-circuit protection, preventing costly damage to high-power equipment.
Choosing Between MCB and MCCB for Different Electrical Loads
Choosing the right circuit breaker for your electrical system depends largely on the size of the load and the type of protection needed. Here’s a simple guide to help you decide between MCB and MCCB based on your specific requirements:
1. For Residential Use:
If you’re installing electrical systems in a home or small office, an MCB is generally the best choice. It provides sufficient protection for typical household appliances, lighting, and low-power devices.
2. For Industrial Use:
In industrial settings, where heavy machinery, motors, and large equipment are common, an MCCB is necessary due to its higher current ratings, adjustable settings, and larger breaking capacity.
3. For High-Power Commercial Circuits:
MCCBs are also preferred in commercial applications, particularly where systems require the protection of high-capacity electrical loads, such as air conditioning systems, power distribution panels, and transformers.
4. For Mixed Loads:
If your system handles a combination of residential and industrial loads, you may need a mix of MCBs for the smaller circuits and MCCBs for the larger, more demanding equipment.
The key here is to always assess your system’s current requirements and fault current expectations to ensure the circuit protection device is appropriately sized.
Conclusion
In summary, both MCBs and MCCBs are essential for protecting electrical circuits, but they are designed for different types of applications. MCBs are best suited for low-power, residential and light commercial circuits, while MCCBs are ideal for industrial and high-power commercial environments. Understanding the key differences in their ratings, adjustability, breaking capacity, and applications will help you select the most suitable protection for your electrical systems.
By choosing the right circuit breaker, you can ensure optimal safety and reliability in your electrical installations, avoiding potential faults and reducing the risk of costly damage.
