Key Takeaway

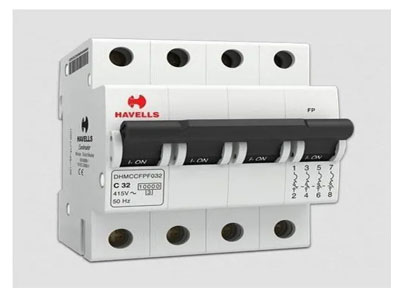

An MCB (Miniature Circuit Breaker) is a safety device used to protect electrical circuits from overloads and short circuits. It automatically trips to cut off the power supply when the current exceeds a safe limit, preventing damage to appliances and wiring. MCBs are compact, reliable, and can be easily reset after tripping, making them an essential component in modern electrical systems.
The internal diagram of an MCB typically includes key parts like the bimetallic strip, tripping coil, and arc chute. The bimetallic strip bends under excess heat from an overload, triggering the trip mechanism. The tripping coil activates during a short circuit to quickly disconnect the circuit. The arc chute safely extinguishes any electrical arcs formed during the trip. Understanding this design helps explain how MCBs ensure electrical safety.
Understanding the Structure of an MCB
The structure of an MCB is relatively simple but crucial for its functionality. Essentially, an MCB consists of a casing, contacts, trip mechanism, and operating lever. The casing is typically made of high-quality plastic, which ensures the safety of the internal components. The contacts are made from copper or silver, designed to withstand electrical arcing when the MCB trips.
Inside the casing is the trip mechanism, which includes both thermal and electromagnetic elements. The thermal mechanism is responsible for protecting against overloads, while the electromagnetic mechanism trips the circuit during a short circuit. The operating lever is used to manually switch the MCB on or off.
A diagram of an MCB typically shows these components clearly, allowing engineers to understand the basic design. This is essential not only for installation but for identifying and addressing potential issues during maintenance.
Key Components of an MCB Explained with Diagrams
To fully understand how an MCB works, we must break down its key components. Here is a detailed explanation of each part, typically depicted in an MCB diagram:
1. Casing:
The plastic casing of the MCB is designed to protect the internal components from external damage, dirt, moisture, and electrical hazards. It also helps to contain any arc flashes or heat generated during tripping.
2. Contacts:
These are the parts that make and break the circuit. The MCB typically has two sets of contacts: fixed contacts and moving contacts. The moving contacts open when the MCB trips, disconnecting the circuit. The contacts are often made from copper or silver for excellent conductivity and durability.
3. Trip Mechanism:
The trip mechanism is the heart of the MCB’s protection function. It consists of two parts:
Thermal Trip (Overload Protection): This mechanism uses a bimetallic strip that bends under heat. When the current exceeds a set limit for a prolonged period, the strip bends enough to trip the MCB and disconnect the circuit.
Electromagnetic Trip (Short Circuit Protection): This is the more immediate protection. It uses an electromagnet that gets energized when the current exceeds a certain threshold. This rapidly pulls a lever, disconnecting the circuit almost instantaneously.
4. Operating Lever:
The operating lever is what you manually use to switch the MCB on or off. It’s typically marked with labels for clear identification. This lever is connected to the trip mechanism, and when the MCB trips, the lever will switch to the off position.
Diagrams illustrating these components help engineers understand how each part interacts, making installation and maintenance simpler and more efficient.
You May Like to Read
How an MCB Operates to Protect Electrical Circuits
Understanding how an MCB operates is key to grasping its importance in electrical protection. The MCB is designed to automatically disconnect the electrical circuit when it detects an overload or short circuit. Here’s a breakdown of its operation:
1. Overload Protection (Thermal Mechanism):
When the current flowing through the circuit exceeds the rated capacity of the wiring, it causes the circuit to overheat. In an MCB, the thermal mechanism detects this increase in temperature. It works by using a bimetallic strip, which bends when it heats up. If the overload persists, the bending strip eventually trips the MCB, disconnecting the circuit and preventing damage from heat buildup.
This process is gradual, meaning the MCB doesn’t trip immediately, allowing the system to handle temporary overloads without cutting off the power unnecessarily.
2. Short Circuit Protection (Electromagnetic Mechanism):
A short circuit occurs when the live and neutral wires come into contact, creating a low-resistance path for the current. This results in a huge surge of electrical current that could cause severe damage. The MCB’s electromagnetic mechanism reacts to this surge almost instantaneously. When the current exceeds the predefined threshold, the electromagnet activates, pulling a lever that trips the MCB and disconnects the power.
The electromagnetic trip works extremely quickly, usually in a fraction of a second, ensuring that the short circuit does not cause further harm to the system.
Through this process, the MCB protects wiring, appliances, and users from potential damage, fires, or electrocution.
Types of MCBs and Their Internal Designs
There are several types of MCBs, each designed for specific applications. Understanding these types and their internal designs is essential for selecting the right one for your electrical system. Here’s a breakdown:
1. Type B MCBs (Standard Protection):
These MCBs are designed to trip when the current exceeds 3-5 times the rated current. They are commonly used for residential circuits that have typical electrical loads, such as lighting and general appliances. Type B MCBs offer basic overload and short circuit protection.
2. Type C MCBs (General Purpose Protection):
Type C MCBs trip when the current exceeds 5-10 times the rated current. These are often used in commercial and industrial applications, where the circuits might have higher starting currents, such as motors or machinery. The design accommodates temporary current surges without tripping immediately.
3. Type D MCBs (High Inrush Current Protection):
Type D MCBs trip at 10-20 times the rated current. These are used in circuits where there is a significant inrush current, like in transformers or large motors. These MCBs allow the high initial current when the equipment is started but will trip if the current exceeds safe levels.
4. C Curve vs. D Curve:
Internally, the difference between C curve and D curve MCBs lies in their magnetic trip characteristics. C curve MCBs trip when there’s a moderate surge in current, whereas D curve MCBs are designed for equipment that regularly experiences high inrush currents.
Understanding the types and internal designs of MCBs helps engineers select the best type for their specific needs, ensuring optimal protection.
Interpreting MCB Diagrams for Installation and Maintenance
When dealing with MCBs, diagrams become an invaluable tool for installation, maintenance, and troubleshooting. Whether you’re looking to install a new MCB, diagnose a fault, or replace one, understanding the diagram is critical. Here’s how to read and interpret an MCB diagram effectively:
1. Understanding the Layout:
The diagram of an MCB typically shows its internal components in relation to its external terminals. The terminals are marked for connection with live (L) and neutral (N) wires. The operating lever and trip mechanism are shown to indicate how they interact.
2. Identifying the Ratings:
Each diagram will include important details such as the current rating, which tells you the maximum current the MCB can handle. Look for the trip curves (B, C, D) indicated in the diagram to understand the tripping characteristics.
3. Connection Points:
The diagram also indicates the connection points for the live and neutral wires. It will show you where to connect the incoming and outgoing cables to ensure proper current flow through the device.
4. Installation Guidelines:
Many diagrams also include installation instructions. These could include recommendations on wiring, mounting, and ensuring proper clearances from other electrical components to avoid overheating.
5. Fault Diagnosis:
By using an MCB diagram, you can quickly pinpoint issues like incorrect wiring, faulty components, or tripped mechanisms. It also helps you understand how the device reacts under different fault conditions, making it easier to troubleshoot.
In conclusion, diagrams are essential for the proper understanding of MCB functionality and for ensuring that the correct MCB is selected, installed, and maintained.
Conclusion
In conclusion, MCBs are essential components in ensuring the safety of electrical systems. Their design, with key components such as the thermal and electromagnetic trip mechanisms, allows them to effectively protect against overloads and short circuits. Diagrams play a crucial role in helping engineers and electricians understand the structure, components, and operation of MCBs, aiding in both installation and maintenance. By interpreting MCB diagrams, engineers can ensure correct installation, safe operation, and quick fault identification, making MCBs indispensable in modern electrical systems.
