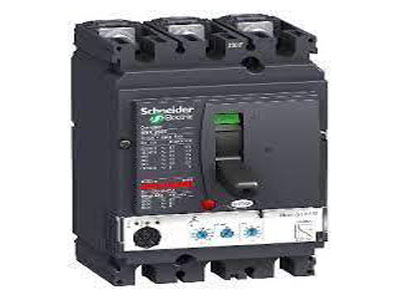

What Is MCB And MCCB?

Key Takeaway

An MCB (Miniature Circuit Breaker) and MCCB (Molded Case Circuit Breaker) are both devices used to protect electrical circuits, but they serve different purposes. An MCB is designed for low current ratings, typically used in homes and small offices. It protects circuits from overloads and short circuits by automatically cutting off power when needed. MCBs are compact, easy to reset, and perfect for smaller setups.

MCCBs, on the other hand, are built for higher current ratings and are used in industrial and commercial applications. They handle larger loads and offer adjustable trip settings, making them more versatile. MCCBs provide protection against overloads, short circuits, and even earth faults. The key difference lies in their capacity and adjustability—MCBs are ideal for smaller loads, while MCCBs are suitable for heavy-duty electrical systems.

Key Differences Between MCB and MCCB

The key differences between MCBs and MCCBs are essential when it comes to choosing the right protection for a particular electrical circuit. One of the most significant distinctions lies in their current ratings. MCBs typically protect circuits with lower current ratings (up to 100A), making them ideal for residential and light commercial applications. They are often used to protect circuits in homes, offices, and small shops. They are efficient, compact, and more affordable compared to MCCBs.

In contrast, MCCBs are designed for higher current applications and can handle up to several thousand amperes. This makes them ideal for industrial settings, where equipment requires robust protection due to higher power consumption. MCCBs are built to handle both overload and short circuit protection in industrial circuits with precision. They come with adjustable settings for current rating, allowing engineers to customize protection based on the load requirement.

Another key difference is the mechanism of operation. MCBs typically use thermal or electromagnetic tripping mechanisms, while MCCBs often include more advanced features such as thermal magnetic or electronic trip units, which can offer better precision and performance under extreme conditions.

FAQ Image

Applications of MCBs and MCCBs in Residential and Industrial Settings

When it comes to electrical protection, both MCBs and MCCBs are widely used across residential and industrial settings, albeit for different applications.

In residential settings, MCBs are used extensively to protect circuits from overloads and short circuits. They are ideal for low-power circuits such as lighting circuits, socket circuits, and appliances like refrigerators or air conditioners. The compact size of MCBs allows them to be installed in distribution boards, providing efficient circuit protection while occupying minimal space. They are straightforward to reset once tripped, making them a cost-effective and low-maintenance solution for homes.

In industrial applications, MCCBs are essential for protecting high-power machinery and critical equipment. They are used to safeguard large motors, transformers, and power distribution systems from overloads, short circuits, and other electrical faults. MCCBs offer adjustable protection settings, which is crucial for industries that operate a range of equipment with varying current requirements. Their robust design allows them to handle higher currents, making them indispensable in sectors like manufacturing, utilities, and large-scale operations.

While MCBs are ideal for light-duty use, MCCBs provide heavy-duty protection, ensuring the safety of critical industrial operations.

Overload and Short Circuit Protection: How MCBs and MCCBs Perform

Both MCBs and MCCBs are designed to provide protection against electrical faults such as overload and short circuits. However, they differ in how they handle these faults and the level of protection they offer.

An MCB primarily provides overload protection by utilizing a thermal trip mechanism. When the current exceeds the rated value for a sustained period, the heating effect causes a bimetallic strip inside the MCB to bend, triggering the breaker to trip. This prevents damage to the circuit and connected appliances. In the case of a short circuit, an MCB uses an electromagnetic trip mechanism that reacts almost instantly to interrupt the circuit. The electromagnetic mechanism ensures the MCB trips quickly enough to prevent any catastrophic damage.

On the other hand, MCCBs offer a more sophisticated form of protection. Like MCBs, they provide thermal protection for overloads, but they also offer magnetic protection for short circuits. The magnetic trip unit in MCCBs is more precise and faster, allowing for quicker response times. Additionally, many MCCBs come with adjustable settings that allow you to fine-tune the protection to suit specific loads or equipment. This is especially important in industrial environments where machinery or circuits have varying loads and where a one-size-fits-all solution doesn’t work.

Both devices are essential for protecting electrical circuits, but MCCBs provide more robust protection for industrial and high-power circuits.

How MCBs and MCCBs Perform H2: Selecting the Right Device: Factors to Consider for MCBs and MCCBs

Choosing between an MCB and an MCCB depends on several factors, such as the application, current rating, and environmental considerations.

When selecting an MCB, the first thing to consider is the current rating of the circuit you are protecting. MCBs are ideal for residential and light commercial applications where the load current typically does not exceed 100A. You’ll also want to look at the type of protection the MCB offers, such as thermal and electromagnetic protection, to ensure it matches the circuit requirements. MCBs are also more compact and easier to install, making them a good choice for circuits where space is limited.

In contrast, MCCBs are better suited for high-power applications. When choosing an MCCB, consider the maximum current rating required for the circuit. MCCBs can handle currents ranging from 100A to several thousand amperes, making them suitable for heavy-duty industrial applications. Another factor to keep in mind is the adjustability of the MCCB’s protection settings. In industrial settings, the ability to set the tripping points according to the load is crucial for protecting sensitive equipment.

Other factors to consider include environmental conditions. In harsh conditions with extreme temperatures or moisture, MCCBs are often the better choice due to their more rugged construction and ability to handle a wider range of environmental factors.

Selecting the Right Device: Factors to Consider for MCBs and MCCBs H2: Technological Advancements in MCB and MCCB Designs

Over the years, there have been significant advancements in the design and functionality of MCBs and MCCBs, enhancing their performance, reliability, and ease of use.

For MCBs, recent innovations include digital trip units and smart technology integration. These advancements allow MCBs to provide more precise protection and offer features like remote monitoring. Digital MCBs can communicate with other system components, providing real-time feedback and data analytics, making them ideal for modern smart homes and buildings where automation and control are crucial.

MCCBs have also evolved to include advanced thermal-magnetic trip units, offering better protection against overloads and short circuits. Newer designs come with features like adjustable trip settings, low-voltage tripping, and time-delay adjustments for more customized protection. These features are particularly useful in industries where the load is variable, and precise control is required to prevent unnecessary tripping.

Additionally, both MCBs and MCCBs now feature arc fault protection, which helps prevent electrical fires caused by arcs. This technology is becoming more widespread in modern electrical systems to enhance safety.

Conclusion

In conclusion, understanding the differences between MCBs and MCCBs is essential for selecting the right protection for electrical circuits. While both devices are designed to protect against overloads and short circuits, their applications vary depending on the current rating and the type of system being protected. MCBs are ideal for residential and light commercial applications, while MCCBs are better suited for high-power industrial environments. Choosing the right device ensures electrical safety, efficiency, and long-term reliability. With advancements in technology, both MCBs and MCCBs continue to evolve, offering smarter, more precise protection solutions for modern electrical systems. Understanding their features and applications will help ensure that engineers select the most appropriate protection for any electrical setup.
