Key Takeaway
A dual rail power supply provides both positive and negative voltages along with a ground. It’s essential for many electronic circuits. The positive rail is labeled +Vcc, and the negative rail is -Vcc. These are not connected to the ground, ensuring stable operation. Dual rail power supplies are vital in applications like op-amps, where both positive and negative voltages are needed for proper function. This setup ensures that circuits operate efficiently and reliably, making it a staple in electrical engineering and electronics. Understanding how dual rail power supplies work is crucial for designing effective electronic systems.
Definition and Characteristics
A dual rail power supply is a type of power source that provides two separate voltage outputs. Typically, these voltages are of opposite polarity, such as +12V and -12V. This configuration is essential for various electronic circuits that require both positive and negative voltages to operate correctly.
Dual rail power supplies are known for their ability to stabilize and regulate voltage across components, ensuring consistent performance. They are characterized by having two independent power rails, which helps in minimizing noise and improving the overall reliability of the system. The separation of rails allows for better isolation of different circuit sections, reducing interference and enhancing signal integrity.
Key Components
Understanding the key components of a dual rail power supply is essential for anyone involved in power supply design or troubleshooting. The primary components include transformers, rectifiers, filters, and voltage regulators. Each of these components plays a vital role in converting and stabilizing the input power to ensure consistent and reliable voltage outputs.
Transformers are the first crucial component, used to step down the high voltage AC input to a lower AC voltage suitable for the circuit. This step is essential for protecting the subsequent components from high voltage damage. Following the transformer, rectifiers convert the AC voltage into DC voltage, which is necessary for most electronic circuits.
Filters, typically capacitors, come next in line to smooth out the rectified DC voltage by removing any ripples or fluctuations. This ensures a cleaner DC output, which is crucial for the stability of the connected circuits. Finally, voltage regulators ensure that the output voltages remain stable and within the specified limits, regardless of variations in input voltage or load conditions. Together, these components ensure that the dual rail power supply delivers clean and stable power, essential for the optimal performance of electronic devices.
Advantages and Disadvantages
Dual rail power supplies offer several advantages that make them a preferred choice in many electronic applications. One of the primary benefits is their ability to provide symmetrical voltage outputs, which is crucial for balanced signal processing in analog circuits. This symmetry helps in reducing noise and improving the overall performance of the system, making it ideal for high-precision applications like audio equipment and measurement instruments.
Another significant advantage is the enhanced power distribution, ensuring all components receive a stable and consistent power supply. This stability is particularly important in applications requiring high precision, where fluctuations in power can lead to inaccuracies or malfunctions. However, dual rail power supplies also come with some disadvantages. They are generally more complex and expensive compared to single rail power supplies due to the additional components required. This complexity can lead to increased design and manufacturing costs, which might be a concern for budget-sensitive projects.
Additionally, dual rail power supplies tend to require more space, making them less suitable for compact applications. Despite these drawbacks, the benefits of dual rail power supplies often outweigh the disadvantages, especially in applications where performance and precision are paramount.
Common Applications
Dual rail power supplies are commonly used in a variety of industrial and electronic applications due to their ability to provide stable and precise power. One of the most prevalent applications is in audio amplification, where they ensure high-quality sound reproduction by providing the necessary symmetrical power. The balanced voltage outputs help in minimizing distortion and noise, resulting in clearer and more accurate audio signals, which is crucial for both professional and consumer audio equipment.
Another common application is in analog signal processing equipment, such as oscilloscopes and signal generators. These devices require stable and precise power supplies to accurately capture and generate signals. Dual rail power supplies ensure that the reference voltages remain constant, enabling accurate measurements and signal processing, which is essential in research, development, and diagnostic applications.
Dual rail power supplies are widely used in operational amplifiers, which are essential components in many electronic circuits. The symmetrical power provided by dual rail supplies allows op-amps to function correctly, ensuring proper amplification and signal processing. Overall, the versatility and reliability of dual rail power supplies make them indispensable in a wide range of applications, from consumer electronics to industrial instrumentation.
How to Identify Dual Rail Power Supplies

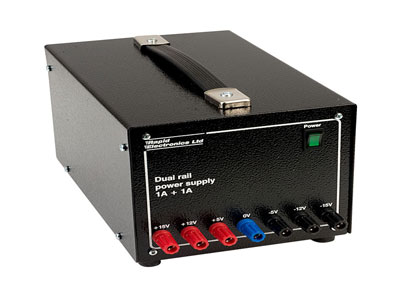

Identifying a dual rail power supply involves checking for several key features to ensure it meets the specific requirements of your application. Firstly, examine the output terminals or connectors. Dual rail power supplies typically have three output terminals: one for the positive voltage (+V), one for the negative voltage (-V), and a common ground (GND). These terminals are usually labeled, making it easy to identify the type of power supply and distinguish it from single rail models.
Another method to identify a dual rail power supply is by checking the specifications on the label or datasheet. Look for indications of multiple output voltages, such as +15V and -15V, which signify a dual rail configuration. The presence of symmetrical voltage outputs is a clear indicator of a dual rail power supply. This information is typically detailed in the product documentation provided by the manufacturer.
Additionally, you can use a multimeter to measure the output voltages. By connecting the multimeter probes to the output terminals, you can verify the presence of both positive and negative voltages relative to the ground. This method provides a straightforward way to confirm the dual rail nature of the power supply. Understanding these identification methods is crucial for engineers and technicians working with power supplies, ensuring they select the appropriate power source for their applications.
Conclusion
Understanding dual rail power supplies is crucial for engineers working in industrial applications. These power supplies provide the necessary balanced voltages for a wide range of electronic components and systems. By stabilizing and regulating voltages, they ensure the reliable and efficient operation of circuits, reducing noise and improving performance.
Key components like transformers, rectifiers, filters, and regulators work together to convert and stabilize input voltage, providing the desired output levels. Despite their complexity and higher cost, the advantages of dual rail power supplies, such as improved signal integrity and versatility, make them indispensable in many industrial settings.
