Key Takeaway

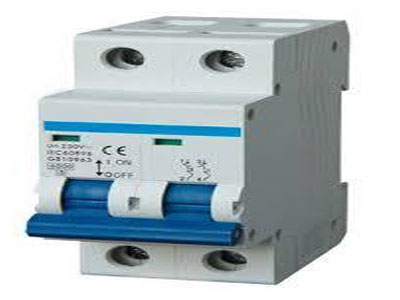

Breaker size refers to the current-carrying capacity of a circuit breaker, which is measured in amperes (A). It indicates the maximum current the breaker can handle without tripping. Choosing the correct breaker size is essential to protect electrical circuits from overloads and short circuits. If the current exceeds the breaker’s capacity, it trips to prevent damage to wires and appliances.
To determine the right breaker size, calculate the total current drawn by all devices on the circuit. For example, add the wattage of all devices and divide by the voltage (e.g., 230V). Select a breaker size slightly higher than the calculated current for safe operation. Common sizes include 10A, 16A, and 32A, depending on the application. Proper breaker sizing ensures safety, prevents frequent tripping, and protects your electrical system.
Understanding the Concept of Breaker Size in Electrical Systems
The breaker size refers to the current rating of the breaker, which indicates the maximum amount of electrical current it can safely carry without tripping. This is essential for protecting the wiring and equipment from potential overloads or short circuits. If the current exceeds the breaker’s rating, the breaker will trip and disconnect the circuit, preventing further damage.
In simple terms, the breaker size is like the “gatekeeper” of an electrical circuit. It ensures that the system does not carry more current than it is designed for, protecting both the components and users from hazardous situations. Overload protection is one of the primary functions of a breaker, as circuits can easily get overloaded due to faulty appliances or short circuits.
Understanding the correct breaker size helps engineers and technicians avoid problems such as insufficient protection, frequent tripping, or inefficiency in electrical systems. Let’s explore the factors influencing the selection of breaker size in the next section.
Factors That Influence the Selection of Breaker Size
Selecting the correct breaker size is not a one-size-fits-all process. There are several factors that engineers need to consider to ensure the breaker is correctly sized for the specific application. Let’s look at the key factors that influence breaker size selection:
1. Current Rating of the Circuit
The most important factor in determining breaker size is the current rating of the circuit. The breaker must be able to handle the maximum current that the circuit is expected to carry during normal operation. This is typically based on the wire size and load requirements of the circuit. For example, circuits with larger wires and equipment need breakers with higher current ratings.
2. Voltage Rating
The voltage rating of the breaker must match the voltage of the electrical system. If the breaker is rated for a lower voltage than the system, it may not be able to handle high voltage situations, leading to malfunction or damage. Ensuring compatibility between the breaker’s voltage rating and the circuit’s voltage is crucial.
3. Type of Load
Different electrical loads—such as resistive loads (e.g., heating elements), inductive loads (e.g., motors), or capacitive loads (e.g., power factor correction devices)—require different breaker sizes. Inductive loads, for example, can cause a higher surge current when starting, which might require a breaker with a higher trip rating to accommodate these spikes without tripping unnecessarily.
4. Short Circuit Protection
The breaker size should also take into account the potential for short circuits. A short circuit can cause an immediate surge of current far beyond the normal operating levels. A breaker needs to be selected to interrupt this excessive current quickly to prevent damage to the system or electrical fire hazards. The breaker size must be based on the maximum prospective short-circuit current the system can experience.
5. Ambient Temperature
The temperature of the environment in which the breaker is installed can affect its performance. Breakers are rated for operation at a standard temperature (usually 25°C), but if the temperature in the area is higher or lower, the breaker may need to be adjusted accordingly. For instance, if the environment is unusually hot, the breaker size might need to be increased to compensate for reduced efficiency in hot conditions.
6. Application Type
The application (residential, commercial, or industrial) also affects the choice of breaker size. Industrial systems often experience high inrush currents and require breakers with specific characteristics like time delay or adjustable trip settings.
Selecting the right breaker size involves understanding the electrical load, system requirements, and potential hazards. Let’s now look at how to determine the correct breaker size for your circuit.
You May Like to Read
How to Determine the Correct Breaker Size for Your Circuit
Determining the correct breaker size is essential for both safety and performance. Here’s a step-by-step guide on how to determine the correct breaker size for your circuit:
1. Know the Total Load
Start by calculating the total electrical load on the circuit. This involves adding up the wattage or amperage of all the devices that will be connected to the circuit. For example, in a residential setting, you might add the amperage ratings of lights, appliances, and outlets. In commercial or industrial applications, the total load may include equipment like machines or HVAC systems.
2. Check the Wire Size
The wire size plays a key role in breaker size selection. Each wire size has a corresponding current-carrying capacity. For instance, 14-gauge wire can safely carry 15 amps, while 12-gauge wire can handle 20 amps. The wire must be capable of handling the load without overheating, and the breaker should be rated to match the wire’s capacity.
3. Consider Circuit Characteristics
For circuits that include equipment with high inrush currents, such as motors or transformers, you may need to use a higher-rated breaker to accommodate the surge of electricity when these devices start up. In these cases, you should also consider the motor’s full-load amperage (FLA) and add a buffer to handle temporary current surges without tripping the breaker.
4. Use the 125% Rule for Continuous Loads
For continuous loads, which are expected to run for three hours or more, the National Electrical Code (NEC) recommends sizing the breaker at 125% of the continuous load current. For example, if a continuous load requires 16 amps, the breaker should be rated for 20 amps (16 x 1.25 = 20 amps).
5. Select the Breaker Type
There are different types of breakers, including standard breakers, GFCI (Ground Fault Circuit Interrupter) breakers, and AFCI (Arc Fault Circuit Interrupter) breakers. The type you choose should match the needs of the circuit. For example, GFCI breakers are required for wet or damp environments to prevent electrical shocks, while AFCI breakers are used to detect and prevent electrical arcs.
By following these steps, you can determine the appropriate breaker size for your circuit, ensuring the system remains protected from overcurrent and short circuit conditions.
Differences Between Breaker Sizes for Residential and Industrial Applications
When selecting breaker sizes, the requirements for residential and industrial applications can differ significantly due to the varying loads, voltage levels, and environmental factors in each setting.
1. Residential Applications
In residential settings, the electrical circuits generally have lower loads compared to industrial systems. The breakers are often single-pole breakers rated for 120V circuits, designed to protect typical household appliances, lighting, and outlets. In residential systems, the standard size for circuits running lights, outlets, and small appliances is typically 15 or 20 amps. For larger appliances like ovens and air conditioning units, 30-50 amp breakers may be used.
The key consideration for residential circuits is to ensure that the breaker size matches the wire gauge and the appliances or devices on the circuit. The National Electrical Code (NEC) provides guidelines for residential breaker sizing based on the expected loads, making it easier for electricians to determine the appropriate size for safety and efficiency.
2. Industrial Applications
Industrial applications, on the other hand, tend to deal with higher loads and more complex electrical systems. Three-phase systems are common in industrial environments, requiring three-pole breakers that can handle larger current capacities—often ranging from 30 amps to several thousand amps. Breakers for industrial applications also need to account for high inrush currents associated with large motors and machinery, which may require breakers with time delay features to prevent false trips.
Additionally, industrial breakers must meet stringent safety standards and are often equipped with features like adjustable trip settings, overload protection, and short-circuit fault protection. In environments with higher risks of short circuits or other electrical faults, specialized arc fault circuit interrupters (AFCIs) or ground fault circuit interrupters (GFCIs) may be required.
3. Key Differences
The main differences between residential and industrial breakers are in their size, complexity, and features. Residential breakers are typically smaller, simpler, and more focused on basic protection. In contrast, industrial breakers need to accommodate larger loads, handle high inrush currents, and provide greater flexibility in settings that demand customized protection settings.
Importance of Breaker Sizing in Ensuring Electrical Safety
Correct breaker sizing is crucial in ensuring both the safety and efficiency of electrical systems. A breaker that is too large will not trip during an overload, which can lead to damaged wires, fires, or other hazards. Conversely, a breaker that is too small may trip unnecessarily, interrupting the flow of electricity and causing downtime or equipment failure. Here’s why breaker sizing is so important:
1. Protecting Against Overloads
One of the primary functions of a breaker is to prevent overloads. If the circuit draws more current than it is designed to handle, the breaker will trip, disconnecting the load. By selecting the correct breaker size, you ensure that the system is protected from overload conditions without causing unnecessary shutdowns.
2. Preventing Short Circuit Damage
Correct breaker sizing also plays a crucial role in protecting the system from short circuits. Short circuits can lead to massive current surges, potentially causing damage to equipment, fires, or electrical shocks. A properly sized breaker ensures that the circuit will be disconnected before any damage can occur.
3. Ensuring System Efficiency
Breaker sizing is not only about protection but also about maintaining efficiency. When a breaker is correctly sized for the load, the system will operate efficiently, reducing energy loss and improving the overall performance of the electrical installation.
By ensuring that the breaker is correctly sized for the circuit, engineers and electricians ensure safe operation, prevent damage to electrical components, and help maintain the integrity of the electrical system.
Conclusion
In conclusion, selecting the right breaker size is essential for the protection, safety, and efficiency of electrical systems. Whether for residential or industrial applications, breaker sizing ensures that electrical circuits remain safe from overloads and short circuits while maintaining smooth and efficient operations. Proper breaker selection is not just a matter of choosing a number; it requires careful consideration of factors like load, current ratings, and environmental conditions.
By adhering to proper breaker sizing practices, engineers can enhance system performance and avoid costly repairs, all while maintaining a safe electrical environment.
