Key Takeaway

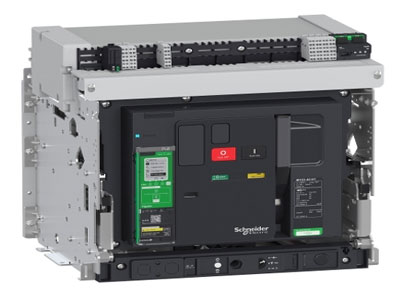

An ACB (Air Circuit Breaker) is an electrical device used to protect circuits from overcurrent and short circuits. It works by using air as an arc quenching medium. When there is a fault, the ACB quickly disconnects the electrical supply to prevent damage to the system.
ACBs are typically used in low-voltage systems and are ideal for applications where large currents need to be controlled. They are commonly found in industrial settings, substations, and electrical panels. The main advantage of an ACB is its ability to handle high current ratings, ensuring safety and preventing equipment damage.
Definition and Purpose of Air Circuit Breakers (ACB)
An Air Circuit Breaker (ACB) is a type of circuit breaker that uses air to extinguish the electric arc formed when a fault occurs, such as an overload or short circuit. ACBs are typically used in medium to high-voltage systems, offering a cost-effective and reliable solution for circuit protection. The primary purpose of an ACB is to interrupt the current flow in the event of an overcurrent, which could be dangerous to the electrical system and connected devices.
The operation of an ACB involves the creation of a magnetic field that opens the contacts when a fault is detected. As the contacts separate, an arc is formed, which is then cooled and extinguished by the air in the breaker. This process ensures that the circuit is safely disconnected from the power supply without causing significant damage.
ACBs are widely used in industrial settings, where high power and frequent switching are required. They provide essential protection to transformers, motors, and generators, ensuring the electrical system remains stable and safe.
Key Components and Working Mechanism of ACB
Understanding the components and working mechanism of an Air Circuit Breaker (ACB) is crucial for selecting the right breaker for your system. ACBs are made up of several important components that work together to detect faults and disconnect the circuit when necessary.
Key Components of ACB:
Contacts: The main parts that open and close to interrupt the current flow. When a fault is detected, the contacts open, and an electric arc forms between them.
Arc Chutes: These are specially designed chambers that cool and extinguish the electric arc generated when the contacts separate. Air is forced into these chambers to rapidly cool the arc and reduce its energy, ensuring it doesn’t cause damage.
Operating Mechanism: The mechanism that controls the opening and closing of the breaker. It typically uses a spring-loaded mechanism that is triggered by an overcurrent or fault signal.
Trip Unit: The trip unit is the brain of the ACB. It senses faults and triggers the operating mechanism to open the contacts. The trip unit can be set to different thresholds for overcurrent and short circuit protection.
Busbars and Terminal Blocks: These are the components that connect the ACB to the electrical system, allowing current to flow through the breaker.
Working Mechanism:
When a fault, such as an overload or short circuit, occurs, the trip unit senses the anomaly. The trip signal activates the operating mechanism, which opens the contacts. As the contacts separate, the arc chute uses air to cool and extinguish the electric arc, safely disconnecting the faulty circuit. This action ensures that no further damage occurs to the system or the equipment.
The speed of response and arc quenching ability of ACBs make them ideal for high-voltage applications, where precise control over the electrical flow is essential.
You May Like to Read
Applications of ACB in High-Voltage and Industrial Systems
Air Circuit Breakers (ACBs) are designed to be used in high-voltage and industrial systems, where robust protection against overcurrent and short-circuit conditions is essential. These systems often handle large amounts of electrical energy, making ACBs the ideal solution for maintaining the safety and operational efficiency of such environments.
1. Power Distribution Systems:
ACBs are widely used in power distribution boards for medium and high-voltage applications. In these systems, ACBs provide circuit protection for transformers, generators, and motors, which are critical components in power plants and substations. ACBs effectively protect these systems from electrical faults that could otherwise lead to extensive damage and downtime.
2. Industrial Electrical Installations:
ACBs are used in various industrial settings, including manufacturing plants, steel mills, and chemical processing plants. These environments require reliable circuit breakers that can handle the fluctuating loads and high power demands of large machinery. ACBs offer reliable protection against short circuits, overloads, and ground faults, ensuring the smooth operation of industrial equipment.
3. Motor Protection:
ACBs are commonly used in motor control centers (MCC), where they protect electric motors from the effects of overcurrent, overload, or phase loss. Motors are essential in industries like mining, textile manufacturing, and oil and gas. ACBs prevent motor damage by disconnecting the power supply when any fault is detected.
4. Substations and Switching Stations:
In substations, where large electrical currents are distributed across various lines and equipment, ACBs act as the primary protection mechanism. They ensure that faults do not propagate across the system and cause widespread damage.
These high-voltage applications require ACBs due to their ability to interrupt large currents and provide quick and efficient protection to the system.
Advantages of Using ACB Over Other Circuit Breakers
When it comes to choosing the right circuit protection device, Air Circuit Breakers (ACBs) offer several advantages over other types of breakers, such as MCCBs (Molded Case Circuit Breakers) or MCBs (Miniature Circuit Breakers). Understanding these advantages can help industries select the best protection mechanism for their electrical systems.
1. High Interrupting Capacity:
ACBs are designed to handle high current interruptions, making them ideal for high-voltage applications. Their ability to interrupt large currents during fault conditions, such as short circuits, sets them apart from other circuit breakers that may not be able to handle these levels of energy efficiently.
2. Fast Response Time:
ACBs offer rapid response times to electrical faults. As soon as a fault is detected, the breaker activates and opens the contacts, quickly disconnecting the faulty circuit. This quick action helps to reduce the risk of damage to electrical equipment and minimizes the potential for electrical fires.
3. Durability and Longevity:
ACBs are known for their long service life and durability, especially in high-power environments. Their ability to withstand frequent switching operations makes them ideal for industrial use, where electrical circuits are constantly subjected to load changes and switching operations.
4. Adjustable Trip Settings:
Unlike other breakers, ACBs often come with adjustable trip settings for overload and short circuit protection. This flexibility allows engineers to tailor the ACB’s protection to suit specific application needs, providing better customization and reliability.
5. Cost-Effectiveness:
For applications that require high interrupting capacity but still need a cost-effective solution, ACBs are often the preferred choice. Their low maintenance cost and efficient performance make them a budget-friendly option for protecting high-voltage systems.
These advantages make ACBs an ideal choice for industrial plants, power stations, and heavy-duty electrical systems that demand reliable and efficient circuit protection.
Maintenance and Safety Tips for Air Circuit Breakers
Proper maintenance is essential for ensuring the longevity and reliability of Air Circuit Breakers (ACBs). As ACBs operate in high-voltage environments, regular maintenance is crucial to avoid unexpected breakdowns or faults. Below are key maintenance and safety tips for ensuring the optimal performance of ACBs.
1. Regular Inspection:
ACBs should be inspected periodically to check for wear and tear. Ensure that the contacts are clean and free from any corrosion or damage, as these can affect the breaker’s performance. A visual inspection of the arc chutes and operating mechanism can also help identify any issues early.
2. Cleaning and Lubrication:
To ensure smooth operation, the mechanism of the ACB should be regularly lubricated. Cleaning the contacts and arc chambers is essential to remove dirt and debris, which can impede their functionality and increase the risk of failure.
3. Test Trip Mechanism:
It is important to test the trip unit and the entire operating mechanism at regular intervals. By doing so, you can verify that the ACB will perform as expected during fault conditions. Testing should be done under both normal and fault conditions.
4. Check the Air Pressure:
Since ACBs rely on air to quench the arc, ensuring the correct air pressure is maintained in the breaker is essential. Low air pressure can reduce the breaker’s efficiency in quenching the arc and lead to delayed interruption of the circuit.
5. Safety Precautions:
When maintaining or servicing an ACB, always ensure that the system is de-energized to prevent electric shock or injury. Follow standard safety protocols and wear appropriate personal protective equipment (PPE) to safeguard against electrical hazards.
By following these maintenance tips and ensuring that ACBs are regularly serviced, you can ensure that your circuit breakers operate safely and effectively over the long term.
Conclusion
In conclusion, Air Circuit Breakers (ACBs) play a pivotal role in protecting electrical systems, especially in high-voltage and industrial applications. Their ability to handle high currents, provide fast fault detection, and offer durable protection makes them ideal for critical environments. Regular maintenance is essential for ensuring that ACBs continue to operate reliably and efficiently. By understanding their components, working mechanisms, and best practices, industries can better safeguard their equipment and improve the overall safety and performance of their electrical systems.
