Key Takeaway

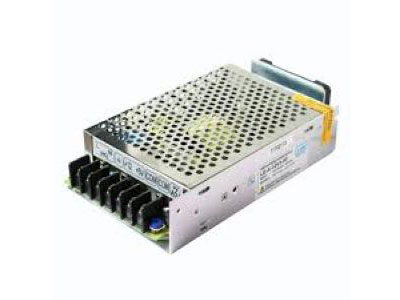

An SMPS (Switched-Mode Power Supply) is a type of power supply that efficiently converts electrical power. Unlike traditional power supplies, SMPS uses high-frequency switching regulators to provide the desired output voltage and current. This technology makes SMPS more efficient, smaller, and lighter. They are widely used in computers, televisions, and industrial equipment because they offer better efficiency and performance. SMPS reduces energy consumption and heat generation, making them ideal for modern electronic applications.
Definition and Working Principle
A Switched-Mode Power Supply (SMPS) is an electronic power supply that efficiently converts electrical power. Unlike traditional linear power supplies, SMPS uses switching regulators to convert electrical power more efficiently. The core principle involves switching devices on and off at high frequencies, which minimizes energy loss and improves efficiency.
In an SMPS, the input voltage is first rectified and filtered to produce a high-voltage DC. This DC voltage is then switched on and off rapidly by a transistor, creating a pulsating waveform. This pulsating DC is then passed through a transformer, which steps it down (or up) to the desired voltage level. Finally, it is rectified again and filtered to provide a stable DC output. The key advantage of this process is the high efficiency and compact size of the SMPS compared to linear power supplies.
Key Components of SMPS
Rectifier: Converts AC input to DC. This conversion is crucial for the operation of most electronic devices, which require a steady DC supply.
Filter: Smoothens the rectified DC. It reduces fluctuations and ripples in the DC output, ensuring a clean and stable voltage for further processing.
Switching Device: Usually a transistor that turns on and off rapidly. This switching action converts the DC voltage into a high-frequency AC signal, enhancing efficiency and reducing the size of the components.
Transformer: Steps voltage up or down and provides isolation. Operating at high frequencies, it allows for smaller and lighter designs, crucial for compact and efficient power supplies.
Output Rectifier and Filter: Convert and smooth the transformed voltage to a stable DC output. This ensures the final DC output is clean, stable, and suitable for powering sensitive electronic devices.
Control Circuit: Regulates the switching frequency and maintains the output voltage. It adjusts the operation of the switching device, ensuring consistent performance and efficient power conversion.
These components work together to ensure the SMPS operates efficiently and provides a stable output voltage. The switching device and control circuit are particularly critical as they determine the performance and efficiency of the power supply.
Advantages of SMPS Over Linear Power Supply
In the realm of industrial applications, the Switch Mode Power Supply (SMPS) offers significant advantages over traditional linear power supplies. The first notable advantage is its higher efficiency. SMPS typically achieves efficiencies of 80-90% or more, while linear power supplies often hover around 50-60%. This high efficiency means less energy is wasted as heat, resulting in a cooler operation, which in turn reduces the need for large, bulky heat sinks. This makes SMPS not only more energy-efficient but also more compact and lightweight, which is a critical factor in modern, space-constrained applications.
Another key advantage is the wide input voltage range that SMPS can handle. Unlike linear power supplies that may struggle with varying input voltages, SMPS can operate effectively over a broad range without significant performance changes. This versatility makes SMPS ideal for industrial environments where power conditions can fluctuate. Additionally, SMPS can provide multiple output voltages, making it adaptable to a variety of applications, further enhancing its utility in industrial settings.
These advantages make SMPS the preferred choice in many modern electronic devices and industrial applications, providing reliable and efficient power solutions. The combination of higher efficiency, compact size, and versatility positions SMPS as a superior option for powering today’s advanced technologies.
Common Applications of SMPS
Switch Mode Power Supplies (SMPS) are prevalent across various applications due to their efficiency and adaptability. In the computer and laptop industry, SMPS ensures stable power to sensitive electronic components, safeguarding them from fluctuations and potential damage. This stability is crucial in maintaining the performance and longevity of computers and other electronic devices.
In telecommunications, SMPS powers essential equipment like routers and switches, ensuring reliable communication networks. This reliability is vital for uninterrupted data transmission and connectivity, which are the backbones of modern communication systems. Industrial automation also benefits from SMPS, as it supplies power to control systems, sensors, and actuators, ensuring smooth and efficient operation of industrial processes.
Consumer electronics, including TVs and gaming consoles, rely on SMPS for consistent and efficient power delivery. In the medical field, SMPS plays a critical role by providing stable and reliable power to life-critical devices, ensuring their optimal operation. Battery chargers for various devices, including electric vehicles, also utilize SMPS for efficient charging.
The widespread use of SMPS in these applications underscores its importance in modern technology. Its ability to deliver efficient, reliable, and stable power makes it an indispensable component in both everyday consumer electronics and critical industrial applications.
Types of SMPS Configurations
Switch Mode Power Supplies (SMPS) come in various configurations, each tailored for specific applications. One common type is the AC-DC converter, which converts AC mains power to a stable DC output. This configuration is widely used in household electronics, providing a reliable power source for devices like computers and televisions.
Another type is the DC-DC converter, which changes one DC voltage level to another. This is particularly useful in battery-powered devices and portable electronics where different components require different voltage levels. The forward converter, on the other hand, uses a transformer to transfer energy to the output, making it suitable for medium-power applications.
The flyback converter is designed for low-power applications. It stores energy in a transformer during the switch-on phase and releases it during the switch-off phase, providing a compact and efficient power solution. For applications requiring a higher voltage from a lower input, the boost converter steps up the input voltage to a higher level. Conversely, the buck converter steps down the input voltage to a lower level, commonly used in power supplies for microprocessors and other low-voltage devices.
Each configuration offers unique advantages, allowing engineers to select the most appropriate type based on the specific requirements of their application. This flexibility makes SMPS an essential component in a wide range of electronic and industrial applications.
Conclusion
Understanding SMPS power supplies is crucial for anyone involved in electronics or industrial automation. Their high efficiency, compact size, and versatility make them indispensable in modern technology. By grasping the working principles, components, advantages, applications, and configurations of SMPS, engineers can effectively select and utilize these power supplies in various applications, ensuring reliable and efficient performance.
This comprehensive overview should provide a solid foundation for newly joined engineers to appreciate the significance and functionality of SMPS in their industry.
