Key Takeaway

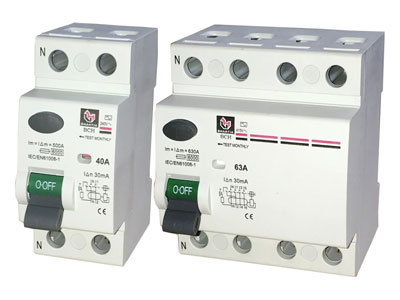

An RCCB (Residual Current Circuit Breaker) is used to protect people from electrical shocks and prevent damage caused by leakage currents. It works by detecting any imbalance between the live and neutral wires. If there’s a leakage, the RCCB immediately trips and cuts off the power, reducing the risk of electrocution or fire.
RCCBs are commonly used in homes, offices, and industries to enhance safety. They are especially important in areas with high moisture, like bathrooms or kitchens, where the risk of leakage is higher. Unlike an MCB, an RCCB doesn’t protect against overloads or short circuits—it focuses purely on leakage protection, making it an essential component for personal safety in electrical systems.
Understanding the Core Functionality of RCCBs
The primary role of an RCCB is to protect people from electric shocks and prevent damage to electrical systems by detecting earth leakage currents. But what does this mean in simple terms? Earth leakage occurs when electrical current flows into the ground instead of following its intended path through the wiring system. This can happen due to insulation failure, damaged wires, or faulty equipment.
An RCCB works by continuously comparing the current flowing through the live and neutral conductors. Under normal circumstances, the amount of current flowing through both should be equal. If there’s a difference—indicating that some current is flowing through the earth instead of the system—the RCCB will quickly disconnect the circuit to prevent potential harm.
This mechanism is vital for ensuring safety in environments where humans may come into contact with faulty equipment or exposed wires. The RCCB is designed to detect small residual currents—often in the range of 30mA or less—that could lead to severe electric shocks, and act quickly to stop the current flow.
Key Applications of RCCBs in Residential and Commercial Settings
RCCBs are used across a wide range of settings, from residential homes to commercial buildings, due to their ability to prevent electric shocks and minimize electrical hazards. In residential settings, RCCBs are typically installed in the main distribution board to protect the entire household’s electrical system. This ensures that any leakage current, no matter how small, will be detected and stopped before it can cause injury.
In commercial applications, where electrical equipment is often more complex and the stakes are higher, RCCBs are used not only in the main electrical panel but also as part of specific equipment or machinery installations. They’re essential for preventing accidents in environments like workshops, factories, or offices where large electrical machines, high-power circuits, and sensitive equipment are in operation.
For example, an RCCB would be used in a washing machine, electric shower, or power tools. These devices are especially vulnerable to earth leakage due to wear and tear or improper installation, and the RCCB ensures the safety of users by cutting off the power when leakage is detected.
In industrial setups, RCCBs are crucial for providing protection in case of insulation failure in large motors, distribution boards, and even control systems. Given the heavy use of electrical devices and machinery in these settings, the risk of electric shocks increases, making RCCBs indispensable for safety.
You May Like to Read
How RCCBs Protect Against Earth Leakage and Electric Shocks
Earth leakage currents can occur due to a variety of reasons, such as damaged cables, faulty appliances, or wet conditions in outdoor wiring installations. When such leakage happens, the current might flow to the ground, posing a significant risk to anyone coming into contact with exposed parts of the electrical system.
An RCCB is specifically designed to detect these leakage currents and protect individuals from electric shocks. When an RCCB senses an imbalance in the current between the live and neutral conductors, it trips within milliseconds. This quick response time is crucial, as it can save lives by disconnecting the power supply before the leakage current reaches dangerous levels.
In terms of protection, the RCCB is particularly useful in areas where humans are at a higher risk of contact with electrical systems, such as bathrooms, kitchens, and outdoor installations. These environments often present higher risks due to the presence of moisture, which can cause insulation failure and increase the chances of leakage currents.
Furthermore, RCCBs are critical in environments where sensitive equipment operates. By preventing leakage currents from flowing into the ground, RCCBs safeguard both human health and the integrity of electrical devices.
Differences Between RCCBs and Other Circuit Protection Devices
While RCCBs are focused on earth leakage protection, it’s important to understand how they differ from other common circuit protection devices, such as MCBs (Miniature Circuit Breakers) and RCBOs (Residual Current Circuit Breaker with Overload protection).
An MCB is designed to protect circuits from overcurrent conditions—either from overload or short circuits. It works by sensing the amount of current flowing through the circuit and tripping if the current exceeds a preset value, thereby preventing damage to wires and devices.
On the other hand, an RCBO is a more advanced device that combines the functions of an RCCB and an MCB. It not only protects against earth leakage but also provides overload protection. This means that in systems where both overcurrent and earth leakage protection are needed, an RCBO would be the ideal choice.
So, while RCCBs are exclusively used to protect against earth leakage, MCBs focus on overcurrent protection, and RCBOs provide both. Therefore, it’s crucial to understand the specific needs of your electrical system to choose the right protection device. For instance, if you’re only concerned about earth leakage and not overloads, an RCCB is sufficient. But if both types of protection are needed, an RCBO might be the better solution.
Factors to Consider When Installing an RCCB
When it comes to installing an RCCB, several factors need to be taken into consideration to ensure it operates effectively and safely. The first thing to look at is the rated current of the RCCB, which should match the current rating of the circuit it is protecting. This ensures that the device is capable of handling the typical current load without tripping unnecessarily.
Next, consider the sensitivity of the RCCB. Most RCCBs are designed to detect leakage currents of 30mA, which is considered safe for human protection. However, for some applications, such as in industrial settings where large machines are involved, you may need RCCBs with different sensitivity ratings. It’s crucial to select the appropriate sensitivity to avoid both nuisance trips and missed faults.
Another important consideration is the installation location. RCCBs should be installed in a dry, ventilated area, away from moisture and dust, as these conditions can affect their performance. Furthermore, they must be easily accessible for maintenance and testing.
Finally, RCCBs must be regularly tested to ensure they are functioning correctly. Most RCCBs come with a test button that allows you to check whether the device is working as expected. Regular testing is crucial in ensuring that the RCCB will trip when necessary and provide the protection needed.
Conclusion
In conclusion, RCCBs are essential safety devices in electrical systems, offering protection against earth leakage and preventing electric shocks. By detecting imbalances in the current flowing through a circuit, RCCBs help ensure the safety of both individuals and electrical equipment. Whether you’re working in a residential or industrial setting, understanding how to use and install RCCBs is vital for safeguarding electrical systems.
By choosing the right RCCB for your application and considering factors such as sensitivity, current rating, and installation conditions, you can ensure that your electrical system is well-protected from hazards. Ultimately, RCCBs play a crucial role in preventing electrical accidents and ensuring that power systems remain safe and reliable.
