Key Takeaway

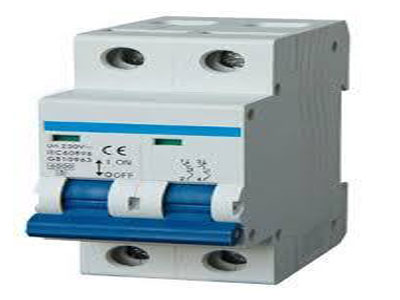

An MCB, or Miniature Circuit Breaker, is a safety device designed to protect electrical circuits from overloads and short circuits. It automatically cuts off the power supply when it detects excess current, preventing damage to appliances and wiring. Unlike traditional fuses, MCBs can be reset after tripping, making them more convenient and reliable.
MCBs come in different types based on their trip curves, such as Type B, Type C, and Type D, each suited for specific applications. They are widely used in homes, offices, and industrial setups to ensure electrical safety. By interrupting faulty circuits, MCBs reduce the risk of fires and electrical hazards, making them an essential component in modern electrical systems.
The Role of MCBs in Modern Electrical Systems
Today’s electrical systems are far more advanced than ever before. As engineers, we’re dealing with high-powered machinery, sensitive electronics, and a growing need for reliable electrical infrastructure. MCBs play an essential role in this complex landscape. They act as a safeguard against electrical faults, like overloads or short circuits, which can cause severe damage to appliances or even result in fires.
One of the main roles of an MCB is to protect against overcurrent—when too much current flows through a circuit. This can happen due to issues like damaged wiring or excessive load. MCBs are specifically designed to trip, or shut off the circuit, when the current exceeds a safe limit. This prevents further damage to the system and any connected devices.
In residential settings, MCBs are used to protect circuits in kitchens, living rooms, and other areas where electrical devices are in use. They are found in distribution boards, where they divide the power supply into separate circuits. In industrial settings, MCBs can be used to protect sensitive machinery and equipment, ensuring smooth and safe operations.
A Historical Perspective: Evolution of Circuit Protection
The journey of circuit protection devices started in the early 19th century, but it wasn’t until the mid-20th century that the Miniature Circuit Breaker (MCB) came into widespread use. Before MCBs, fuses were the go-to protection devices. Fuses were simple, but they had limitations. For instance, once a fuse blew, it had to be replaced, which caused delays and extra costs.
The invention of the MCB, which was more efficient and reusable, marked a major turning point. It was first introduced to offer a faster and more reliable way of protecting electrical circuits. Unlike fuses, MCBs could be reset after they tripped, which significantly reduced maintenance and downtime. Over the years, MCBs became increasingly popular due to their reliability, ease of use, and cost-effectiveness.
As technology progressed, MCBs evolved too. Early MCBs were basic, but newer models feature advanced trip mechanisms, digital diagnostics, and various current ratings. These advancements have helped MCBs adapt to the needs of modern electrical systems, whether it’s for home use or complex industrial applications.
You May Like to Read
Evolution of Circuit Protection H2: The Science Behind MCB Operation
Understanding how an MCB works requires a bit of electrical science. An MCB operates based on the principle of electromagnetic and thermal trip mechanisms. When a current exceeds a preset value, the breaker is designed to “trip” or open the circuit, effectively stopping the flow of electricity.
The electromagnetic mechanism responds quickly to short circuits. It has an electromagnet that gets activated when a high current flows through the circuit. The force from the electromagnet moves a lever that trips the breaker. This mechanism reacts rapidly, making it perfect for preventing damage from short circuits.
On the other hand, the thermal mechanism is designed to protect against overloads. When the current exceeds the safe limit over a longer period, it heats up a bimetallic strip inside the MCB. As the strip bends due to the heat, it triggers the trip action. This mechanism works slower than the electromagnetic one but is essential for protecting against sustained overloads.
Together, these mechanisms ensure that the MCB effectively responds to a variety of electrical faults. Whether it’s an instantaneous short circuit or a prolonged overload, the MCB steps in to protect the system.
The Science Behind MCB Operation H2: Environmental and Economic Benefits of MCBs
In addition to providing safety, MCBs offer several environmental and economic benefits, which have made them a preferred choice over fuses in modern electrical installations.
First, MCBs are environmentally friendly because they can be reused. Unlike fuses, which need to be replaced each time they blow, MCBs can be reset after tripping. This reduces waste and the need for constant replacements, helping to conserve resources. Over time, this reusability leads to lower material waste, making MCBs an eco-conscious choice.
Economically, MCBs are cost-effective in the long term. While the initial cost of installing an MCB might be higher compared to fuses, the ability to reset an MCB means you save money on replacements. In addition, the protection MCBs provide reduces the risk of damage to expensive electrical appliances and systems. This helps avoid costly repairs and downtime in both residential and industrial settings.
MCBs also improve operational efficiency. By reducing the risk of electrical faults and ensuring the smooth operation of electrical systems, they help businesses minimize disruptions and maximize productivity. In turn, this leads to greater cost savings and better overall economic performance.
Environmental and Economic Benefits of MCBs H2: Regulatory Standards and Certifications for MCBs
Like all electrical components, MCBs must meet certain regulatory standards to ensure safety and reliability. These standards are established by various global organizations, including the International Electrotechnical Commission (IEC), the American National Standards Institute (ANSI), and other national regulatory bodies.
In many countries, MCBs must comply with IEC 60898 or IEC 60947 standards. These standards set guidelines for the design, construction, and testing of MCBs. Compliance ensures that MCBs perform reliably under different conditions and meet safety requirements. For example, the MCB must function effectively in both overload and short-circuit situations, providing protection for the electrical circuit and preventing fires or other hazards.
Certifications from recognized bodies also provide users with confidence in the product’s quality. An MCB that meets these standards is more likely to offer long-term reliability and safety. This makes the regulatory certification of MCBs an essential aspect of their acceptance in the market. Electrical engineers and technicians rely on these certifications to select the right MCB for each application.
Conclusion
In conclusion, MCBs have played a pivotal role in transforming electrical safety. From their ability to protect circuits from overcurrent and short circuits to their long-lasting, environmentally friendly design, MCBs have become a cornerstone of modern electrical systems. Their evolution, from simple fuses to advanced circuit breakers with electromagnetic and thermal mechanisms, reflects how technology has advanced to meet the needs of the industry. Whether for homes, businesses, or industrial settings, MCBs provide an effective, cost-efficient, and reliable solution for protecting electrical circuits. By meeting rigorous regulatory standards, MCBs continue to ensure the safety and functionality of electrical systems worldwide.
