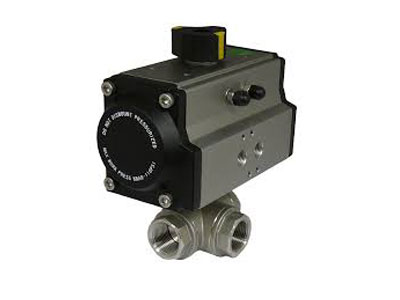

What Is A 3-Way Flow Control Valve?

Key Takeaway

A 3-way flow control valve is a type of valve that can direct fluid flow in multiple directions, typically featuring three ports. It is used to mix or divert flow in a system, providing versatile flow control capabilities.

3-way flow control valves are commonly used in HVAC systems, hydraulic circuits, and process control applications. Their ability to manage flow in multiple directions makes them ideal for complex systems requiring flexible flow control solutions.

Understanding 3-Way Flow Control Valves

3-way flow control valves are designed to regulate the flow of fluid or gas in three different directions, providing versatile control in complex systems. These valves are commonly used in applications requiring mixing or diverting flow paths.

Understanding the operation and applications of 3-way flow control valves is essential for selecting the right valve for specific needs. Their ability to provide precise flow regulation makes them ideal for systems requiring flexible flow management.

Advanced 3-way flow control valves often include features such as adjustable ratio control and pressure compensation. These features ensure maintained flow ratios regardless of pressure variations in the system.

Key Features and Benefits

3 Way Flow Control valves (CVs) offer versatile features, such as automatic operation, which adjusts flow rates based on real-time data from sensors, ensuring system stability. Their precision control enables them to handle fluctuating system conditions, maintaining optimal pressure and flow, especially in complex processes.

One major benefit is their energy efficiency, as they reduce unnecessary energy loss by maintaining desired flow rates. CVs also enhance safety and system protection by preventing pressure surges and equipment damage. These features make them indispensable in industries like oil and gas, power generation, and pharmaceuticals.

Applications in Various Systems

Below are some of the major applications of FCVs across various industries:

1. Water and Wastewater Treatment: In the water and wastewater treatment industry, FCVs regulate the flow of water through filtration units, chemical dosing systems, and pumps. By maintaining consistent flow rates, FCVs ensure that treatment processes, such as sedimentation, filtration, and disinfection, occur effectively. In wastewater treatment, these valves control the flow of sewage, helping to optimize aeration and biological treatment stages. This regulation helps prevent blockages, maintain system pressure, and reduce energy consumption, making the treatment process more efficient.

2. Chemical and Petrochemical Processing: In chemical plants, FCVs are used to control the flow of raw materials, reagents, and products through various process stages. These valves ensure that the correct amount of substances is added to reactors or mixing tanks, preventing overflows or underflows that could disrupt chemical reactions or reduce the quality of the final product. FCVs also regulate pressure and temperature within reactors, helping maintain the safety of the process and optimizing yield. Moreover, in the petrochemical industry, these valves regulate the flow of fluids in refining operations, such as the distillation of crude oil or the transfer of liquefied natural gas (LNG).

3. Oil and Gas Industry: FCVs are crucial in the oil and gas industry, where they are used to regulate the flow of crude oil, natural gas, and other fluids across pipelines, refineries, and drilling platforms. In pipelines, FCVs help control the flow of oil and gas, ensuring that pressure levels are maintained within safe limits to prevent leaks, spills, or ruptures. These valves are also used to adjust flow rates in various stages of refining, including distillation and separation processes, to optimize the extraction of valuable byproducts and minimize energy use.

4. HVAC and Building Systems: In HVAC (Heating, Ventilation, and Air Conditioning) systems, FCVs are used to control the flow of water or air to maintain the desired temperature and humidity levels in buildings.

Installation and Maintenance Guidelines

When installing a 3-way flow control valve, correct sizing is crucial to ensure optimal performance. The valve should be chosen based on factors such as flow rate, pressure, and the type of fluid or gas in the system. An improperly sized valve can lead to inefficiency or damage. Next, ensure that the valve is installed with the correct orientation. 3-way flow control valves usually have an inlet and two outlets, and the flow direction must align with the valve body markings. This alignment ensures that fluid flows correctly through the valve. Installing the valve in a straight section of the pipeline, away from bends or elbows, is essential to minimize turbulence and pressure drops. Proper sealing is also critical, so use the recommended seals and gaskets to prevent leaks. Misalignment or stress at the connection points should be avoided to prevent damage over time.

Regular maintenance is vital to keep the 3-way flow control valve in peak condition. Inspect the valve periodically for wear, corrosion, or leakage. If the valve operates in harsh environments or with abrasive fluids, consider using corrosion-resistant materials to extend its lifespan. Verify that the actuator and control mechanisms are functioning smoothly, as any malfunction can hinder performance. Clean the valve regularly to prevent the build-up of debris or contaminants that can affect its operation. Flushing the valve with clean fluid can help remove any particles from the system. If any part of the valve shows signs of malfunction, immediate repair or replacement is necessary to avoid system disruption.

By following proper installation and maintenance practices, 3-way flow control valves can maintain optimal performance, enhancing system efficiency and reducing downtime. Regular checks and proper care will ensure the longevity and reliability of the valve, which is essential for smooth operation in industrial applications.

Troubleshooting Common Issues

Three-way flow control valves (FCVs) are versatile components, but operational issues can arise over time. One common problem is improper flow direction, which often results from incorrect installation. Ensure the valve is installed with the flow ports aligned to the system’s requirements.

Sticking or sluggish operation can occur due to debris or lack of lubrication. Disassemble and clean the valve to remove contaminants, and apply appropriate lubrication to moving parts. If the problem persists, check for worn seals or damaged components and replace them as necessary.

Another frequent issue is inconsistent flow regulation. This may result from improper valve sizing or fluctuating system conditions. Verify that the valve is appropriate for the application and inspect the actuator for malfunctions. Regular monitoring and proactive maintenance are key to preventing recurring problems and ensuring reliable valve operation.

Conclusion

A 3-way flow control valve is designed to regulate the flow of fluid or gas in three different directions, providing versatile control in complex systems. These valves are commonly used in applications requiring mixing or diverting flow paths.
