Key Takeaway

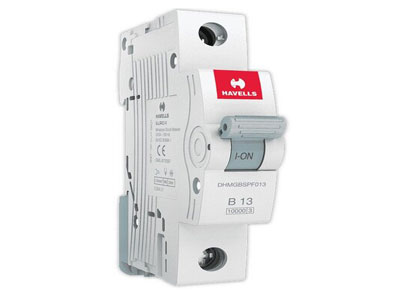

The number 10000 in MCB (Miniature Circuit Breaker) refers to its breaking capacity, measured in amperes. It indicates the maximum fault current the MCB can safely interrupt without being damaged. For example, an MCB with a 10000 rating can handle up to 10,000A of fault current during a short circuit.
This value is crucial for ensuring the MCB is suitable for the electrical system it’s protecting. In residential setups, lower ratings like 6000A are common, while 10000A is typically used in commercial or industrial environments where fault currents are higher. Always choose an MCB with a breaking capacity that matches or exceeds the potential fault current of your system. It ensures safety and reliability during electrical faults.
Understanding the Significance of 10,000 in MCB Ratings
The 10,000 in MCB ratings refers to the maximum short-circuit current that the breaker can safely handle without causing damage or jeopardizing the system’s safety. This value is typically measured in amperes (A). The breaking capacity of an MCB is a critical factor when selecting it for a circuit that might experience significant fault currents.
For instance, in industrial settings or power distribution networks, fault currents can easily exceed 6,000 A or even more. If the MCB cannot handle this current, it could fail to trip, potentially causing severe damage to wiring, electrical components, or even posing safety risks like fires or electric shocks. By choosing an MCB with a 10,000 breaking capacity, you ensure that the breaker can interrupt large fault currents quickly, protecting the electrical system from irreparable damage.
A 10,000 breaking capacity MCB is thus highly beneficial in circuits where the fault current may be higher than the standard ratings of lower capacity breakers, making it the ideal choice for commercial, industrial, and high-power circuits.
Role of 10,000 Breaking Capacity in Circuit Protection
When discussing the role of a 10,000 breaking capacity in MCBs, it’s important to understand that this is directly related to the safety and reliability of the circuit. The primary purpose of a circuit breaker is to protect the electrical system from overloads and short circuits. However, the protection is only as effective as the breaker’s ability to handle fault currents that exceed normal operational conditions.
1. Handling High Fault Currents
A fault, such as a short circuit, causes a surge in current far beyond the rated capacity of the normal circuit. A breaker must be able to interrupt this surge without allowing it to persist, as it can lead to dangerous consequences like fire hazards or damage to equipment. The 10,000 breaking capacity indicates that the MCB can safely interrupt these high fault currents (up to 10,000 amperes) and prevent the circuit from staying live, which could cause severe damage to both electrical components and wiring.
2. Enhanced Protection in Industrial and High-Energy Systems
In industrial and commercial applications, circuits often involve high-powered machinery or equipment, which increases the likelihood of fault currents reaching substantial levels. In such systems, a 10,000 breaking capacity is not just a precaution, it is a necessity. It ensures that in the event of a high-energy fault, the MCB can safely trip the circuit and prevent damage.
3. Improved System Reliability
The 10,000 breaking capacity ensures that the circuit breaker can handle severe fault conditions, thereby reducing downtime and maintaining the reliability of the electrical system. It also ensures that the breaker won’t fail under extreme fault conditions, providing consistent protection over the long term.
Thus, the 10,000 breaking capacity of an MCB enhances its role as a critical protection device in electrical systems, particularly those prone to high fault currents.
You May Like to Read
How 10,000 Relates to MCB Durability and Performance
The 10,000 breaking capacity not only affects the protection levels but also plays a significant role in the durability and performance of an MCB. MCBs are designed to withstand the electrical stresses associated with breaking high fault currents. Here’s how the 10,000 rating directly impacts durability and performance:
1. Enhanced Durability
When an MCB is exposed to fault currents, the arcing during the interruption of current can cause wear and tear inside the breaker. A higher breaking capacity, such as 10,000, means that the breaker is built with superior materials and engineering techniques to withstand these high-energy fault conditions. MCBs with a higher breaking capacity are generally more robust and durable, ensuring that they can handle frequent or extreme fault currents without degrading or failing prematurely.
2. Longer Operational Life
MCBs with a 10,000 breaking capacity are designed to function reliably over a long period. Their internal components, like contacts and springs, are built to tolerate high stresses without losing their performance or requiring frequent replacements. In high-energy environments, reliability is crucial, and these breakers are more likely to continue operating optimally for years, even when subjected to intense electrical disturbances.
3. Performance During High-Fault Events
During short circuit or overload conditions, an MCB must trip quickly to avoid potential damage to the system. A 10,000 breaking capacity ensures that the MCB will perform its function effectively in these high-energy scenarios, interrupted within milliseconds, without causing any delay in the process. This enhanced performance is critical in preventing damage to sensitive electrical equipment or circuits.
In summary, an MCB with a 10,000 breaking capacity delivers superior durability and consistent performance, ensuring that your electrical system is protected under both normal and extreme conditions.
Applications Requiring MCBs with 10,000 Breaking Capacity
MCBs with a 10,000 breaking capacity are often used in situations where circuits may experience high fault currents due to the nature of the electrical load or environment. Below are some key applications where this rating is critical:
1. Industrial and Commercial Applications
In industrial environments, where large machines, heavy equipment, and high-power systems are in use, fault currents can easily reach high levels. MCBs with a 10,000 breaking capacity are necessary to handle these conditions without compromising the protection of sensitive equipment. These breakers are commonly used in factory floors, data centers, and heavy machinery setups, where any electrical fault can lead to significant damage or downtime.
2. Power Distribution Systems
In high-voltage or power distribution systems, fault currents can be massive. A 10,000 breaking capacity MCB is used to ensure safety and reliability. These systems require breakers that can quickly interrupt high fault currents, preventing damage to transformers, cables, and other infrastructure. These MCBs are crucial in the protection of substations and main distribution boards, where large currents can occur.
3. Renewable Energy Systems
In renewable energy installations such as solar or wind energy systems, the electrical systems often have high fault currents due to the nature of inverters or other high-powered equipment. In these cases, MCBs with a 10,000 breaking capacity ensure that any faults in the system can be interrupted without causing damage to the energy generation components or risking fires or electric shock hazards.
4. Public Infrastructure and Utilities
For public utilities and infrastructure that serve large areas, having high-energy circuit protection is essential. MCBs with a 10,000 breaking capacity are often installed in street lighting, public transport systems, and water treatment plants, where electrical faults can impact a large number of users and cause service disruptions.
In these high-demand environments, the 10,000 breaking capacity ensures that the MCB can handle high fault currents, maintaining system integrity and safety.
Differences Between 6,000 and 10,000 Rated MCBs
The difference between 6,000 and 10,000 rated MCBs primarily lies in the breaking capacity—the maximum current that each can interrupt during a fault. Let’s explore how these ratings affect their performance and application:
1. Fault Current Handling
A 6,000 breaking capacity MCB is suitable for circuits that are expected to experience lower fault currents, typically found in residential or smaller commercial settings. It is adequate for most circuits where fault currents are not expected to exceed 6,000 amps. However, if the fault current exceeds this limit, the breaker may fail to interrupt it, leading to potential damage.
In contrast, a 10,000 breaking capacity MCB can handle larger fault currents, making it suitable for industrial, power distribution, or high-demand applications where fault currents can be substantially higher.
2. Application Suitability
While 6,000 MCBs are commonly used in residential wiring, light commercial setups, or smaller circuits, 10,000-rated MCBs are often used in industrial installations, high-power circuits, and critical infrastructure where large machines or electrical systems are used.
3. Cost and Size
MCBs with a 10,000 breaking capacity tend to be larger and more expensive than their 6,000-rated counterparts. This is due to their enhanced durability and the ability to handle larger fault currents.
4. Safety Standards
In high-risk environments, 10,000 breaking capacity MCBs offer better safety protection compared to 6,000 MCBs, ensuring that critical infrastructure is safeguarded in the event of a fault.
In conclusion, while 6,000-rated MCBs are sufficient for low-risk, low-power circuits, 10,000-rated MCBs are essential for environments with high fault current risks, offering superior protection, performance, and safety.
Conclusion
The 10,000 breaking capacity of an MCB is a critical rating that ensures the safety, reliability, and performance of high-power electrical systems. Whether for industrial, commercial, or high-energy systems, MCBs with this rating provide superior protection against fault currents, ensuring that systems remain intact, safe, and efficient even in extreme conditions. Choosing the right MCB based on the breaking capacity is essential to maintaining system integrity and preventing costly damage.
