Key Takeaway

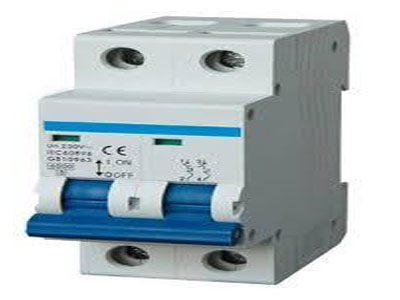

MCB stands for Miniature Circuit Breaker. It is an electrical safety device used to protect circuits from overloads and short circuits. When the current exceeds a safe level, the MCB automatically trips, cutting off the power to prevent damage to the wiring or electrical appliances.
MCBs are widely used in homes, offices, and industries for protecting electrical circuits. They are smaller than traditional circuit breakers, which is why they are called “miniature.” Unlike fuses, which need to be replaced when they blow, MCBs can be reset after tripping, making them more convenient and cost-effective for long-term use.
Understanding the Full Form of MCB
The full form of MCB, as mentioned, is Miniature Circuit Breaker. It’s a device designed to protect electrical circuits by automatically disconnecting the power supply in the event of an overload or short circuit. It’s called “miniature” because of its small size, but despite its compact form, it’s highly effective in safeguarding electrical systems.
MCBs are an essential part of electrical distribution boards and consumer units. They’re designed to handle currents up to 100 amps or more, depending on the specific type and rating. The primary function of an MCB is to break the circuit when there’s an overcurrent condition, protecting both the wiring and the connected equipment.
Over time, MCBs have become a standard choice in homes and industries, replacing older protection systems like fuses. The advent of MCB technology marked a significant step forward in the evolution of circuit protection, offering both ease of use and reliability.
The Role of MCB in Electrical Safety
The role of an MCB is pivotal in maintaining electrical safety within any system. Electrical circuits, without protection, are prone to short circuits, overloads, or even faults that could lead to dangerous situations. When an MCB detects an issue, it acts as a safety valve, automatically disconnecting the circuit to prevent further damage.
Overload protection is one of the key functions of an MCB. When the current exceeds the designed threshold for a circuit, the MCB will trip, thus preventing overheating, which could lead to fire hazards. Additionally, in the case of a short circuit, where the current flows through an unintended path, the MCB cuts the circuit off immediately, preventing the potential for damage to the wiring and connected equipment.
By quickly responding to these issues, MCBs ensure the safety of electrical systems, making them indispensable in both domestic and industrial environments. Without these devices, power surges, or faults could cause irreparable damage, leading to equipment failure or even life-threatening scenarios.
You May Like to Read
How MCBs Differ from Other Circuit Protection Devices
MCBs are often compared with fuses, another circuit protection device commonly used in older electrical systems. The main difference between MCBs and fuses lies in their functionality and reusability. While fuses blow when an overcurrent occurs, rendering them useless until replaced, MCBs can be reset after tripping. This makes MCBs more convenient for users, as they don’t need to be replaced after every fault.
Another key difference is that MCBs offer more precise control. They are designed to trip at specific current levels, allowing for more tailored protection for different types of circuits and equipment. Fuses, on the other hand, may be less precise and can sometimes allow higher-than-expected currents to flow before blowing.
MCBs also have a faster response time compared to fuses. The time taken by an MCB to detect an overcurrent or short circuit and disconnect the power supply is typically shorter than that of a fuse. This speed is crucial in preventing potential damage to sensitive electronic equipment.
Additionally, MCBs are more reliable in modern electrical systems. With advancements in technology, MCBs have become smarter, incorporating features like trip settings for different types of faults, such as overload, short circuit, and earth leakage. This makes them versatile and able to provide a higher level of protection.
Common Applications and Usage of MCBs
MCBs are used in a wide range of applications, from residential to industrial settings. In residential buildings, MCBs are often found in distribution boards, protecting circuits that power everyday appliances such as lighting, air conditioning, and kitchen devices. The ability to reset an MCB rather than replace a fuse is particularly useful in homes, reducing downtime and maintenance costs.
In industrial environments, MCBs are used to protect large machines, manufacturing equipment, and heavy-duty electrical installations. These environments often deal with high currents and the potential for faults, so reliable and efficient protection is a necessity. MCBs ensure that if a fault occurs, the circuit is isolated quickly, preventing extensive damage to costly equipment.
Another common application of MCBs is in commercial buildings. Offices, stores, and malls have complex electrical setups that include HVAC systems, elevators, lighting, and security systems. MCBs safeguard these systems from potential electrical faults, ensuring that operations run smoothly without risking electrical fires or equipment breakdowns.
Why MCB Is Preferred Over Fuses in Modern Systems
In modern electrical systems, MCBs have largely replaced fuses due to their reliability, reusability, and speed. One of the key advantages of MCBs is that they are easier to reset. Fuses, once blown, must be replaced, which can be time-consuming and costly. MCBs, however, simply require the switch to be flipped back to the “on” position after the cause of the tripping has been resolved.
Moreover, MCBs are more precise in their operation. They can be selected based on the current rating and the type of protection needed, offering flexibility for different types of electrical circuits. The ability to customize MCBs based on the application makes them versatile, providing protection in a variety of settings, from residential homes to large industrial plants.
Another reason why MCBs are preferred is their speed. They trip faster than fuses, ensuring that the protection is instantaneous when an overload or short circuit occurs. This quick response time can prevent significant damage to circuits and equipment, especially when compared to the slower reaction of older fuse-based systems.
Lastly, MCBs have a longer lifespan than fuses, which need to be replaced each time they blow. This makes MCBs a more cost-effective solution in the long term, especially in environments where electrical faults are a common occurrence.
Conclusion
In conclusion, Miniature Circuit Breakers (MCBs) are an essential component in modern electrical systems, providing reliable and efficient protection against overload and short circuit conditions. Their compact size, reliability, and ease of resetting make them ideal for both domestic and industrial applications. With advancements in technology, MCBs offer more precise control over electrical systems, ensuring optimal safety for electrical circuits.
Compared to older protection devices like fuses, MCBs provide more advantages, including faster response times, reusability, and longer lifespan. They are versatile, easy to use, and cost-effective, making them the go-to choice for protecting electrical systems in today’s world.
By understanding the role and functionality of MCBs, electrical engineers, especially those new to the field, can make informed decisions when designing and maintaining electrical systems. The importance of MCBs cannot be overstated, as they play a critical role in safeguarding both people and property from the risks associated with electrical faults.
