MCB stands for Miniature Circuit Breaker. It is an electrical safety device used to protect circuits from overloads and short circuits. MCBs automatically disconnect the power supply when the current exceeds safe levels, preventing damage to wires and appliances.
MCBs are widely used in residential, commercial, and industrial applications. Unlike fuses, which need to be replaced after use, MCBs can be easily reset. This makes them a more convenient and reliable option for protecting electrical systems.

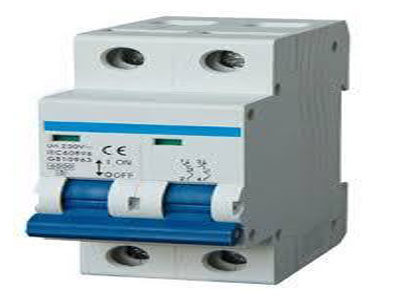

The Full Form of MCB: Miniature Circuit Breaker
At the heart of electrical safety is the Miniature Circuit Breaker, or MCB. It’s a small but vital device that protects electrical circuits from damage caused by overloads and short circuits. Despite its “miniature” name, the MCB’s role is massive in preventing potential hazards like electrical fires, equipment damage, or even personal injury.
Essentially, the MCB acts as an automatic switch that cuts off the electrical current when something goes wrong, keeping both people and equipment safe. Unlike traditional fuses, which must be replaced after tripping, MCBs can be reset after being tripped, making them more convenient for long-term use.
Whether in a home or industrial setting, MCBs are a universal fixture in electrical protection. As you work on different types of projects, understanding this small device’s importance will help you make safer, smarter decisions when designing or maintaining electrical systems.
Miniature Circuit Breaker H2: The Role of MCB in Electrical Protection Systems
In electrical installations, protection systems are designed to prevent hazards like electric shocks, fires, and equipment failures. This is where the MCB comes into play. Think of it as the guardian of the circuit—whenever there is a risk of damage due to faults like overloads or short circuits, the MCB automatically steps in and cuts off the power supply.
The MCB detects faults and interrupts the circuit before the situation becomes dangerous. It serves a critical function in ensuring that the entire system does not suffer from long-term damage. Without MCBs, electrical systems would be vulnerable to surges in current, which can lead to fires or equipment breakdowns.
In homes, MCBs protect everything from lighting circuits to major appliances. In industries, they guard expensive equipment and ensure safety in hazardous environments. Whether you are designing, installing, or maintaining electrical systems, MCBs ensure that everything stays safe and operational.
You May Like to Read
The Role of MCB in Electrical Protection Systems H2: How MCBs Safeguard Electrical Circuits from Overloads and Short Circuits
MCBs offer protection in two main scenarios: overloads and short circuits. These types of faults can cause serious damage if left unchecked. Here’s how the MCB works in each case:
Overload Protection
Overloads occur when too many devices are connected to a single circuit, drawing more current than it’s designed to handle. The result is overheating, which can damage wiring and lead to fires. The MCB has a thermal mechanism that detects the heat generated by excessive current. When the temperature rises beyond safe levels, the MCB trips, disconnecting the circuit and preventing damage.
Short Circuit Protection
A short circuit occurs when there’s a direct connection between the live and neutral wires, bypassing the load. This causes a sudden surge of current. Without protection, this surge can be catastrophic. The MCB reacts almost instantly to a short circuit, tripping the circuit before any harm can occur. This rapid response is what makes MCBs indispensable in preventing damage to both the electrical wiring and connected equipment.
Both these types of protection are critical, especially when dealing with sensitive or high-value equipment. Whether at home or in industrial environments, the MCB ensures that circuits are always safeguarded from unexpected electrical faults.
How MCBs Safeguard Electrical Circuits from Overloads and Short Circuits H2: Understanding the Importance of MCBs in Modern Electrical Installations
In today’s world, electrical systems are more complex than ever before. The demand for reliable and efficient power supply systems is at an all-time high. With this increased complexity comes a greater need for reliable protection mechanisms, which is where the MCB plays a pivotal role.
In residential setups, MCBs protect household circuits from overloading, preventing fires caused by faulty wiring or appliance malfunctions. In a typical home, there are several circuits running simultaneously—lighting, HVAC systems, kitchen appliances, and more. The MCB ensures that even if one circuit experiences a fault, the others remain operational and safe.
In industrial settings, the stakes are even higher. Machinery can be expensive, and downtime can cost businesses a lot of money. MCBs are essential in these environments to ensure the safety of both workers and equipment. For example, they protect control panels, motors, and other industrial equipment from faults that could otherwise lead to fire, equipment failure, or operational stoppage.
The importance of choosing the right MCB for each system cannot be overstated. A poorly selected MCB could either trip too early, causing unnecessary interruptions, or fail to trip when needed, putting the system at risk. As engineers, it’s crucial to understand the requirements of each circuit and select the appropriate MCB to ensure safety and reliability.
Understanding the Importance of MCBs in Modern Electrical Installations H2: Types of MCBs: What You Need to Know About Their Variations
Not all MCBs are the same. Depending on the application and the type of load, different types of MCBs are available to cater to specific needs. These types vary mainly in terms of the current characteristics they handle, such as the level of inrush current they can tolerate before tripping.
Type B MCB
This is the most common type and is used for general-purpose protection. Type B MCBs trip when the current exceeds 3 to 5 times the rated current. These are typically used in residential settings where appliances and circuits have a predictable load.
Type C MCB
Type C MCBs are designed for circuits with inductive loads, such as motors and transformers, which have a higher inrush current. These MCBs trip when the current exceeds 5 to 10 times the rated current. You’ll typically find them in commercial or light industrial applications where such loads are common.
Type D MCB
Type D MCBs are used in situations with high inrush currents, like in circuits with large motors or transformers. They trip when the current exceeds 10 to 20 times the rated current. These MCBs are typically used for specialized industrial applications.
Type K MCB
Type K MCBs are less common but are designed for circuits with heating elements or other devices that experience high inrush currents. These MCBs allow a longer time for the current to exceed the rated value before tripping, preventing unnecessary interruptions in systems with high inrush loads.
Each of these MCB types has a specific function, and choosing the right one is crucial to ensuring optimal protection. When you’re working on electrical projects, you must carefully assess the nature of the load and the fault conditions to select the appropriate MCB.
Conclusion
To summarize, the Miniature Circuit Breaker (MCB) is an essential component in electrical systems, providing protection against overloads and short circuits. Understanding the different types of MCBs and their role in safeguarding circuits is critical for engineers, especially those just entering the field. Whether you’re working on a residential project or large industrial installations, selecting the right MCB ensures both safety and efficiency.
The right MCB can prevent damage to equipment, avoid unnecessary downtime, and protect people from electrical hazards. As you continue your career, always remember that an MCB is not just a small component—it’s a life-saving piece of equipment that ensures your electrical systems function safely and reliably.
