Key Takeaway

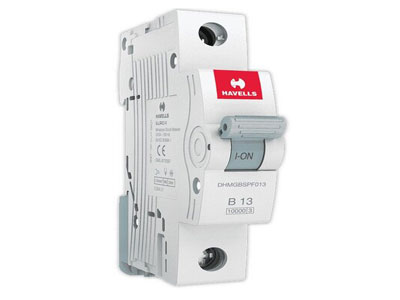

MCB stands for Miniature Circuit Breaker. It is an electrical safety device used to protect electrical circuits from overcurrent or short circuits. When the current exceeds the set limit, the MCB automatically trips, disconnecting the circuit and preventing potential damage or fire.
MCBs are commonly used in residential and commercial electrical installations to safeguard appliances and wiring. They are small in size, easy to install, and offer quick protection against electrical faults.
The Full Form of MCB and Its Significance in Electrical Systems
The acronym MCB stands for Miniature Circuit Breaker. This essential device is designed to protect electrical circuits from damage caused by overloads or short circuits. Unlike traditional fuses, MCBs automatically reset after being triggered, making them both efficient and reliable.
The significance of MCBs in electrical systems cannot be overstated. In any electrical network, whether residential, commercial, or industrial, the risk of circuit overloads is ever-present. An overload occurs when too much current flows through a circuit, potentially leading to equipment damage, fire hazards, or even electrocution.
MCBs are designed to automatically disconnect the circuit when the current exceeds safe limits. This prevents damage to wiring and connected devices, ensuring safety and reliability of the entire electrical system. MCBs also serve as a convenient manual switch for turning electrical circuits on or off, further enhancing their versatility.
In summary, MCBs play a critical role in maintaining the integrity and safety of electrical systems, making them indispensable in modern electrical setups.
The Role of MCB in Overcurrent Protection
Overcurrent protection is the primary function of an MCB. It acts as a safeguard to ensure that electrical circuits are not exposed to excessive currents, which can cause damage to wiring, equipment, or even spark fires. When an electrical device or circuit draws more current than the safe limit, it becomes susceptible to overload or short-circuit conditions. An overcurrent occurs when the current exceeds the system’s designed capacity, and this can be caused by various factors, such as faulty wiring, damaged appliances, or external power surges.
MCBs are built with thermal and magnetic protection mechanisms to detect overcurrent conditions. The thermal protection relies on a bimetallic strip that bends when excessive heat is generated by an overload, causing the MCB to trip. On the other hand, magnetic protection uses a solenoid mechanism to react to short-circuit conditions, where the current surge happens almost instantly. This dual protection mechanism ensures that the MCB can handle both gradual overloads and sudden short circuits.
One of the key advantages of MCBs over traditional fuses is their ability to reset automatically once the fault is cleared, without needing to be replaced. In contrast, fuses have to be manually replaced once blown. This makes MCBs more cost-effective and easier to maintain.
Ultimately, the role of an MCB in overcurrent protection is crucial for maintaining the safety and efficiency of electrical systems, preventing costly damage and ensuring that the system continues to function properly.
You May Like to Read
Understanding the Basic Operation of MCBs in Circuit Breakers
To understand how an MCB operates, it’s important to examine its two primary functions: protecting circuits and providing switching capabilities. The operation of an MCB is based on the principle of automatic disconnection in the event of an overcurrent.
When the current flowing through a circuit exceeds a preset limit, the MCB will trip or open the circuit. The MCB contains two mechanisms for detecting overcurrent situations: thermal overload protection and magnetic short-circuit protection.
Thermal Protection: This mechanism is designed for overload protection, where a gradual increase in temperature causes a bimetallic strip inside the MCB to bend. When the strip reaches a certain level of bending due to heat from an overload, it triggers the breaker to disconnect the circuit. This action prevents the overheating of the wiring, which could lead to melting or even fire.
Magnetic Protection: This mechanism provides rapid response in the case of a short circuit. A high surge of current (due to a short circuit) activates a magnetic coil, causing the MCB to trip almost instantaneously. This prevents serious damage to the electrical system by quickly disconnecting the faulty circuit.
In addition to these protection mechanisms, the MCB also functions as a manual switch, allowing users to open or close the circuit when necessary. After a trip, the MCB can be easily reset with a lever or switch, making it much more convenient than traditional fuse-based systems.
Thus, the basic operation of an MCB provides reliable protection against electrical faults, ensuring the continuity and safety of electrical systems.
Why MCBs Are Essential for Electrical Safety and Reliability
MCBs play a vital role in maintaining the safety and reliability of electrical systems. Overcurrent events like overloads and short circuits can cause significant damage to equipment, wiring, and even lead to electrical fires. MCBs are designed to automatically disconnect the circuit when such faults occur, preventing these risks and ensuring the safety of the people using the system.
Without MCBs, electrical systems would be vulnerable to uncontrolled faults. A surge in electrical current caused by an overload or a short circuit can melt wires, damage appliances, or even cause sparks that might ignite a fire. MCBs prevent these dangers by interrupting the circuit before any significant damage occurs.
Another reason MCBs are essential is their reliability. Unlike fuses, which need to be replaced once blown, MCBs are resettable and can be reused once the fault is cleared. This feature not only reduces maintenance costs but also increases the convenience of system management.
In addition to providing protection, MCBs also enhance the overall efficiency of the electrical system. By preventing overloads and ensuring the circuit is properly protected, MCBs help to avoid unnecessary downtime or equipment malfunctions. This is especially crucial in industrial or commercial settings where electrical reliability is key to operations.
In summary, MCBs are indispensable for safe electrical systems. Their ability to respond quickly to faults and reset without the need for replacement ensures that electrical circuits remain functional and safe, preventing both damage and accidents.
Common Applications of MCBs in Residential, Commercial, and Industrial Wiring
MCBs are used across a wide range of applications, from residential homes to industrial facilities. Their primary function is to protect electrical circuits from overloads and short circuits, making them essential in both everyday and industrial environments.
Residential Applications: In homes, MCBs are used to protect circuits that supply power to appliances, lighting, and HVAC systems. They are installed in distribution boards to ensure that circuits are protected from faults that could cause overheating or fire. MCBs are commonly found in home electrical panels, where they safeguard wiring and connected devices like refrigerators, washing machines, and air conditioners.
Commercial Applications: In commercial settings such as offices, shops, and restaurants, MCBs are used to protect circuits supplying power to lighting, heating, and cooling systems, as well as office equipment and other electrical devices. Commercial environments often have higher power demands, and MCBs ensure that high-capacity electrical systems are protected from overcurrent situations.
Industrial Applications: In factories, power plants, and large commercial buildings, MCBs are used to safeguard complex electrical networks that power large machinery, industrial equipment, and control systems. Industrial settings often require high-capacity protection due to the heavy loads and high fault currents involved. MCBs are used not only to protect electrical systems but also to ensure the proper operation of large-scale equipment like motors, transformers, and pumps.
From small-scale circuits in homes to large, high-power systems in factories, MCBs are indispensable for protecting electrical installations and ensuring safe, reliable operation across different environments.
Conclusion
In conclusion, MCBs (Miniature Circuit Breakers) are essential components in modern electrical systems. They provide crucial protection against overcurrent events like overloads and short circuits, helping to maintain the safety and reliability of electrical circuits. Whether in residential, commercial, or industrial applications, MCBs ensure that electrical systems function properly, prevent damage to wiring and equipment, and ultimately protect lives. Their resettable nature makes them more efficient and cost-effective than fuses, while their versatile applications in diverse settings highlight their importance in maintaining a safe electrical environment.
