Key Takeaway

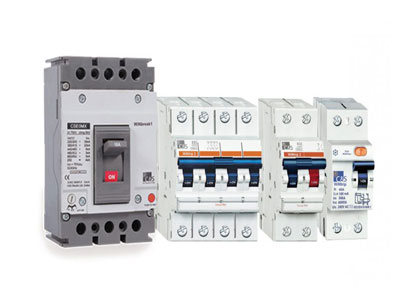

An MCB (Miniature Circuit Breaker) detects overloads and short circuits in electrical circuits. It is designed to protect the wiring and electrical devices by automatically disconnecting the power when it detects an unsafe current flow.
In the case of an overload, the MCB detects when too many appliances are drawing more power than the circuit can handle. If there is a short circuit, it detects a sudden surge of current caused by a direct connection between the live and neutral wires. The MCB then trips, cutting off the power to prevent damage or fire risks. Its main function is to ensure the safety of electrical systems by detecting these faults and disconnecting the power when necessary.
The Role of MCB in Detecting Overcurrent Conditions
One of the primary functions of an MCB is to detect overcurrent conditions. Overcurrent occurs when the electrical current exceeds the normal rated value for a circuit, which can be caused by excessive electrical load, faulty equipment, or internal circuit failures. Overcurrent can result in wiring overheating, potential fire hazards, and permanent damage to electrical components if not promptly addressed.
The MCB monitors the current flowing through the circuit and when it detects a sustained high current (i.e., an overcurrent situation), it trips and disconnects the power. This action prevents the circuit from getting damaged or posing a fire risk. The time-delay mechanism in the MCB ensures that short-lived spikes in current, such as those from starting motors, do not trigger unnecessary trips, while still offering protection against more sustained overcurrent situations.
The significance of overcurrent protection is especially apparent in industries where heavy machinery is used, as large electrical loads can frequently exceed safe current limits. Without the MCB’s quick detection, the resulting overcurrent could cause catastrophic damage. In residential and commercial settings, overcurrent protection is equally important, especially when multiple devices are connected to the same circuit.
How MCBs Detect Short Circuits and Their Impact on Safety
A short circuit is a severe electrical fault that occurs when there is a direct connection between the live and neutral conductors, causing a massive surge in current. This surge can lead to serious damage to electrical wiring and appliances, fires, and even electrocution. This is where the MCB plays a vital role.
The MCB is designed to react instantly to a short circuit. As soon as it detects the abnormal surge in current, it trips the circuit and disconnects the power to prevent any further damage. This is crucial because the high currents involved in short circuits can be extremely dangerous.
Without the MCB’s detection capabilities, a short circuit could go unnoticed, resulting in burnt wires, damaged appliances, or electrical fires. The quick tripping action of the MCB is essential to minimize the damage and ensure the safety of both the electrical system and the people using it.
Industrial environments often face the challenge of short circuits due to the complexity of the wiring and equipment involved. Whether it’s a broken wire, a loose connection, or a damaged device, a short circuit can occur anytime, and the MCB’s ability to rapidly disconnect the circuit ensures that both people and equipment are kept safe from harm.
You May Like to Read
Ground Fault Detection and Its Importance in Electrical Systems
A ground fault occurs when electricity flows through an unintended path to the ground, which can be extremely dangerous for both people and equipment. If a fault develops in an appliance or part of the electrical wiring, it may cause the electrical current to escape and flow to the ground, creating a hazardous situation.
MCBs with ground fault detection capabilities play a crucial role in ensuring safety by detecting such imbalances and tripping the circuit when necessary. This is especially important in environments where electrical equipment is exposed to moisture or corrosive materials, which increases the risk of ground faults.
In residential settings, a ground fault can occur if a live wire comes into contact with metal or wet surfaces, presenting a risk of electric shock to anyone touching the surface. In industrial settings, the dangers of ground faults are even more pronounced, as machinery, motors, and other heavy-duty equipment could lead to significant safety hazards if not promptly addressed.
The MCB not only detects the imbalance between live and neutral currents but also responds by quickly disconnecting the faulty circuit. This helps to prevent electrocution, reduce the risk of fire, and protect the overall integrity of the electrical system. Ground fault detection is a key feature of modern electrical systems, especially in sensitive areas like hospitals, factories, and residential homes.
The Significance of MCBs in Preventing Electrical Fires
Electrical fires are among the most common and dangerous types of fires in both residential and industrial settings. Faulty wiring, overloads, short circuits, and ground faults are common causes of electrical fires. MCBs act as the first line of defense, preventing these conditions from escalating into fire hazards by disconnecting the power when faults are detected.
In fact, MCBs are designed to interrupt the current flow as soon as any potentially hazardous fault occurs, significantly reducing the chance of electrical fires. When an overcurrent or short circuit occurs, the MCB detects the surge in current and trips, preventing overheating of wires and electrical components that could otherwise ignite flammable materials.
In residential areas, the risk of fire due to electrical faults is significant, as many homes use old wiring systems and multiple electrical appliances. The MCB’s ability to quickly detect faults and disconnect the power ensures that fire safety is maintained. In commercial or industrial environments, the stakes are even higher, as large electrical systems and equipment pose a significant fire risk.
By ensuring immediate disconnection in the event of a fault, MCBs help prevent damaged equipment and avoid the devastating consequences of an electrical fire, safeguarding both people and property.
Sensitivity and Response Time of MCBs in Fault Detection
The effectiveness of an MCB lies not only in its ability to detect faults but also in how quickly it can react to them. The sensitivity and response time of the MCB are critical factors that ensure it trips the circuit at the right moment—quickly enough to avoid damage but not prematurely.
MCBs are designed with a specific current threshold. If the current exceeds this threshold, the MCB reacts by tripping. The response time depends on the type of fault and the MCB’s settings. For instance, overcurrent situations may require the MCB to trip after a certain delay to avoid false tripping, while short circuits require an immediate response.
In high-risk environments, like data centers, factories, or laboratories, MCBs must be highly sensitive to any irregularities, ensuring they react swiftly to potential hazards. The faster the response, the less likely the fault will escalate to serious damage, keeping the system safe and operational.
Conclusion
In conclusion, MCBs serve an essential role in detecting various electrical faults, including overcurrent, short circuits, and ground faults. Their sensitivity and response time are crucial to ensuring that damage to electrical systems and fire hazards are minimized. MCBs help safeguard not only electrical equipment but also the safety of personnel working in or around electrical systems.
With the ability to quickly detect faults and interrupt the power supply, MCBs prevent damage, fires, and even electrocution, making them one of the most important components of modern electrical protection systems. Understanding how MCBs detect and respond to faults is key to maintaining system safety and efficiency.
