Key Takeaway

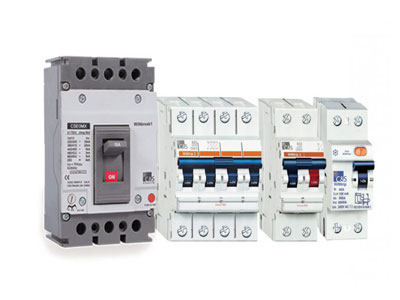

MCB stands for Miniature Circuit Breaker. It is a device used to protect electrical circuits from damage caused by overloads or short circuits. When the current exceeds a safe level, the MCB automatically trips, cutting off the power.
MCBs are widely used in homes, offices, and industrial settings to ensure safety. Unlike fuses, which need to be replaced after blowing, an MCB can be reset after it trips. This makes it more convenient and cost-effective for protecting electrical systems.
Full Form and Meaning of MCB (Miniature Circuit Breaker)
The full form of MCB is Miniature Circuit Breaker, and as the name suggests, it’s a small-sized circuit protection device used in electrical circuits. The word “miniature” signifies that it is much smaller in size compared to other circuit protection devices, yet it plays a critical role in preventing electrical hazards.
An MCB works by detecting faults in the electrical system, such as an overload or short circuit, and automatically disconnecting the circuit when the current flow exceeds its rated capacity. This action helps protect both the circuit and the connected appliances from damage, fire, or electric shock.
The meaning of MCB extends beyond its acronym, as it represents a technological advancement in the field of electrical protection. The MCB is designed to automatically reset after it trips, unlike the older technology of fuses, which require replacement after activation. This reset capability makes MCBs a cost-effective and durable option for residential, commercial, and industrial applications.
Why Is MCB Essential in Electrical Systems?
The essential role of MCBs in electrical systems cannot be overstated. They serve as a first line of defense against electrical faults such as overloads and short circuits, which could lead to damage, fires, or even life-threatening accidents. Without the protection offered by MCBs, electrical circuits would be far more susceptible to faults, resulting in system failures or extensive damage to connected devices.
Overloads occur when the current flowing through a circuit exceeds the rated capacity for an extended period, causing the wiring to overheat and possibly leading to fires. A short circuit happens when a live wire touches a neutral wire, causing a sudden surge of current. Without an MCB, this surge could cause catastrophic damage.
By automatically disconnecting the circuit when such faults occur, MCBs ensure the safety of both the wiring and the appliances connected to the circuit. This protection extends to homes, offices, and industrial settings, where electrical systems are susceptible to overloading and other risks.
Additionally, MCBs help maintain the integrity of electrical circuits by ensuring that excessive current does not cause permanent damage. Their quick response and reset functionality make them an indispensable component in any modern electrical setup.
You May Like to Read
Brief History and Development of MCBs
The development of the MCB began in the early 20th century as the need for automatic circuit protection became apparent. Before MCBs, circuit protection was primarily handled by fuses, which would blow when a fault occurred. Fuses were effective but had limitations—they needed to be replaced every time they activated, leading to downtime and additional costs.
The invention of the MCB revolutionized electrical protection. In the mid-20th century, as electrical systems grew more complex and household electrical devices became more powerful, engineers sought a solution that would automatically reset after a fault. This led to the development of MCBs, which were not only more reliable than fuses but also resettable, providing a more cost-effective solution for circuit protection.
As electrical demands continued to grow, the technology behind MCBs evolved. Earlier models were large and bulky, but modern MCBs are compact and more efficient, making them suitable for use in both small residential setups and large industrial applications. Today, MCBs come with various ratings and types, allowing engineers to select the right protection for specific applications.
The history of MCBs highlights their crucial role in advancing electrical safety and protecting modern electrical systems from potential harm. Over time, these devices have become more sophisticated, with improved tripping mechanisms and sensitivity, making them an essential part of electrical protection.
How MCBs Protect Circuits from Overload and Short Circuits
The way an MCB works is both simple and effective. It uses two primary mechanisms to provide protection: the thermal trip and the magnetic trip. The thermal trip responds to overload conditions, while the magnetic trip is designed to react to short circuits.
When the current flowing through the MCB exceeds the rated capacity for an extended period, the thermal trip mechanism comes into play. Inside the MCB is a bimetallic strip that bends when it heats up. When the strip bends sufficiently, it triggers the mechanism that disconnects the circuit, thus preventing the system from overheating.
In contrast, the magnetic trip is designed to act much faster. In the event of a short circuit, where current surges to dangerous levels almost instantly, the magnetic mechanism quickly trips the circuit. This instantaneous reaction helps prevent the damage that could occur from a short circuit, such as fire or damage to sensitive equipment.
The combination of these two trip mechanisms ensures that the MCB provides comprehensive protection for electrical circuits. It not only protects against prolonged overloads but also ensures that sudden faults like short circuits are handled swiftly, reducing the risk of harm.
Different Types of MCBs and Their Applications
There are various types of MCBs, each designed for specific applications, with different trip characteristics and ratings. The main types include Type B, Type C, and Type D MCBs. Each of these types is designed to respond differently to overload conditions, depending on the application.
Type B MCBs are typically used in residential or commercial applications. They trip when the current is 3 to 5 times the rated current and are ideal for circuits with low inrush currents, such as lighting circuits and power outlets.
Type C MCBs are more commonly used in industrial applications where equipment with higher inrush currents, such as motors or transformers, is involved. They trip when the current is 5 to 10 times the rated value, providing protection while allowing higher current surges.
Type D MCBs are used in specialized applications where devices with very high inrush currents are used, such as large motors or transformers. These MCBs can handle 10 to 20 times the rated current before tripping.
In addition to these types, MCBs are available in different ratings to cater to various circuits and electrical systems. The applications of MCBs range from simple household setups to large industrial plants, ensuring that each system is properly protected from overload, short circuits, and other electrical faults.
Conclusion
Understanding what MCB stands for and how it functions is essential for anyone working with electrical systems. Miniature Circuit Breakers play a pivotal role in protecting electrical circuits from damage due to overloads and short circuits, ensuring the safety of homes, businesses, and industrial facilities.
From their early development to modern advancements, MCBs have evolved into highly efficient, reliable, and resettable devices that offer significant advantages over older technologies like fuses. Their importance in safeguarding electrical systems cannot be overstated, and they remain a critical component in the protection of electrical infrastructure.
By understanding the types, functions, and historical development of MCBs, engineers and technicians can ensure that they are selecting the right protection for their specific applications, maintaining both safety and efficiency in electrical systems.
