Key Takeaway
A DCV (Directional Control Valve) is typically activated by devices such as solenoids, levers, or pneumatic actuators. The choice of the activating device depends on the system’s design and application.
For example, solenoid-operated DCVs are common in automated systems, while manually operated levers are used in simpler setups. These activators shift the valve’s internal mechanism to control fluid flow.
Overview of DCV Activation Methods
Directional Control Valves (DCVs) can be activated in various ways, depending on the system requirements and the level of automation needed. The primary activation methods for DCVs include manual, mechanical, pneumatic, and electrical activation. Each method offers its own advantages and is suited for different types of applications.
1. Manual Activation: In manual systems, the operator physically shifts the valve’s position using a lever, knob, or push-button. Manual valves are simple to use and are often employed in smaller or less automated systems where operator control is preferred. They are typically used in low-volume or emergency situations where quick adjustments are needed.
2. Mechanical Activation: Mechanical actuation involves the use of external force, such as a spring, to shift the valve’s position. These valves are often used in systems where automated control is not necessary, but a more reliable shift is required than a purely manual operation.

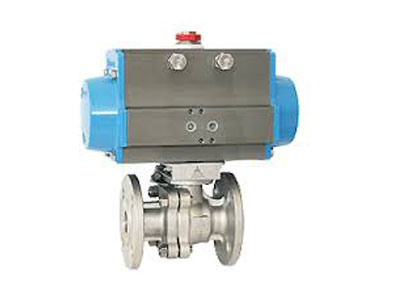

3. Pneumatic Activation: Pneumatically actuated valves use compressed air to move the spool within the valve body. This method is common in pneumatic systems, where it provides fast and reliable operation. Pneumatic actuation is suitable for environments that require remote or automated control without the need for electrical power.
4. Electrical Activation: The most common and widely used method is solenoid activation, where a solenoid coil is energized to shift the valve’s position.
Manual Actuators and Their Uses
In the world of fluid control systems, manual actuators play an essential role in controlling the flow of fluid to different components of the system. These actuators are typically used in smaller or simpler systems where precise, automatic control is not necessary, and manual intervention can be used to operate the system effectively. The actuator is the component that physically moves the internal elements of a directional control valve (DCV), such as the spool or poppet, to shift the flow direction of the fluid.
Manual actuators come in different forms, including push buttons, levers, knobs, and rotary handles. The user can manually operate these actuators to change the position of the valve, which in turn alters the direction of fluid flow in the system. In many industrial settings, manual actuators are commonly found in smaller systems where automatic control would be overkill or too costly.
A key advantage of manual actuators is their simplicity and cost-effectiveness. They do not require external power sources like solenoids or air pressure, making them an attractive option for smaller systems that don’t need automation. Manual actuators are often found in pneumatic systems controlling basic operations such as opening or closing valves, turning air tools on and off, or diverting fluid to different parts of a machine.
Manual actuators are especially useful in emergency shutdown systems, where operators need to quickly take control of the system to stop or redirect the flow of fluid in case of an emergency. In such cases, manual actuators offer a direct and reliable method of controlling the system without relying on power or automation.
Role of Solenoids in DCV Activation
The solenoid is a crucial component in solenoid-operated directional control valves (DCVs), as it acts as the actuator that opens or closes the valve in response to electrical signals. When an electrical current is passed through the solenoid coil, it creates a magnetic field that moves the plunger within the valve body. This movement shifts the valve spool, thereby controlling the flow of fluid or gas through the valve’s ports. Solenoids provide fast, precise, and remote control of fluid movement, making them ideal for automated systems where quick response times and reliable performance are critical.
In pneumatic systems, solenoids are often used to control the flow of compressed air to various actuators, such as pneumatic cylinders or motors. By activating or deactivating the valve, solenoids allow the system to control the speed, direction, and force of the actuator, enabling complex, automated operations. For example, solenoid-operated DCVs can switch between different flow paths, allowing for a variety of movements such as lifting, pushing, or rotating objects on an assembly line.
In hydraulic systems, solenoids control the flow of hydraulic fluids, which are essential for powering large machinery and heavy equipment. Solenoids are used to activate valves that direct the flow of fluid to various actuators, controlling the motion of hydraulic cylinders or motors.
Hydraulic and Pneumatic Actuation Systems
Hydraulic and pneumatic actuation systems are vital technologies used to control machinery and equipment across various industries. Hydraulic systems use pressurized fluid to transmit power, making them ideal for applications requiring high force and precise control, such as in construction machinery and aircraft. Pneumatic systems, on the other hand, use compressed air and are often employed in applications where speed and flexibility are more critical than force.
The choice between hydraulic and pneumatic systems depends on the specific requirements of the application. Hydraulic systems are known for their ability to provide constant force and precise control, which is essential in applications like metal forming and heavy lifting. However, they require more maintenance due to the complexity of the fluid components and the risk of leaks.
Pneumatic systems are favored for their simplicity, ease of maintenance, and quick response time. They are commonly used in automation and packaging industries where rapid actuation is required. While they may not provide the same level of force as hydraulic systems, their reliability and low maintenance needs make them a popular choice in many industries. Understanding the strengths and limitations of each system is crucial for selecting the right actuation technology for a given application.
Advantages of Automated Activation
The advantages of automated activation in fluid systems are manifold, offering significant improvements in efficiency, accuracy, and safety. Automated systems enable precise control over fluid flow and pressure, reducing the likelihood of human error and ensuring consistent performance. This leads to increased productivity and cost savings, as processes can be optimized and streamlined to meet specific operational requirements.
One of the key benefits of automated activation is the ability to respond quickly to changing conditions. In dynamic environments, manual intervention can be slow and prone to errors, whereas automated systems can adjust parameters in real-time based on sensor data and pre-programmed algorithms. This adaptability enhances system resilience and minimizes the risk of disruptions, making automation particularly valuable in critical applications such as chemical processing and power generation.
Practical insights into implementing automated activation involve careful planning and integration with existing systems. It’s important to assess the specific needs of the operation and select appropriate technologies that offer scalability and flexibility. Training personnel to efficiently manage and troubleshoot automated systems is also crucial, ensuring that the workforce is equipped to handle the new challenges and opportunities presented by automation.
In summary, automated activation offers numerous advantages that can transform fluid system operations. By embracing automation, companies can achieve greater precision, efficiency, and safety, positioning themselves for success in an increasingly competitive landscape. As technology continues to advance, the role of automation in fluid systems is expected to grow, driving innovation and excellence across industries.
Conclusion
A DCV, or directional control valve, is typically activated by a solenoid or a manual lever.
The solenoid, when energized, generates a magnetic field that moves a plunger or spool within the valve, changing the direction of fluid flow. Manual activation involves an operator physically moving the lever to achieve the same effect. By understanding the devices that activate DCVs, operators can ensure proper valve operation and troubleshoot any issues that may arise. This knowledge is crucial for maintaining system efficiency and reliability in various hydraulic applications.
