Key Takeaway

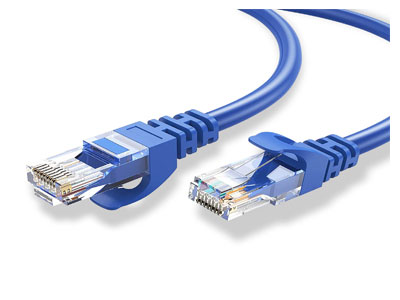

Ethernet typically uses twisted pair cables, such as Cat5e, Cat6, or Cat6a, for most applications. These cables are designed to transmit data reliably and minimize interference by using pairs of wires twisted together. They are widely used for local area networks (LANs) and support speeds ranging from 100 Mbps to 10 Gbps, depending on the category.
For longer distances or high-speed networks, Ethernet can also use fiber optic cables. Fiber optics provide much greater bandwidth and can cover longer distances compared to twisted pair cables. The choice between twisted pair and fiber optic cables depends on your specific network requirements, such as speed, distance, and budget.
Introduction to the Different Types of Ethernet Cables (Cat5e, Cat6, Cat6a)
Ethernet cables are categorized based on their speed, bandwidth, and construction. The most commonly used types are Cat5e, Cat6, and Cat6a.
Cat5e (Category 5 Enhanced):
This is the most basic Ethernet cable used today. It supports speeds of up to 1 Gbps and a bandwidth of 100 MHz. It’s suitable for home networks and small-scale industrial applications where high-speed data transfer isn’t critical.
Cat6 (Category 6):
Cat6 cables improve upon Cat5e by offering speeds of up to 10 Gbps over short distances (up to 55 meters) and a bandwidth of 250 MHz. They are ideal for more demanding setups, such as small data centers or high-speed industrial networks.
Cat6a (Augmented Category 6):
Cat6a extends the performance of Cat6, supporting 10 Gbps speeds over longer distances (up to 100 meters) and offering a bandwidth of 500 MHz. It is better suited for environments with heavy data usage, such as factories or large office buildings.
Choosing between these depends on your speed and distance requirements. While Cat5e is sufficient for basic needs, Cat6 and Cat6a are better for future-proofing your network.
hen to Use Shielded vs. Unshielded Ethernet Cables
Ethernet cables come in two main varieties: shielded (STP) and unshielded (UTP). Choosing the right one depends on the environment and level of electromagnetic interference (EMI).
Unshielded Twisted Pair (UTP):
UTP cables are the most common type, widely used in homes, offices, and low-interference environments. They rely on the twisting of pairs within the cable to reduce noise and interference. UTP cables are lightweight, flexible, and cost-effective, making them suitable for standard Ethernet applications.
Shielded Twisted Pair (STP):
STP cables have an additional layer of shielding around each twisted pair or the entire cable. This shielding protects against EMI and crosstalk, which are common in industrial environments with heavy machinery, power lines, or wireless equipment.
For example, in a manufacturing plant, STP cables would ensure reliable communication between controllers and sensors, even in the presence of high electrical noise.
When deciding between UTP and STP, consider the environment:
UTP: Ideal for low-EMI areas like homes and standard offices.
STP: Essential for high-EMI environments like factories, data centers, or outdoor installations.
In summary, UTP is cost-effective and sufficient for most scenarios, while STP offers enhanced reliability in electrically noisy environments.
You May Like to Read
Fiber Optic Ethernet Cables for Long-Distance Data Transmission
Fiber Optic Ethernet Cables for Long-Distance Data Transmission
Key Features of Copper vs. Fiber Cables in Industrial Networks
In industrial networks, the choice between copper and fiber cables often comes down to application needs. Each has its unique features and advantages.
Copper Cables:
Cost-Effective: Copper cables, like Cat5e or Cat6, are more affordable and widely available.
Ease of Installation: Copper cables are simpler to install and don’t require specialized tools or training.
Power Over Ethernet (PoE): Copper cables can deliver power alongside data, making them ideal for devices like IP cameras and access points.
However, copper cables are limited in speed and distance. They are also susceptible to electromagnetic interference (EMI), making them less reliable in high-noise environments.
Fiber Optic Cables:
High-Speed Data Transfer: Fiber optics support speeds up to 100 Gbps, far surpassing copper cables.
Long Distance Communication: Fiber optics can transmit data over several kilometers without signal degradation.
EMI Immunity: Perfect for environments with heavy machinery or electrical equipment.
Despite their advantages, fiber optic cables are more expensive and require specialized knowledge for installation and maintenance.
Choosing Between Copper and Fiber:
For short-distance communication and PoE applications, copper cables like Cat6a are a practical choice. For long-distance, high-speed, or high-interference environments, fiber optics are the better option.
For instance, an industrial plant might use copper cables for local connections between controllers and sensors but rely on fiber optics to link remote facilities.
In conclusion, understanding the strengths of copper and fiber cables ensures the right choice for reliable and efficient industrial networks.
Choosing the Right Ethernet Cable Based on Application Needs
Selecting the right Ethernet cable depends on several factors, including speed, distance, environment, and application type. Making the right choice ensures optimal performance and long-term reliability.
1. Speed and Bandwidth Requirements:
If your application involves high-speed data transfer, such as in data centers or video surveillance, Cat6a or fiber optic cables are ideal. For basic networking tasks, Cat5e or Cat6 may suffice.
2. Distance:
For short distances under 100 meters, copper cables like Cat6a are a cost-effective choice. For longer distances, especially in industrial setups, fiber optic cables are the better option.
3. Environmental Conditions:
In low-EMI environments, unshielded cables (UTP) are sufficient. In high-EMI settings, such as factories or outdoor installations, shielded cables (STP) or fiber optics ensure reliable communication.
4. Future-Proofing:
If you’re building a network that needs to last several years, consider cables with higher bandwidth and speed capabilities, like Cat6a or fiber optics. These can handle the demands of future upgrades without requiring significant infrastructure changes.
5. Specific Applications:
For applications requiring Power over Ethernet (PoE), such as security cameras or wireless access points, copper cables are necessary. Fiber optics, while faster, don’t support PoE.
For example, a warehouse management system might use Cat6 cables for local connections to RFID readers and fiber optics for linking distant warehouse sections to the central control system.
In summary, choosing the right Ethernet cable involves balancing performance, cost, and application needs to ensure a reliable and efficient network.
Conclusion
Ethernet cables, whether copper or fiber, are the backbone of modern industrial networks. By understanding the types, features, and applications, you can select the best cable to meet your performance and environmental requirements. With the right choice, you’ll ensure reliable and future-ready connectivity for any industrial application.
