Key Takeaway

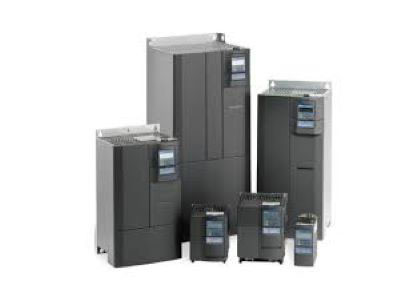

There are three types of Variable Frequency Drives (VFDs): Voltage-Source Inverter (VSI), Current-Source Inverter (CSI), and Pulse Width Modulation (PWM) Inverter. VSI is the most common type. It converts AC to DC using a diode circuit and stores energy in a capacitor. CSI uses inductors to control and convert the current. PWM Inverters are known for their high efficiency and precise motor control by rapidly switching the voltage on and off. Each type of VFD has unique applications and benefits, making them ideal for various industrial uses.
Current Source Inverter (CSI) VFDs
Current Source Inverter (CSI) VFDs are a type of variable frequency drive designed to control motor speed by converting alternating current (AC) to direct current (DC) and then back to AC. This process allows for precise speed regulation of electric motors. CSI VFDs are characterized by their ability to provide high power and torque, making them suitable for heavy industrial applications such as cranes, conveyors, and rolling mills. Their robustness ensures reliable operation even in demanding environments. However, one notable downside of CSI VFDs is their relatively larger size and higher cost compared to other VFD types. Despite this, their durability and performance in high-power applications make them a preferred choice in industries requiring consistent and robust motor control.
Voltage Source Inverter (VSI) VFDs
Voltage Source Inverter (VSI) VFDs are a cornerstone in modern industrial applications due to their unmatched versatility and efficiency. These VFDs operate by first converting alternating current (AC) to direct current (DC) and then using an inverter to transform the DC back into variable frequency AC. This dual conversion process enables precise control over motor speed and torque, essential for a wide range of applications.
VSI VFDs are celebrated for their compact size and cost-effectiveness. They are straightforward to use, making them a favorite in diverse industries, from HVAC systems to complex industrial automation setups. One of the significant advantages of VSI VFDs is their ability to provide smooth and efficient motor operation while minimizing harmonic distortion. This reduction in electrical noise not only ensures quieter operation but also extends the lifespan of motors, a critical consideration in industrial environments.
Moreover, the flexibility of VSI VFDs makes them suitable for both light-duty and heavy-duty applications. Whether you’re managing small machinery or large industrial motors, VSI VFDs offer an optimal balance between performance and cost. Their ease of use and robust performance make them a reliable choice for enhancing operational efficiency in various settings.
You May Like to Read
Pulse Width Modulation (PWM) VFDs
Pulse Width Modulation (PWM) Variable Frequency Drives (VFDs) are a cornerstone in modern industrial applications due to their exceptional efficiency and precise motor control capabilities. By rapidly switching DC voltage on and off and varying the width of the pulses, PWM VFDs regulate motor speed and torque with high precision. This technique ensures smooth motor operation, which is crucial in applications requiring exact speed control, such as robotics, machine tools, and conveyor systems.
One of the primary advantages of PWM VFDs is their ability to significantly reduce energy consumption while enhancing motor performance. The ability to fine-tune motor speed means less wasted energy and lower operational costs, making these drives not only effective but also economical. Additionally, their compact design and cost-effectiveness make them a popular choice across various industries, from manufacturing to automation.
PWM VFDs are also known for their reliability and longevity, which means less downtime and maintenance costs for businesses. Their versatility allows them to be used in a wide range of applications, providing consistent performance and improving overall system efficiency. For new engineers, understanding the role and benefits of PWM VFDs is essential for optimizing industrial processes and achieving operational excellence.
Comparative Analysis of VFD Types
When comparing CSI, VSI, and PWM VFDs, it’s crucial to consider application requirements, cost, size, and performance. Let’s dive into the details of each type:
CSI VFDs: Current Source Inverter VFDs are renowned for their high power and torque capabilities. They are perfect for heavy industrial applications, such as mining or steel manufacturing, where robust performance is essential. However, these VFDs come with a higher cost and larger size, which might be a drawback for smaller or budget-conscious operations.
VSI VFDs: Voltage Source Inverter VFDs offer a versatile and cost-effective solution. Their compact size and ease of use make them suitable for a wide range of applications, from simple motor control to more complex machinery. VSIs are commonly used in manufacturing and HVAC systems, providing a balanced mix of performance and affordability.
PWM VFDs: Pulse Width Modulation VFDs stand out for their precise control and efficiency. They are the go-to choice for applications that require fine speed regulation and energy savings, such as conveyor systems and pumps. PWM VFDs are highly efficient and help reduce operational costs by optimizing energy consumption.
Each type of VFD has its strengths and weaknesses. The choice largely depends on the specific needs of the application. Understanding these differences enables engineers to select the most appropriate VFD type, ensuring optimal performance and reliability. Remember, selecting the right VFD is not just about technical specifications but also about aligning with operational goals and budget constraints.
Applications of Different VFD Types
When selecting a Variable Frequency Drive (VFD), it’s essential to consider the specific needs of your application and industry. Let’s discuss the three main types of VFDs: Current Source Inverter (CSI), Voltage Source Inverter (VSI), and Pulse Width Modulation (PWM).
CSI VFDs are robust and reliable, designed for heavy-duty applications such as mining, metal processing, and large conveyor systems. They excel in environments where high power and durability are paramount. These VFDs provide excellent performance in controlling large, powerful motors, making them indispensable in industries requiring substantial torque and power.
VSI VFDs are highly versatile and widely used in HVAC systems, pumps, fans, and industrial automation. Their cost-effectiveness and ease of use make them a popular choice. VSI VFDs are known for their straightforward installation and maintenance, which simplifies their integration into various industrial processes. This versatility makes them suitable for a broad range of applications.
PWM VFDs offer precise motor control and superior energy efficiency, ideal for applications such as robotics, machine tools, and manufacturing processes. These drives provide accurate speed and torque control, which is critical for applications demanding high precision. PWM VFDs also contribute to energy savings, which is increasingly important in today’s industrial landscape.
By understanding the unique characteristics and advantages of each VFD type, you can ensure optimal performance and efficiency in your operations. Choosing the right VFD not only enhances system reliability but also improves overall productivity and cost-effectiveness.
Conclusion
Choosing the right VFD type is crucial for optimizing motor control and efficiency in industrial applications. It requires a thorough understanding of the specific requirements and constraints of the application. CSI VFDs are best for heavy-duty applications needing high power and durability. VSI VFDs offer a balance of performance and cost, suitable for a wide range of uses. PWM VFDs provide precise control and energy efficiency, ideal for applications requiring fine speed regulation. By carefully considering the advantages and limitations of each VFD type, engineers can select the most appropriate solution to enhance performance, reduce energy consumption, and ensure reliable operation in their industrial processes.
