Key Takeaway
The three main types of MCB (Miniature Circuit Breakers) are Type B, Type C, and Type D. Each type is designed to handle different levels of current surge.
Type B MCBs trip between 3 to 5 times the rated current. They are commonly used for residential circuits where loads are predictable, like lighting or heating systems. Type C MCBs trip between 5 to 10 times the rated current, making them suitable for circuits with higher inrush currents, like motors. Type D MCBs trip between 10 to 20 times the rated current. They are used in circuits with high inrush current, such as transformers or large industrial machines.
Choosing the right MCB type ensures better protection for your electrical system.
Overview of MCBs and Their Role in Electrical Protection

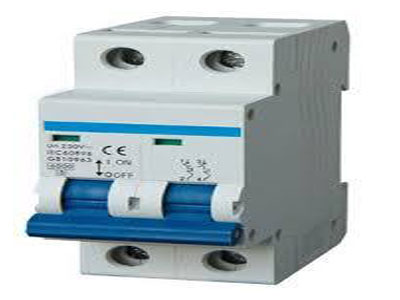

Before we dive into the specifics of each type of MCB, it’s important to understand what an MCB is and why it’s crucial for electrical systems. An MCB is an automatic electrical switch designed to protect circuits from damage caused by overload or short circuit. It is a fundamental component in electrical panels, whether in residential, commercial, or industrial settings.
MCBs work by detecting abnormal current flow and automatically disconnecting the circuit. This prevents wires from overheating, reducing the risk of electrical fires, equipment damage, or even electrocution. The choice of the right MCB depends on the nature of the electrical load and the specific protection needs of the circuit.
The three main types of MCBs—Type B, Type C, and Type D—differ in their trip characteristics, which determine how quickly they will react to an overcurrent situation. These characteristics are essential for selecting the right MCB for various electrical systems, which is crucial for optimizing safety and preventing unnecessary shutdowns.
Type B MCB: Features, Applications, and Trip Characteristics
The Type B MCB is designed to trip when the current exceeds 3 to 5 times the rated current. This makes it ideal for circuits with minimal inrush currents and where the load is relatively steady. The Type B MCB is often used in residential and light commercial applications where typical appliances or devices, such as lighting, small fans, and office equipment, do not generate large inrush currents at startup.
Features:
Fast response to overload conditions
Trip range: 3 to 5 times the rated current
Ideal for circuits with predictable, stable loads
Applications:
Type B MCBs are commonly used in lighting circuits, power outlets, and other non-inductive loads. These applications are typically characterized by small appliances and consistent electrical demand. For instance, in residential homes, Type B MCBs are perfect for circuits powering lamps, kitchen appliances, and low-power devices.
Trip Characteristics:
When the current exceeds 3 to 5 times the rated current, the Type B MCB will trip. The thermal mechanism (using a bimetallic strip) responds to prolonged overloads, while the electromagnetic mechanism reacts instantly to short circuits. This swift response time is crucial for protecting delicate equipment like electronics, which can be damaged by prolonged overcurrent conditions.
You May Like to Read
Features, Applications, and Trip Characteristics H2: Type C MCB: Features, Applications, and Trip Characteristics
Next, we have the Type C MCB, which is designed to trip when the current exceeds 5 to 10 times the rated current. This makes Type C MCBs suitable for circuits with inductive loads that require a higher inrush current at startup, such as motors and transformers.
Features:
Moderate trip response to overload conditions
Trip range: 5 to 10 times the rated current
Best for circuits with higher inrush currents
Applications:
Type C MCBs are used in industrial and commercial environments, where electrical equipment such as motors, pumps, compressors, and HVAC systems are involved. These devices often cause a temporary surge in current when they start up, which Type B MCBs would not be able to handle without tripping unnecessarily. Therefore, Type C MCBs are designed to tolerate these brief spikes in current.
Trip Characteristics:
Type C MCBs are able to handle higher inrush currents compared to Type B, thanks to their delayed response to overloads. The electromagnetic trip mechanism allows them to handle short circuits quickly, but they will not trip immediately when encountering short-term overloads. This makes them ideal for protecting circuits with equipment that experiences brief surges but doesn’t sustain high overload conditions for long periods.
Type C MCB: Features, Applications, and Trip Characteristics H2: Type D MCB: Features, Applications, and Trip Characteristics
The Type D MCB offers the highest trip range, tripping when the current exceeds 10 to 20 times the rated current. This makes it the most robust option, designed to withstand the highest inrush currents, such as those generated by large motors or specialized industrial equipment.
Features:
High trip threshold to handle extreme inrush currents
Trip range: 10 to 20 times the rated current
Suitable for high-inrush current applications
Applications:
Type D MCBs are typically used in industrial settings with equipment such as large motors, transformers, and welding machines. These applications often experience substantial inrush currents at startup, which could cause a Type B or Type C MCB to trip unnecessarily. The Type D MCB’s high tolerance for inrush currents ensures that it will only trip when there is a genuine overload or short circuit, not during regular operational spikes.
Trip Characteristics:
The Type D MCB uses both thermal and electromagnetic mechanisms, just like other MCB types. However, it is designed to withstand the highest levels of inrush current without tripping. This makes it ideal for heavy-duty applications where equipment like large motors needs to be protected from overloads while still accommodating their natural power surges. This characteristic helps prevent nuisance tripping and ensures consistent operation for industrial machinery.
Features, Applications, and Trip Characteristics H2: Type D MCB: Features, Applications, and Trip Characteristics H2: Choosing the Right Type of MCB for Different Electrical Installations
Selecting the right type of MCB for an electrical installation is crucial for ensuring safety, reliability, and efficiency. The key factor in choosing the correct MCB is understanding the nature of the load and the current characteristics it will encounter.
For residential circuits or light-duty commercial applications, Type B MCBs are ideal. These circuits are usually free from large inrush currents, and Type B MCBs provide fast, reliable protection for typical household devices.
Type C MCBs are best for commercial applications with equipment like motors and fluorescent lights, which may experience moderate inrush currents. These devices require protection from both overloads and short circuits but can handle brief spikes in current during startup.
For heavy industrial machinery or circuits with high inrush currents, such as large motors and transformers, Type D MCBs offer the best protection. Their high tolerance for surge currents ensures that they only trip during significant fault conditions, rather than due to normal operational surges.
By carefully assessing the electrical load and considering factors like inrush currents, engineers can select the most appropriate type of MCB for each application. This ensures that the circuit is adequately protected without unnecessary interruptions to equipment operation.
Conclusion
In summary, the three types of MCBs—Type B, Type C, and Type D—offer distinct features, applications, and trip characteristics tailored to different electrical protection needs. Whether you are working with residential, commercial, or industrial circuits, choosing the right MCB is essential for ensuring the protection of electrical systems from overloads and short circuits.
By understanding the unique characteristics of each MCB type, you can make informed decisions about which one is best suited for your application. Whether protecting small household appliances, large industrial motors, or complex commercial systems, the correct MCB helps safeguard equipment and ensure reliable, safe operation.
