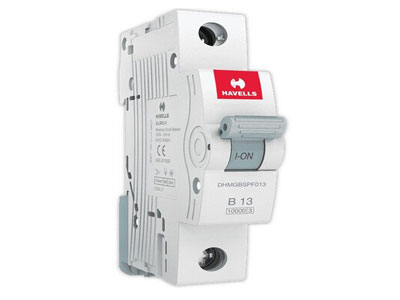

What Are The Symptoms Of A Bad MCB?

Key Takeaway

A bad MCB (Miniature Circuit Breaker) can show several symptoms. One common sign is that the MCB trips frequently, even when there is no apparent fault. This could indicate internal damage or a malfunction.

Another symptom is if the MCB fails to trip when there is an overload or short circuit. This means the MCB isn’t providing the protection it should, which is a serious safety risk. If you notice the MCB feels hot to touch or if there is visible damage, it’s a sign that it might be faulty. In such cases, it’s important to replace the bad MCB immediately to ensure safety.

Signs of Frequent Tripping and Resetting

One of the first symptoms of a bad MCB is frequent tripping or the need to reset the breaker continuously. While an MCB is designed to trip when there is a fault, it should not trip unnecessarily. Frequent tripping may indicate that the MCB is faulty and not responding appropriately to electrical loads or surges.

Several factors can cause an MCB to trip too often. For instance, the MCB’s internal mechanism could be worn out or damaged, leading it to trip prematurely. Sometimes, the MCB may trip even when there is no visible fault in the circuit, suggesting internal damage or malfunction.

Additionally, excessive friction or corrosion in the MCB mechanism could affect its ability to remain in a closed state. This leads to it tripping even under normal conditions. If you notice that your MCB is tripping frequently or requires constant resetting without any apparent overloads or faults in the circuit, it may be time to replace it.

Frequent tripping can disrupt the operation of the electrical system and should be addressed immediately to avoid further electrical hazards.

Unusual Heat Generation Around the MCB

Another key symptom of a bad MCB is unusual heat generation around the MCB. While it’s normal for the MCB to get warm during operation, excessive heat could indicate that the breaker is working harder than it should be, possibly due to internal issues.

If an MCB is continuously exposed to high temperatures, it could be a sign of an underlying issue. One common cause for this is poor contact between the MCB terminals and the electrical conductors. Over time, poor connections can lead to resistance, which generates heat. This could also result in the MCB tripping or malfunctioning.

Another reason for excessive heat could be overloading, where the MCB is handling more current than its rated capacity. However, if the circuit isn’t overloaded, and you’re still noticing significant heat around the MCB, this could indicate a defective MCB. Overheating can lead to further damage and even failure of the breaker, potentially causing more severe electrical problems.

If you notice any unusual heat coming from the MCB or the surrounding area, it’s important to inspect the wiring and check for faulty connections. Address the problem as soon as possible to avoid long-term damage to the MCB or the electrical system.

Difficulty in Switching the MCB On or Off

An MCB that’s hard to switch on or off is another sign that it may be faulty. Difficulty in switching the MCB could result from a variety of issues, including a jammed mechanism, damaged internal components, or worn-out contacts. When the MCB is unable to engage or disengage smoothly, it can result in improper functioning and unreliable protection for your electrical circuits.

This issue could be caused by dirt or debris inside the breaker, preventing the mechanism from functioning properly. Alternatively, the spring that facilitates the movement of the breaker’s switching mechanism could be worn out, preventing the MCB from snapping into the on or off position.

If the MCB does not stay in the “on” position, it will not provide the necessary protection for the circuit, leaving it vulnerable to faults. Similarly, if it’s difficult to switch it off when needed, you may face challenges during troubleshooting or maintenance.

Difficulty in operation is an important symptom to watch for. If the MCB is physically hard to operate, it’s crucial to replace it with a new one to ensure safety and prevent damage to the electrical system.

Electrical Appliances Not Receiving Power Despite MCB Being On

One of the more alarming symptoms of a malfunctioning MCB is when electrical appliances fail to receive power even though the MCB is in the “on” position. This could be due to several factors, such as internal failure within the MCB or a broken connection in the circuit that the MCB controls.

Even when the MCB is properly turned on, it may fail to supply power to the circuit if the internal switch mechanism is damaged or the contacts are not functioning correctly. In such cases, there may still be continuity through the circuit, but the MCB isn’t allowing current to pass through properly.

Wiring issues, such as loose connections or damaged wires, can also prevent power from reaching the appliances. However, if the MCB is working fine and the wiring is intact, but appliances are still not receiving power, it’s likely that the MCB itself is defective.

To check this, you may want to test the circuit with a multimeter to ensure that power is reaching the appliances. If there’s no power despite the MCB being on, replace the MCB immediately to restore the safety and functionality of the electrical system.

Visible Wear and Tear or Physical Damage to the MCB

Lastly, visible wear and tear or physical damage to the MCB is a clear indication that the breaker is no longer functioning properly. Over time, MCBs may show signs of aging, such as cracked plastic casing, burn marks, or discoloration due to excessive heat.

Physical damage may occur if the MCB has been exposed to extreme conditions or subjected to stressful electrical surges. In some cases, the MCB might be burned out, especially if it has been subjected to frequent overloads or short circuits. Such physical signs indicate that the internal components of the MCB are likely damaged beyond repair and need to be replaced.

Physical damage can also compromise the safety of the MCB, reducing its ability to trip properly in the event of a fault. It’s important to regularly inspect the MCB for any visible signs of damage, and if you spot any, replacing the MCB is the best course of action.

Conclusion

In conclusion, a faulty MCB can manifest in several ways. The most common symptoms include frequent tripping, unusual heat generation, difficulty switching on/off, lack of power to appliances, and physical damage. As an engineer, it’s essential to recognize these symptoms early to avoid unsafe conditions. By replacing a bad MCB promptly, you can ensure the continued safety and reliability of the electrical system.
