Key Takeaway
The main types of pneumatic cylinders include single-acting, double-acting, and rodless cylinders. Single-acting cylinders use air pressure to move the piston in one direction, with a spring returning it to the original position. Double-acting cylinders use air pressure to move the piston in both directions, providing more control and force.
Rodless cylinders, on the other hand, move a load along their length without a piston rod. Each type of cylinder has its advantages and is suited for different applications. Understanding the main types of pneumatic cylinders is essential for selecting the right one for specific tasks. Their versatility and reliability make them a popular choice in industrial applications.
Overview of Pneumatic Cylinder Types
Pneumatic cylinders come in several types, each designed for specific tasks based on the required force, speed, and application. One of the most common types is the single-acting cylinder, which uses compressed air to push the piston in one direction, while a spring or external force returns the piston to its starting position. These cylinders are used in applications requiring less complex movements, such as in material handling or clamping systems.
The double-acting cylinder is another widely used type that allows air pressure to act on both sides of the piston, enabling movement in both directions. These cylinders are ideal for applications requiring controlled movement in both forward and reverse motions, such as in robotic arms or assembly lines. Double-acting cylinders provide higher force and more precise control compared to single-acting cylinders.
Telescopic cylinders, often used in heavy-duty applications, feature multiple stages that extend sequentially. They are designed for tasks requiring long stroke lengths while maintaining a compact size when retracted. These cylinders are commonly found in equipment like cranes, dump trucks, and other machinery that requires both high force and extended reach.
Single-Acting vs Double-Acting Cylinders
Single-acting and double-acting cylinders are two of the most commonly used types in pneumatic systems. The primary difference between them lies in how the piston moves within the cylinder. A single-acting cylinder moves in one direction using compressed air, and its return stroke is typically achieved with a spring or gravity. These cylinders are generally simpler in design and are cost-effective, making them ideal for applications that require motion in just one direction, such as pressing, lifting, or clamping.
Double-acting cylinders, on the other hand, are more versatile. They use compressed air to drive the piston in both directions—both for the forward and return strokes. This mechanism allows for continuous motion in both directions without the need for external forces like springs. Double-acting cylinders are perfect for applications that require more precise control or where both directions of motion are needed, such as material handling, packaging, and automated systems. The ability to apply air pressure on both sides of the piston provides a higher level of control over speed and force, making double-acting cylinders a popular choice for industries requiring high efficiency.
While single-acting cylinders are typically less expensive and simpler to maintain, double-acting cylinders provide more flexibility and are often used in more complex or high-demand systems. Engineers must assess the nature of the task to decide whether the simplicity of a single-acting cylinder or the added control of a double-acting model is more suitable for the job.
You May Like to Read
Rodless Cylinders and Their Applications
Rodless cylinders are a specialized type of pneumatic cylinder that offers several advantages in specific applications. Unlike traditional cylinders, rodless cylinders do not have an external rod attached to the piston. Instead, the piston moves inside the cylinder, which allows for a more compact design. This feature makes rodless cylinders ideal for applications where space is limited or where traditional cylinders with long piston rods would be impractical.
Rodless cylinders are commonly used in automated systems, conveyors, and material handling applications where precise linear motion is required, but space constraints prevent the use of standard cylinders. They are particularly useful in machines where the cylinder needs to fit into tight spaces or where a longer stroke is required without increasing the overall size of the system. These cylinders are also highly flexible, with some models featuring multiple mounting options to suit various types of machinery or production lines.
Despite their compact size, rodless cylinders can offer similar or even greater force than traditional cylinders. However, their design requires specialized seals and components to maintain air pressure and prevent leaks, as the piston and seals are enclosed within the cylinder itself. While rodless cylinders can be more expensive due to their advanced design, their ability to save space and provide reliable performance makes them an essential choice for many industrial applications.
Telescopic Cylinders for Specialized Uses
Telescopic cylinders are a type of pneumatic cylinder designed to extend over a longer stroke length than a traditional cylinder. They consist of multiple nested cylinders, each of which extends progressively as the others retract. This design allows the cylinder to provide significant stroke lengths without requiring large amounts of space. As the cylinder extends, the outermost part of the cylinder provides additional force, allowing the piston to extend over great distances while maintaining a compact footprint.
Telescopic cylinders are commonly used in applications that require high force and extended travel, such as dump trucks, cranes, and lifting platforms. They are ideal for scenarios where the task at hand involves lifting or pushing heavy objects over long distances, while space is limited, such as in confined areas or vehicles. The ability to extend and retract in stages allows telescopic cylinders to offer a balance between power and space efficiency.
Despite their advantages, telescopic cylinders are often more complex and require careful maintenance. The multiple moving parts within the nested cylinders can lead to wear and tear over time, so ensuring the correct sealing and lubrication is crucial for maintaining their performance. Nevertheless, telescopic cylinders continue to be an essential solution in applications where extended stroke lengths and powerful forces are necessary but space constraints are present.
Rotary Pneumatic Cylinders
Rotary pneumatic cylinders are designed to convert the linear force generated by compressed air into rotational motion. These cylinders are commonly used in applications where a rotating movement is required rather than the linear motion provided by traditional cylinders. The principle of operation for rotary pneumatic cylinders is relatively straightforward: when compressed air is applied to the piston, it moves within the cylinder and produces rotational force.
These cylinders are widely used in industrial applications that involve rotating machinery components, such as opening and closing valves, turning parts in manufacturing processes, or rotating robotic arms. One of the main advantages of rotary pneumatic cylinders is their ability to generate a constant and reliable torque over extended periods of operation, making them essential in tasks requiring precision and consistency.

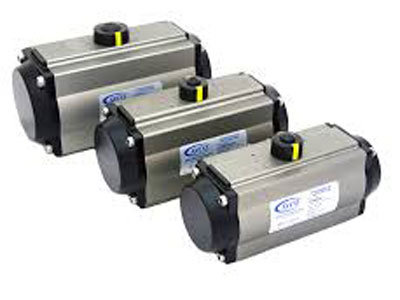

There are different types of rotary pneumatic cylinders, including rack and pinion actuators and vane-type actuators. Rack and pinion actuators convert the linear motion of the piston into rotary motion through a gear mechanism, while vane actuators use a vane inside the cylinder to create a rotational force. Both types have specific uses depending on the torque and speed requirements of the task at hand. Rotary pneumatic cylinders are crucial in applications that need a rotating force to drive industrial processes, making them indispensable in fields like automation and robotics.
Conclusion
Pneumatic cylinders come in various types, each offering unique advantages for different applications. Understanding these types is crucial for selecting the right cylinder for specific needs, ensuring optimal performance and efficiency.
By considering factors such as load, speed, and environment, users can effectively integrate pneumatic cylinders into their systems, enhancing productivity and reliability.
