Key Takeaway
There are several types of pneumatic valve actuators, including diaphragm, piston, and rotary actuators. Diaphragm actuators use flexible diaphragms to create motion. Piston actuators utilize a piston and cylinder system, using air pressure to move the piston and perform tasks like opening or closing a valve.
Rotary pneumatic actuators convert compressed air into rotational motion, ideal for valves requiring circular movement. Each type of actuator is designed for specific applications, with varying capabilities for force, speed, and control.
Spring Return Pneumatic Actuators
Spring return pneumatic actuators are a type of actuator where a spring assists in returning the actuator to its original position after it has been powered by compressed air. The main advantage of this system is its simplicity and reliability, especially in applications where fail-safe operation is critical. When the pneumatic air pressure is removed, the spring forces the actuator back to its default position, ensuring that the system can automatically reset without additional input. This is crucial in systems like valves, where you may need the valve to return to a closed position in case of air failure.
Spring return actuators are commonly used in industries where safety and reliability are essential, such as in the oil and gas sector, water treatment plants, and fire protection systems. The actuator’s design makes it highly effective for automated systems that require quick, reliable, and cost-efficient motion. Their compact nature also makes them suitable for confined spaces, ensuring versatility across various applications.
This fail-safe mechanism ensures that pneumatic systems remain operational even in the event of power loss or compressed air failure, making them an ideal choice in critical industrial applications.
Double Acting Pneumatic Actuators
Double acting pneumatic actuators are designed to perform both extension and retraction of the actuator shaft using compressed air. Unlike spring return actuators, which rely on a spring to return the actuator to its original position, double acting actuators require air pressure to move the actuator in both directions. This results in higher torque and more precise control over the actuator’s movements.
In a double acting actuator, compressed air is supplied to either side of the piston, with one side pushing the piston to extend the shaft and the other side pulling it back to retract. The air pressure on both sides can be precisely controlled, making these actuators ideal for applications requiring precise positioning and speed control.
Double acting actuators are commonly used in industrial automation, valve control, and robotic systems. They are particularly beneficial in applications requiring high force and continuous operation, where more controlled movements are essential. For instance, they are often used in the control of industrial valves, where precise and reliable control is required to ensure proper flow management in processes like chemical production or gas pipelines.
One of the major benefits of double acting actuators is their flexibility and reliability in a wide range of operational environments. They are typically used where more complex valve operation is needed, offering greater versatility compared to spring return actuators.
You May Like to Read

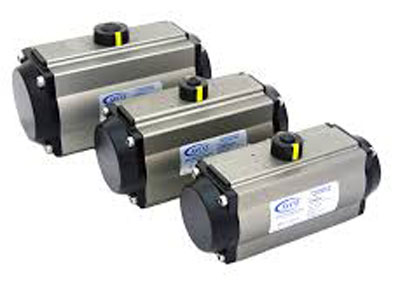

Rack and Pinion Actuators
Rack and pinion pneumatic actuators are widely recognized for their high torque output and precise control, making them ideal for valve automation in both small and large-scale operations. These actuators convert the linear motion of a piston into rotational motion through a mechanical gear system that includes a rack (a linear gear) and a pinion (a round gear). The interaction between these two components generates rotational force, which can be used to operate valves or other mechanisms in industrial systems.
When compressed air is introduced into the actuator, it drives the piston, which moves the rack back and forth. As the rack moves, the pinion gear rotates, causing the valve or mechanism to move accordingly. This conversion of linear to rotational motion provides smooth and efficient movement, making rack and pinion actuators perfect for applications requiring high torque and precise control of valve positions.
Rack and pinion actuators are typically used in large valve systems, where high torque is necessary, such as in oil and gas pipelines or chemical plants. Their compact design, combined with the ability to generate significant force, makes them versatile and reliable in demanding conditions. Additionally, these actuators are easier to maintain due to their simpler gear-driven design, reducing downtime and maintenance costs.
Rack and pinion actuators are also valued for their long service life and ability to handle high-pressure environments. Their reliable operation in harsh industrial settings makes them a popular choice in automation systems that require consistent and precise control over large valves.
Scotch Yoke Pneumatic Actuators
Scotch yoke pneumatic actuators are unique in their design, utilizing a yoke and pin mechanism to convert linear motion into rotational motion. This design is particularly beneficial for high-torque applications, as it allows for smooth, continuous rotation with a relatively compact actuator size. In a Scotch yoke actuator, the piston moves along a track, and the pin attached to the piston engages with a slot in the yoke. This engagement causes the yoke to rotate, thus producing the desired rotational movement.
One of the major advantages of Scotch yoke actuators is their ability to provide high torque output with minimal air consumption. The mechanical advantage of the Scotch yoke mechanism enables the actuator to generate significant force even in small sizes, making them suitable for applications requiring powerful motion control but with limited space.
These actuators are commonly used in rotary valve applications, where a continuous rotation is needed for controlling fluid or gas flow. They are particularly well-suited for industries such as oil and gas, chemical processing, and power generation, where reliable, high-torque actuators are essential for maintaining operational efficiency.
In addition to their high torque capabilities, Scotch yoke actuators are highly durable and offer minimal backlash, which is important in applications where precision is critical. However, they can be more complex to maintain than other types of actuators due to their intricate design, requiring careful attention to the moving parts to ensure continued operation.
Specialty Actuators for Custom Applications
Specialty pneumatic actuators are tailored for specific applications that require unique or non-standard features. These actuators are designed to meet the precise needs of industries with specialized requirements, such as high temperature, extreme pressure, or customized movements. Whether it’s a compact design for limited spaces, corrosion-resistant materials for harsh environments, or explosion-proof designs for hazardous areas, specialty actuators are built to perform optimally in demanding conditions.
For example, high-temperature actuators are used in industries like metallurgy, where traditional actuators may not withstand the intense heat. Similarly, actuators designed with stainless steel or ceramic coatings are used in chemical plants to resist corrosive materials. These actuators are often custom-engineered to handle unique fluid characteristics, such as abrasive or viscous fluids, that may require special seal materials or unique valve configurations.
Electro-pneumatic actuators, another type of specialty actuator, combine the precision of electrical control with the force generation of compressed air, offering highly accurate control for positioning and force regulation. These actuators are ideal for applications requiring integration with advanced control systems, such as robotics and automated production lines.
Specialty actuators are often found in industries with high-performance standards, such as aerospace, food processing, and pharmaceutical manufacturing, where the standard pneumatic actuators may not meet specific demands. These actuators offer flexibility, precision, and reliability, tailored to unique operational environments.
Conclusion
In conclusion, pneumatic valve actuators come in various types, each designed to meet specific operational needs. The main types include diaphragm, piston, and rotary vane actuators, each offering unique advantages in controlling valve movement. Diaphragm actuators are known for their simplicity and reliability, making them ideal for applications requiring precise pressure control.
Piston actuators provide higher force output and are suitable for larger valves, while rotary vane actuators offer compact designs for rotary applications. The diversity of pneumatic valve actuators ensures that industries can select the most appropriate type to optimize performance and efficiency. Overall, understanding the different types of pneumatic valve actuators is essential for achieving effective and reliable valve control in various industrial processes.
