Key Takeaway

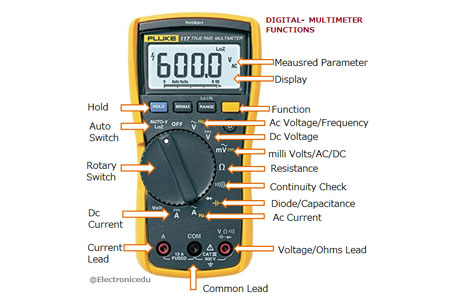

A multimeter’s basic functions include measuring voltage (both AC and DC), current, and resistance. It can also check for continuity, test diodes, and in some models, measure temperature or frequency.
These basic functions allow users to perform a wide range of tasks, from simple electrical checks to more complex diagnostics. The versatility of a multimeter makes it an indispensable tool for anyone working with electricity.
Measuring Voltage, Current, and Resistance
One of the primary functions of a multimeter is its ability to measure voltage, current, and resistance—three key parameters in any electrical circuit. These measurements are essential for troubleshooting, repairs, and testing the health of components.
To measure voltage, set the multimeter to the appropriate range (AC or DC) and connect the test leads across the component or circuit. For current measurement, you’ll need to set the multimeter to the current mode and connect it in series with the circuit. It’s important to switch to the correct range, as exceeding the limit can damage the multimeter.
Resistance measurement involves setting the multimeter to the resistance mode (Ω) and connecting the leads across the component. Ensure the circuit is powered off before testing resistance to avoid incorrect readings.
Modern digital multimeters often feature auto-ranging, making it easier for users to select the correct settings. Accurate measurements of these parameters not only help identify faults but also ensure circuits and components function as intended. A solid understanding of how to measure voltage, current, and resistance with a multimeter is a cornerstone of electrical maintenance and troubleshooting.
Testing Continuity for Electrical Connections
Continuity testing is one of the most useful features of a multimeter. It is used to check if an electrical circuit is complete or if there are any breaks, ensuring that current can flow uninterrupted. A multimeter in continuity mode emits a beep when it detects a complete circuit, which makes the process quick and easy.
To test continuity, begin by setting the multimeter to the continuity mode, typically indicated by a diode symbol or soundwave symbol. Next, place the multimeter probes on either end of the circuit or component you want to test. If the circuit is complete, the multimeter will emit a beep, indicating continuity. If there is no beep, it means there is an open circuit or break in the connection.
Continuity testing is essential for troubleshooting electrical systems. It helps identify faulty wiring, broken connections, or damaged components without having to disassemble the entire system. For instance, when diagnosing issues with household appliances or industrial machinery, continuity testing can pinpoint the exact location of a problem, allowing for faster and more efficient repairs.
You May Like to Read
Using the Diode Test Feature Effectively
The diode test feature on a multimeter is essential for checking the health of diodes, a type of semiconductor that allows current to flow in only one direction. Diodes are commonly used in power supplies, rectifiers, and signal processing circuits, so testing their functionality is critical.
To use the diode test function, the multimeter is set to the diode symbol (a triangle with a line at the tip) and the probes are placed on the diode’s terminals. A functioning diode will allow current to pass in one direction but not the other. When the multimeter probes are connected in the forward direction (positive probe on the anode and negative probe on the cathode), the multimeter will show a voltage drop, typically between 0.6V to 0.7V for silicon diodes.
If the multimeter shows a voltage drop in only one direction (forward bias) and an open circuit (no reading) in the opposite direction (reverse bias), the diode is working correctly. A faulty diode may show a reading in both directions (indicating it’s shorted) or no reading at all (indicating it’s open).
This feature is particularly useful for diagnosing issues in circuits that rely on diodes, such as rectifiers in power supplies or protection diodes in sensitive electronics. It allows technicians to quickly verify whether diodes are functioning properly without needing to remove them from the circuit.
Measuring Capacitance with Multimeters
Capacitance measurement is a critical function for multimeters, particularly when working with components like capacitors in electronics. A capacitor stores electrical energy in an electric field, and its ability to hold charge can be tested by measuring its capacitance value. To measure capacitance, a multimeter is typically set to the capacitance mode (often represented by the symbol “⎯⎯⎯”). The multimeter sends a small voltage to the capacitor and then measures how much charge the capacitor can hold over time, displaying the result in microfarads (μF), nanofarads (nF), or picofarads (pF), depending on the device’s range.
Capacitance testing is useful for identifying faulty capacitors, which are common in power supplies, motors, and other electronic devices. A damaged or degraded capacitor will often have a significantly lower capacitance than its rated value, which can lead to malfunctioning circuits. Measuring capacitance is a quick and effective way to determine if a capacitor is functioning properly. If a capacitor is found to be out of tolerance, it can be replaced before it causes issues like power loss, overheating, or circuit failure.
While not all basic multimeters offer capacitance measurement, many modern digital multimeters are equipped with this function, making them versatile for both general electrical work and more specialized tasks in electronics repair. Capacitance measurement adds another layer of functionality to a multimeter, enabling technicians to troubleshoot a wider variety of electrical issues effectively.
Frequency Measurement Capabilities in Modern Multimeters
Frequency measurement is a crucial function in modern multimeters, especially when dealing with AC signals or complex electrical systems. Frequency refers to the number of cycles a waveform completes in one second and is typically measured in hertz (Hz).
Frequency measurement capabilities in modern multimeters allow technicians and engineers to analyze the behavior of alternating current (AC) signals, which fluctuate periodically. Being able to measure frequency helps diagnose issues in power supplies, signal generators, and other AC-powered systems. Digital multimeters with frequency measurement functions offer significant advantages over older models that lack this feature. These meters use advanced signal processing to detect the frequency of an AC waveform and display it directly on the screen.
This feature is particularly important in applications like radio frequency (RF) testing, audio equipment maintenance, and power electronics, where the accurate frequency of a signal is essential for optimal operation. By measuring frequency, users can ensure that circuits are operating within their designed parameters and troubleshoot problems such as incorrect signal modulation or power supply issues. Many modern multimeters with frequency measurement capabilities also support additional functions like duty cycle measurement, which is the percentage of time a signal remains high or low in a cycle.
This is useful when working with pulse-width modulation (PWM) signals or other waveforms that are not purely sinusoidal. Frequency measurement is a powerful tool for professionals who need to assess and troubleshoot complex AC circuits, making it an essential feature in today’s advanced multimeters. |
Conclusion
The basic functions of a multimeter are centered around measuring voltage, current, and resistance. These core functionalities make multimeters an indispensable tool for diagnosing and troubleshooting electrical circuits. Voltage measurement helps determine whether a circuit is receiving the proper power supply, while current measurement ensures there’s no overload or underflow in the system. Resistance measurement is crucial for verifying component integrity and identifying broken or malfunctioning parts.
Beyond these core functions, most modern multimeters include additional features such as continuity testing, diode testing, and frequency measurement, which enhance their versatility. These functions are essential not only for professionals but also for DIY enthusiasts performing tasks like fixing home appliances or testing batteries. The simplicity and adaptability of these basic functions make multimeters a staple tool in any toolkit.
