Key Takeaway

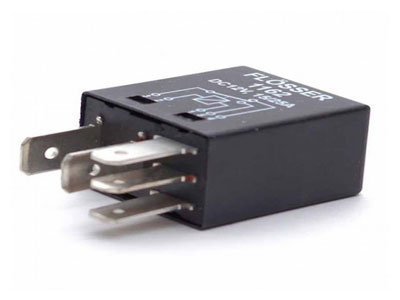

A relay is an electrically operated switch used to control the flow of current in a circuit. It consists of input terminals for control signals and output terminals for operating contacts. When current flows through the coil, it creates a magnetic field that moves an armature, opening or closing the contacts. Relays can have various contact forms, like make (normally open) or break (normally closed) contacts. They allow low-power signals to control high-power devices, providing electrical isolation and enabling complex control in circuits. Relays are essential for automating and protecting electrical systems.
Definition and Function
Relays are fundamental components in electrical engineering, providing critical control functions in various applications. For newly joined engineers, understanding the basic concepts of relays is essential.
A relay is an electrically operated switch used to control a circuit by opening and closing contacts in another circuit. Relays allow a low-power signal to control a high-power circuit, providing isolation between the control and load circuits. This capability makes relays invaluable in automation and control systems. For example, a small control signal can activate a relay to operate a large motor, ensuring the control circuit remains protected from high currents.
Types of Relays
Relays come in various types, each suited for specific applications, offering different benefits based on their construction and functionality. Understanding these types helps engineers select the most appropriate relay for their needs.
Electromechanical Relays (EMRs): EMRs use physical moving parts to open and close contacts. When the coil is energized, a magnetic field pulls the armature, which moves the contacts. EMRs are versatile and can handle high currents and voltages, making them suitable for industrial applications where robustness is essential. However, they have a slower switching speed and shorter lifespan due to mechanical wear and tear.
Solid-State Relays (SSRs): SSRs use electronic components instead of mechanical parts, offering faster switching and longer lifespans. They are ideal for applications requiring rapid and frequent switching, such as in automated manufacturing processes. SSRs also generate less electrical noise and are more resistant to shock and vibration. However, they can be more expensive than EMRs and may require heat sinks to manage heat dissipation.
Reed Relays: Reed relays are small and fast, using a magnetic field to actuate reed switches encased in a glass tube. They are highly reliable and offer very quick response times, making them suitable for applications like telecommunications and instrumentation. Their compact size allows them to be used in space-constrained environments, but they typically handle lower power levels compared to EMRs and SSRs.
Latching Relays: Latching relays maintain their state without continuous power, making them ideal for energy-saving applications. Once the relay is set to either the on or off position, it stays in that state until a pulse of energy is applied to change it. This feature is particularly useful in applications where maintaining the relay’s state is crucial during power failures, such as in alarm systems or memory circuits.
By understanding these types of relays, engineers can better match the relay to the application’s requirements, ensuring optimal performance and reliability.
Relay Components
Relays consist of several key components that work together to provide reliable switching functionality. These components include the coil, armature, contacts, and spring.
The Coil: The coil is a wire wound around a core that generates a magnetic field when energized with an electric current. This magnetic field is essential for the operation of the relay as it attracts the armature.
The Armature: The armature is a movable part that is drawn towards the coil when the magnetic field is generated. It acts as a bridge between the contacts, opening or closing the circuit. The movement of the armature is what enables the relay to switch states.
The Contacts: Contacts are the conductive parts that make or break the circuit. They are typically made of durable materials like silver alloys to withstand frequent switching and high current loads. When the armature moves, it either connects or disconnects the contacts, allowing or stopping the flow of electrical current.
The Spring: The spring ensures that the armature returns to its default position when the coil is de-energized. This default position can be normally open (NO) or normally closed (NC), depending on the relay design. The spring’s role is crucial for resetting the relay to its initial state, ready for the next operation.
These components work in unison to ensure the relay operates efficiently. When the coil is energized, the magnetic field pulls the armature, closing or opening the contacts. When the coil is de-energized, the spring returns the armature to its original position. Understanding these components helps in comprehending the fundamental operation of relays, which is vital for engineers in designing and troubleshooting electrical circuits.
Working Principle
The working principle of a relay is based on a straightforward yet effective mechanism. When a relay’s coil is energized with an electric current, it generates a magnetic field. This magnetic field attracts the armature, a movable part within the relay, towards the contacts. Depending on the relay’s design, this action either closes or opens the circuit, allowing or interrupting the flow of electrical current.
For example, in a normally open (NO) relay, the circuit remains open when the coil is not energized. Upon energizing the coil, the armature is pulled towards the contacts, closing the circuit and allowing current to flow. Conversely, in a normally closed (NC) relay, the circuit is closed when the coil is not energized, and energizing the coil opens the circuit, stopping the current flow.
When the coil is de-energized, the magnetic field dissipates, and a spring forces the armature back to its original position, reversing the contact state. This reset mechanism ensures the relay is ready for the next operation cycle.
This operation allows relays to control high-power loads using low-power control signals. The electrical isolation provided by the relay is crucial for protecting sensitive control circuits from high voltages and currents. For newly joined engineers, understanding this principle is fundamental, as it highlights how relays act as a bridge between low-power control systems and high-power operational circuits, ensuring both effective control and protection of electronic components.
Applications of Relays
Relays are pivotal in a myriad of applications, owing to their versatility and reliability. In industrial automation, relays control various machinery and processes. They switch motors, lights, and heaters, facilitating seamless operation of complex industrial systems. For instance, relays can start and stop conveyor belts or manage robotic arms, ensuring efficiency and safety in manufacturing environments.
In automotive systems, relays are indispensable. They manage critical functions such as starting engines, operating lights, and controlling climate systems. When you turn the key in your car, a relay activates the starter motor, enabling the engine to start. Similarly, relays control headlights, horn, and windshield wipers, providing reliable operation under diverse conditions.
Home automation systems also heavily rely on relays. They control lighting, security systems, and HVAC units, enabling homeowners to automate and remotely manage their homes. For example, a relay can turn on outdoor lights based on a timer or activate the heating system remotely through a smartphone app, enhancing convenience and energy efficiency.
In telecommunications, relays are used for signal routing and isolation, ensuring clear and reliable communication. They help in switching calls and managing data flow, providing critical infrastructure support.
Relays’ ability to switch high-power loads with low-power signals, coupled with their robustness, makes them indispensable across various sectors. For newly joined engineers, understanding these applications is crucial as it underscores the importance of relays in ensuring the functionality and efficiency of modern electrical systems.
Conclusion
Understanding the basic concepts of relays is essential for engineers and technicians. Relays provide a crucial link between low-power control circuits and high-power load circuits, offering isolation, signal amplification, and remote operation capabilities. By knowing the types, components, and working principles of relays, engineers can effectively select and implement relays in various applications, ensuring efficient and reliable system performance. This knowledge forms the foundation for more advanced studies and practical applications in electrical engineering.
