Key Takeaway

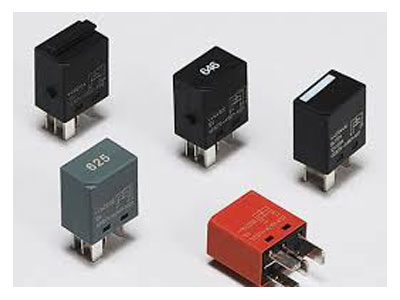

Relays are primarily made of a few essential materials that enable their functionality as switches. The core components include a coil of wire, usually copper, wrapped around a soft iron core to create a solenoid. This setup is housed in an iron yoke that facilitates a smooth path for magnetic flux. The movable part of the relay, the armature, is also typically made of iron. Contacts in the relay, which make or break the electrical connection, are often made of durable metals like silver or copper to ensure efficient conductivity and longevity. These materials work together to allow the relay to control larger power circuits with small electrical signals.
Materials Used for Relay Coils
The coils in relays are typically made from copper wire, which is chosen for its excellent electrical conductivity and flexibility. This copper wire is often insulated with materials like polyester or polyimide to prevent electrical shorts between turns of the wire. The thickness and length of the copper wire used can vary depending on the required resistance and current-carrying capacity of the relay. Understanding these choices is crucial for engineers as it directly impacts the relay’s electromagnetic properties and, consequently, its performance in various applications.
Contact Materials and Their Properties
The contacts in relays play a pivotal role, essentially making or breaking the electrical circuit. Typically made from materials like silver alloy or copper, these contacts are selected for their exceptional electrical conductivity and resistance to corrosion. Silver alloy, in particular, stands out due to its low contact resistance and high thermal conductivity. These properties are crucial for effectively managing the arc that occurs when contacts open or close, which can be particularly intense and potentially damaging.
Using silver helps ensure that the contacts can endure the high temperatures and electrical stresses associated with arcing without significant deterioration. This durability is vital for the relay’s ability to handle high currents reliably over prolonged periods, thereby ensuring consistent performance and longevity of the device.
For engineers, especially those new to the field, understanding the selection and properties of contact materials is essential. The right choice of material not only impacts the relay’s efficiency and safety but also influences its maintenance needs and lifespan. By integrating high-quality contact materials, engineers can significantly enhance the operational reliability and safety of electrical systems, making these decisions foundational to successful engineering practices.
Housing and Insulation Materials
Relay housings and insulation are crucial for both the protection and efficient operation of relays. The housing, often made from robust plastics like polyphenylene sulfide (PPS) or nylon, serves multiple functions. These materials are chosen for their exceptional mechanical strength and insulation capabilities, as well as their resistance to adverse environmental factors such as temperature fluctuations and chemical exposures. This resilience ensures that the relay’s delicate internal mechanisms are shielded from external stresses, which could otherwise compromise their functionality.
Similarly, the insulation within the relay is critical for maintaining operational integrity. Materials like silicone or epoxy resins are favored for their ability to withstand high temperatures and prevent electrical leakage. These insulating materials play a pivotal role in safeguarding the relay against internal electrical shorts, a common issue that can lead to malfunction or even catastrophic failure.
For engineers, especially those just starting their careers, understanding the significance of selecting appropriate housing and insulation materials is fundamental. These choices not only impact the durability and safety of the relay but also affect its reliability across various operating conditions. Making informed decisions about these materials is key to designing robust and safe electrical systems, ensuring they operate efficiently and withstand the rigors of their intended environments.
Importance of Material Selection in Relay Performance
The meticulous selection of materials for each component of a relay is crucial for ensuring optimal performance and durability. This process directly influences the relay’s response time, longevity, and its efficacy in various environmental conditions. For instance, contact materials need excellent conductivity and thermal properties to handle high currents and dissipate heat efficiently. Similarly, the coil’s wire must be both conductive and durable enough to withstand the magnetic forces repeatedly without degrading.
Engineers are tasked with striking a balance between material properties such as conductivity, thermal resistance, mechanical strength, and cost. Each choice impacts the relay’s functionality in subtle yet significant ways. For example, selecting a robust housing material can protect internal components from mechanical damage and environmental stress, thereby extending the relay’s operational life.
Understanding these material characteristics allows engineers, especially those new to the field, to tailor relay designs to specific applications, ensuring reliability under expected operating conditions. It’s not just about choosing the best material overall, but the best material for the job at hand. This careful consideration in material selection helps in crafting more efficient, reliable, and cost-effective relay solutions, fundamental for modern electrical systems.
Environmental Considerations in Material Choice
The environmental implications of material choices in relay manufacturing are garnering significant attention. As engineers, it’s essential to balance performance requirements with the environmental sustainability of the materials used. This involves considering the recyclability of materials like copper and silver, which are prevalent in relay components. Additionally, assessing the environmental impact of extracting and processing these raw materials is crucial, as these activities can significantly affect ecosystems.
Moreover, there is an increasing push towards minimizing the use of hazardous substances in relay manufacturing. This shift not only aligns with global environmental regulations, such as the Restriction of Hazardous Substances (RoHS) directive, but also enhances the marketability of relays as environmentally friendly products.
By integrating these environmental considerations into the material selection process, engineers can design relays that are not only efficient and reliable but also environmentally responsible. This approach not only meets current regulatory standards but also anticipates future environmental requirements, ensuring the sustainability of the products in a world increasingly focused on reducing ecological footprints. For new engineers, embracing these practices is not just about innovation but also contributing to a sustainable future in electrical engineering.
Conclusion
Understanding the materials that make up relays is crucial for engineers. Each material choice plays a strategic role in determining the relay’s functionality, durability, and suitability for specific applications. By comprehensively understanding the properties and impacts of these materials, engineers can design more reliable, efficient, and environmentally friendly relay solutions, enhancing the functionality of electrical systems and contributing to technological advancement.
