Key Takeaway

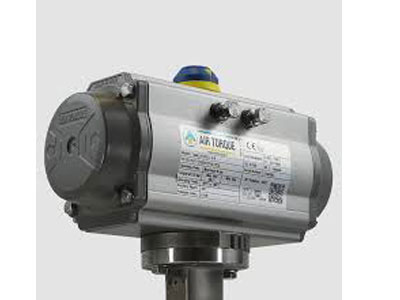

Pneumatic actuators are typically made of materials that can withstand pressure and provide durability. The main components include a metal body, usually made of aluminum or stainless steel, which offers strength and resistance to corrosion. The piston, which creates the motion, is often made from steel or other strong alloys.
Seals and gaskets, often made of rubber or elastomers, are used to prevent air leakage and ensure smooth movement. The actuator’s rod, which extends or retracts to produce motion, is usually made of stainless steel for added strength and resistance to wear. Some pneumatic actuators may also have a coating or plating, like chrome or anodizing, to enhance their durability and performance in harsh environments.
Materials Commonly Used in Pneumatic Actuator Construction
The construction of pneumatic actuators requires materials that can withstand the pressures of compressed air and the mechanical forces they generate. Commonly used materials include aluminum, steel, stainless steel, and brass. Aluminum is often used for the body of the actuator due to its light weight and corrosion resistance, making it ideal for applications where weight is a concern. Steel and stainless steel are used in areas of the actuator that experience higher stress or where durability is crucial. These materials ensure the actuator can endure constant movement and high pressure over time.
Seals and gaskets, typically made of rubber or specialized synthetic materials, are also key components in pneumatic actuators. These materials ensure that the actuator maintains an airtight seal, preventing air leaks that could compromise performance. The choice of seal material depends on factors like the operating environment and the specific properties of the compressed air, such as temperature and moisture content. Rubber seals are often used in standard conditions, while more advanced materials like fluorocarbon or silicone may be used in more extreme environments.
In addition to the materials used in the actuator’s body and seals, the internal components, such as pistons and rods, are often made from hardened steel or chrome-plated materials to resist wear and extend the actuator’s lifespan. This combination of materials ensures that pneumatic actuators can perform reliably in demanding environments, providing high performance, low maintenance, and a long operational life. By using the right materials, manufacturers can build actuators that offer optimal efficiency, durability, and resistance to corrosion, all critical factors in industrial applications.
Aluminum and Steel- Strength and Durability
Aluminum and steel are the two most commonly used metals in the construction of pneumatic actuators, and for good reason. Both materials offer a combination of strength, lightweight properties, and durability that make them suitable for a wide range of applications.
Aluminum is widely chosen for actuator bodies due to its lightweight nature, which is essential for applications where reducing weight is crucial. Despite being lightweight, aluminum offers excellent strength and resistance to corrosion, particularly when treated with protective coatings. This makes aluminum actuators an ideal choice for industries such as food processing, pharmaceuticals, and electronics, where clean, non-corrosive materials are necessary. Additionally, aluminum is cost-effective, making it a popular choice for industries looking to balance cost and performance.
On the other hand, steel is typically used when high strength and toughness are required. Steel actuators can handle heavier loads, extreme pressures, and harsher environments compared to aluminum. It is often used in applications that demand high durability, such as in automotive manufacturing, mining, and construction equipment. Stainless steel variants are particularly resistant to rust and corrosion, making them suitable for applications involving wet environments, marine settings, or industries requiring high cleanliness standards.
Together, aluminum and steel offer manufacturers flexibility in material choice, allowing them to optimize pneumatic actuators for both strength and cost-effectiveness depending on the application’s specific needs.
Use of Plastics and Composites for Lightweight Designs
The use of plastics and composite materials in pneumatic actuators has become increasingly prevalent due to their lightweight, durable, and corrosion-resistant properties. Plastics such as polyethylene, polypropylene, and PTFE (Teflon) are commonly used for components like seals, valves, and gaskets. These materials offer excellent resistance to chemical degradation and wear, which is essential in ensuring the longevity of pneumatic actuators. Plastics are also lightweight, which reduces the overall mass of the actuator, making them ideal for applications where minimizing weight is crucial.
In addition to plastics, composite materials—which combine the properties of different substances like metals, plastics, and fibers—are increasingly being used for actuator components. Carbon fiber composites and glass fiber composites are two examples of such materials, and they offer exceptional strength-to-weight ratios. These composites are particularly useful for actuator components that need to resist high stress while maintaining lightweight performance. These advanced materials can endure high temperatures, corrosive environments, and heavy-duty applications while keeping the actuator’s weight to a minimum.
The ability of plastics and composites to reduce weight without sacrificing performance makes them an attractive option for industries like aerospace, automotive, and robotics, where every ounce of weight saved can significantly improve efficiency and performance. Furthermore, their use in pneumatic actuators contributes to more energy-efficient systems, as lighter actuators require less energy to operate and move, thus enhancing overall system performance.
Material Selection Based on Application Requirements
The material selection for pneumatic actuators is a critical decision that depends heavily on the specific requirements of the application. Each material used in actuator construction has its strengths and weaknesses, so understanding the environmental and operational demands of the task at hand is essential for making the right choice.
For instance, if an actuator is to be used in high-temperature environments, materials like stainless steel or heat-resistant plastics are ideal. Stainless steel’s ability to withstand extreme heat makes it a top choice for industries such as oil and gas, chemical manufacturing, and aerospace, where heat exposure is common. Similarly, in environments where corrosive substances are prevalent, corrosion-resistant materials like aluminum alloys or coated steels are selected to ensure the actuator’s longevity and reliability.
In contrast, if the application requires a lightweight design for mobility or portability, aluminum and plastic composites are often used. Automotive and robotics industries, for example, favor lighter actuators to enhance the overall performance of their systems and reduce the energy required for movement. Food processing and pharmaceutical industries also prioritize non-toxic, clean materials that don’t interact with sensitive substances, making food-grade plastics a natural choice for these applications.
Ultimately, the material chosen must align with the specific operational conditions, including factors such as temperature, humidity, exposure to chemicals, load requirements, and desired longevity. Understanding these conditions is critical to selecting the appropriate materials that will enable pneumatic actuators to perform at their best while minimizing wear, failure, and maintenance costs.
Innovations in Actuator Materials for Enhanced Performance
As technology continues to evolve, so too does the range of materials available for pneumatic actuator construction. Recent innovations in actuator materials are aimed at improving performance, durability, and sustainability, enabling pneumatic actuators to meet the demands of increasingly complex and high-performance applications.
One such innovation is the development of advanced composite materials that combine the strength of metals with the lightweight properties of plastics and fibers. These carbon fiber and glass fiber composites offer exceptional strength-to-weight ratios, allowing actuators to deliver high performance while minimizing mass. These materials are increasingly used in industries such as aerospace, where weight reduction is a critical factor in improving efficiency and reducing fuel consumption.
Another major innovation is the use of self-lubricating materials in actuator components. Traditionally, pneumatic actuators rely on lubrication to reduce friction and wear, but advances in materials such as PTFE-based composites allow components to self-lubricate, reducing the need for maintenance and enhancing reliability. This innovation is particularly beneficial in applications that involve long-term operation or harsh environments, as it minimizes the risk of failure due to lack of lubrication or debris buildup.
Additionally, biodegradable materials are being explored as an eco-friendly alternative to traditional actuator materials. These environmentally sustainable materials aim to reduce the ecological impact of manufacturing and disposal, making pneumatic actuators a more attractive choice for companies seeking to enhance their green credentials.
As material technology advances, pneumatic actuators continue to evolve, offering enhanced capabilities, longer lifespans, and greater energy efficiency, making them even more effective in meeting the needs of modern industrial applications.
Conclusion
In conclusion, pneumatic actuators are typically made of materials that can withstand high pressures and offer durability in various industrial environments. Common materials include aluminum for lightweight applications and stainless steel for corrosion resistance, ensuring longevity and reliability.
Moreover, the choice of materials plays a critical role in the performance and maintenance requirements of pneumatic actuators. By selecting appropriate materials, industries can optimize their automation systems for specific conditions, enhancing efficiency and reducing downtime. As materials science advances, the development of new and improved materials continues to expand the capabilities and applications of pneumatic actuators, driving innovation in automation technology.
