Key Takeaway
An MCB (Miniature Circuit Breaker) is similar to a fuse but with key differences. Both are safety devices that protect electrical circuits from overloads and short circuits. However, a fuse works by blowing when too much current flows through it, while an MCB trips and can be reset.
Unlike a fuse, which needs to be replaced once it blows, an MCB can be easily reset after it trips, making it more convenient and cost-effective. A switch, on the other hand, simply turns the power on or off without offering any protection against overloads or faults. So, while an MCB is similar to a fuse in its function, it is more advanced, reliable, and reusable compared to a fuse or simple switch.
Overview of MCBs, Fuses, and Switches
To understand how MCBs, fuses, and switches compare, we need to first define each device.

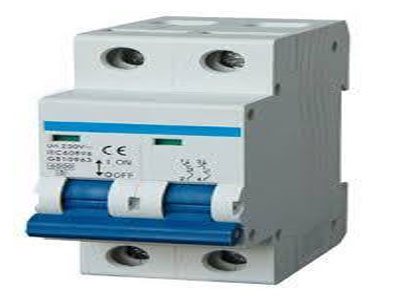

An MCB (Miniature Circuit Breaker) is an automatic electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. It operates by interrupting the flow of electricity when an abnormal condition is detected, such as an excess current or a fault.
A fuse is also designed to protect circuits from overcurrent. However, unlike MCBs, a fuse is a one-time-use device. When an overload or short circuit occurs, the fuse wire melts, breaking the circuit and stopping the current. Once a fuse blows, it must be replaced.
A switch, on the other hand, is a basic electrical component used to open or close a circuit. It does not provide protection against overloads or faults but simply allows or disallows the flow of current.
While MCBs and fuses both provide overcurrent protection, switches are just tools to control whether current flows through the circuit. In summary, MCBs and fuses serve protective functions, while switches are primarily for control.
Key Differences Between MCBs and Fuses in Electrical Protection
The main difference between an MCB and a fuse lies in their operation and reusability. While both devices are designed to protect against overcurrent, they operate differently.
An MCB automatically disconnects the circuit when it detects an overload or short circuit. After it trips, the MCB can be easily reset by simply flipping the switch back to the on position. This reusability makes MCBs highly convenient for modern electrical systems. They are commonly used in residential and commercial wiring, where a reliable, long-term protection solution is needed.
On the other hand, a fuse operates by using a metallic wire that melts when the current exceeds the specified limit. Once the fuse blows, it is permanently damaged and needs to be replaced. This is a one-time protection measure. While fuses are often used in older systems, they are increasingly being replaced by MCBs because they cannot be reused.
Another key difference is that MCBs are often more sensitive and respond faster to overloads and short circuits compared to fuses. However, fuses offer a lower cost, making them a more economical solution in simple applications where cost is a major concern.
You May Like to Read
How MCBs and Fuses React to Overload and Short Circuit
Both MCBs and fuses are designed to protect against overload and short circuits, but they react in different ways when these faults occur.
In the case of an overload, where the circuit is carrying more current than it is rated for, both devices will activate to prevent overheating and possible fire hazards. For MCBs, the overload causes a bimetallic strip to bend due to heat, which triggers the breaker to trip. This effectively cuts off the current, stopping the potential damage. MCBs can handle slightly higher overloads for a limited time before tripping, which can be beneficial in situations where the current is temporarily high but not dangerous.
For fuses, the current melts the fuse wire when it exceeds the safe limit. Once the fuse blows, the circuit is permanently disconnected. Unlike MCBs, fuses cannot be reset—they must be replaced with a new fuse each time they blow.
In the event of a short circuit, both devices react instantly to cut off the flow of electricity. MCBs use an electromagnetic trip mechanism that responds immediately to the sudden surge of current. Fuses, on the other hand, melt at a specific current level, which takes a bit longer to interrupt the flow.
While both devices offer protection, MCBs are more efficient and reliable in preventing electrical hazards over fuses, thanks to their faster response time and reusability.
Comparing the Functionality of MCBs vs. Electrical Switches
At first glance, a switch may seem similar to an MCB since both can open and close the circuit. However, their functions differ greatly when it comes to safety and protection.
A switch is a simple device that controls the flow of current, turning the power on or off. It doesn’t protect the circuit from overloads, short circuits, or any other types of faults. It merely allows or stops the flow of electricity, often used in conjunction with MCBs or fuses to control the system. For example, you might use a switch to turn off an appliance, but if there’s a fault, it’s the MCB that will trip to prevent further damage.
On the other hand, an MCB is designed to detect faults like overload or short circuit and interrupt the current flow automatically. While switches are important for control, MCBs are crucial for protection.
In summary, switches are used for basic control, whereas MCBs are used for safety and circuit protection. MCBs offer more advanced protection against electrical hazards, making them a more reliable option than simple switches in modern electrical installations.
Advantages of MCBs Over Fuses and Switches for Circuit Protection
The advantages of MCBs over fuses and switches are clear. Let’s take a look at why MCBs are a preferred choice in circuit protection.
MCBs are reliable, reusable, and cost-effective in the long term. Unlike fuses, they don’t need to be replaced after a fault occurs. Once the circuit fault is cleared, the MCB can be reset, making it ideal for frequent use. This reusability eliminates the hassle and cost of replacing fuses.
Moreover, MCBs are faster at detecting faults, providing quicker protection to both people and equipment. Their design also allows for more precise protection, as they can be tailored to specific current ratings.
On the other hand, switches simply don’t offer protection. They are critical for controlling the flow of electricity but do not provide any safety against overloads or faults. For safety, an MCB is the much better option.
In summary, MCBs offer superior protection compared to fuses and switches, especially when it comes to reliability, speed, and ease of use.
Conclusion
In the world of electrical protection, MCBs, fuses, and switches all have their roles, but they are not interchangeable. MCBs provide the most comprehensive protection, offering both overload and short circuit protection with the added benefit of reusability. While fuses provide effective protection, they are one-time use and need to be replaced after a fault. Switches, on the other hand, are merely used to control the circuit and don’t offer protection from faults.
When it comes to modern electrical systems, MCBs are the preferred choice, thanks to their reliability, speed, and cost-effectiveness in the long run. Understanding these differences will help you make the right decisions in ensuring safe electrical installations in both residential and commercial applications.
