Key Takeaway
A simple way to test your multimeter is to measure the voltage of a fresh battery. If the reading is close to the battery’s nominal voltage (e.g., 1.5V for a AA battery), it indicates that the meter’s basic voltage measurement function is working correctly.
Another simple test involves measuring the resistance of a known resistor. If the reading falls within the expected tolerance range of the resistor, it suggests that the meter’s resistance measurement function is also operating properly. These basic tests can help you quickly verify the functionality of your multimeter.
Signs That Your Multimeter Might Be Faulty
Recognizing signs that your multimeter might be faulty is essential for ensuring accurate measurements and maintaining safety. Common indicators of a faulty multimeter include inconsistent readings, physical damage, and unresponsive or erratic behavior.
If you notice any of these issues, it’s important to address them promptly to avoid inaccurate measurements and potential hazards. Regular maintenance and inspection of your multimeter can help identify problems early on. Additionally, calibrating your multimeter periodically ensures that it provides accurate readings. By staying vigilant and addressing any signs of malfunction, you can prolong the lifespan of your multimeter and ensure its reliability in various applications.

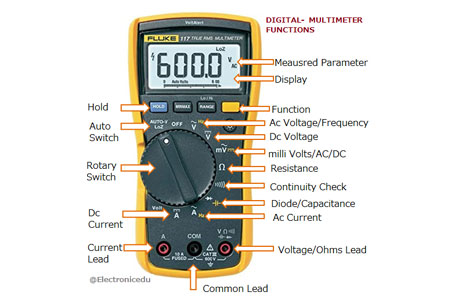

Step-by-Step Guide to Test Multimeter Functionality
Ensuring that a multimeter functions properly before use is crucial for accurate measurements. Here’s a simple step-by-step guide to test the functionality of your multimeter:
1. Set the Multimeter to a Known Setting: Start by setting your multimeter to measure voltage (DC or AC) or resistance, depending on the functionality you wish to test.
2. Check the Battery: Verify that the battery inside the multimeter is not depleted. If necessary, replace it with a fresh one to ensure the meter operates correctly.
3. Test the Continuity Function: Set the multimeter to the continuity setting (often represented by a diode symbol). Touch the two probes together. The multimeter should emit a tone, indicating that the probes are properly connected, and the circuit is continuous.
4. Measure a Known Voltage: Use a reliable voltage source, such as a battery, to test the voltage functionality of the multimeter. For example, a 9V battery should register around 9V when measured correctly.
5. Test the Current Functionality: For current measurement, ensure the multimeter is set to an appropriate amperage range. Insert the probes into the correct ports and measure the current from a known circuit. Be cautious to avoid overloading the multimeter.
6. Check Resistance Functionality: Finally, test the resistance function by measuring a known resistor. The reading should match the resistor’s rated value, ensuring that the resistance functionality is working correctly.
If the multimeter fails at any of these tests, it may require calibration, repairs, or replacement.
You May Like to Read
Common Tools and Techniques for Multimeter Testing
A multimeter is one of the most important tools for electrical testing, but it works best when used with other tools and correct techniques. Here’s a rundown of common tools and techniques to enhance your testing:
1. Test Probes: Ensure you are using high-quality test leads. Cheap or worn-out leads can cause unreliable readings. Banana plugs are commonly used for easy connection to multimeter ports, while sharp-tipped probes are ideal for more accurate testing on small components.
2. Alligator Clips: When conducting long-term tests or working with larger systems, alligator clips can make your setup more stable and reduce hand fatigue. These clips securely hold the probe in place for an extended period, making it easier to monitor readings over time.
3. Resistor Substitution Box: This tool is used to simulate various resistances for testing purposes. It’s particularly helpful when calibrating a multimeter or testing for specific resistance levels in a circuit.
4. Circuit Breaker Finder: For diagnosing faults or locating circuit breakers, using a circuit breaker finder alongside your multimeter will help identify connections quickly and safely.
5. Proper Technique: When measuring voltage, always ensure that your probes are securely connected and that the multimeter is set to the appropriate function. Always measure voltage across components, and never place multimeter probes in parallel when measuring current.
How to Calibrate a Multimeter for Accurate Readings
Calibration ensures that your multimeter gives precise and accurate readings, especially over time. Follow these steps for calibration:
1. Check Multimeter Specifications: Before calibration, check the manufacturer’s instructions to ensure you are calibrating your multimeter correctly.
2. Use a Known Reference: For voltage calibration, use a stable reference voltage (e.g., a precision voltage source or a known good power supply). For current calibration, use a reference that allows you to inject a known current.
3. Set the Multimeter to the Appropriate Function: Choose the setting (e.g., voltage or current) that matches the calibration you are performing. Use the highest range initially to avoid overloading the multimeter.
4. Adjust for Accuracy: Adjust the multimeter’s reading using the built-in calibration knobs or software interface (if applicable). Compare the reading on the multimeter with the known reference value and make adjustments until the multimeter shows the correct value.
5. Test Across Ranges: Once calibration is complete, test the multimeter across different measurement ranges to ensure it is accurate across the entire range of functions.
Troubleshooting Common Multimeter Issues
Even with regular use, multimeters can encounter issues that affect performance. Here’s how to troubleshoot common problems:
1. No Display or Blank Screen: If your multimeter’s screen is blank, check the battery. A low or dead battery is a common cause. Replace the battery and test again. If the issue persists, inspect the internal connections for any loose wiring.
2. Inaccurate Readings: If the multimeter is giving incorrect or fluctuating readings, the probes may be incorrectly connected or the range setting could be wrong. Verify connections, adjust the range, and ensure you’re using the appropriate port for the measurement.
3. Overload Warning: If you see an “OL” or overload indicator, it could mean the range is too low for the measurement you’re trying to take. Switch to a higher range for voltage or current to resolve this issue.
4. Burnt Fuse: If your multimeter doesn’t measure current properly, the internal fuse may be blown. A blown fuse can prevent accurate current readings. Open the battery compartment to check and replace the fuse.
5. Incorrect Display of Continuity or Resistance: If the multimeter is not showing continuity or resistance correctly, ensure that the probes are clean and making proper contact. Inspect for any visible damage to the probes.
Conclusion
Testing and maintaining your multimeter is an essential practice for every engineer. Regular inspections, proper calibration, and troubleshooting common issues ensure accurate and safe operation. A well-maintained multimeter isn’t just a tool—it’s a critical component of effective electrical testing.
