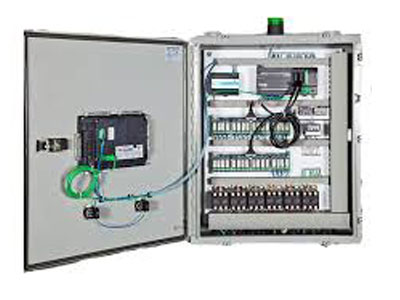

Key Takeaway
To test and troubleshoot relays in control panels, start by checking the power supply and connections. Ensure the relay’s coil is receiving the correct voltage using a multimeter. Inspect the relay for physical damage or loose terminals.
Next, test the relay’s functionality. For electromechanical relays, listen for a clicking sound when it is activated. Use a multimeter to check if the contacts switch correctly between Normally Open (NO) and Normally Closed (NC) positions. If the relay doesn’t operate as expected, it may need cleaning or replacement. Always follow safety precautions during testing and ensure the control panel is powered down before handling. Regular maintenance prevents relay failures.
Understanding Common Relay Failures and Symptoms
Before diving into testing and troubleshooting, it’s essential to know the common relay failures and their symptoms. Relays can fail due to various reasons, including mechanical wear, electrical overload, or environmental factors. Understanding the typical failure modes will help you quickly identify issues when they arise.
1. Contact Wear and Failure: One of the most common causes of relay failure is contact wear. The contacts within the relay are subjected to repetitive use, and over time, they can become pitted, burned, or eroded. Symptoms include flickering lights, intermittent circuit operation, or no response when the relay is energized.
2. Coil Failure: The coil within the relay is responsible for generating the electromagnetic field that moves the armature and closes the contacts. A coil failure can result in the relay not activating, even when the control circuit is energized. Symptoms of coil failure include inconsistent operation or a complete lack of response.
3. Mechanical Sticking: Sometimes, the relay’s mechanical parts can become stuck due to dirt, corrosion, or misalignment. If the relay doesn’t release or engage properly, it can lead to overheating or malfunctioning of the connected equipment. The symptom here is continuous activation or the inability to switch the relay on or off.
4. Overvoltage or Undervoltage: Excessive voltage or inadequate voltage can cause relay malfunctions. Symptoms might include dim lights, flickering power, or delayed relay response when voltage is unstable.
By recognizing these common failure symptoms, you can identify the underlying issues more quickly, saving time in diagnosing and fixing the problem.
Tools and Equipment Required for Testing Relays in Control Panels
Having the right tools and equipment is crucial when testing relays. Using improper tools can lead to inaccurate results or even further damage to the relay. Here’s a list of the basic tools you’ll need for a successful relay test:
1. Multimeter: A digital multimeter is the most essential tool for testing relays. It helps measure voltage, current, resistance, and continuity, making it easy to identify issues like open circuits, short circuits, or faulty connections in the relay.
2. Test Light: A test light is useful for checking whether a relay coil is being energized when expected. It provides a simple visual indicator of the relay’s electrical response, ensuring that the circuit is working properly.
3. Clamp Meter: This tool is used to measure the current in the relay’s load circuit. It can help identify overcurrent conditions, which might be the reason the relay isn’t operating correctly.
4. Insulation Resistance Tester: This device checks the insulation between relay contacts, ensuring there are no short circuits or leakage paths in the control panel wiring. Low resistance readings could indicate insulation degradation.
5. Relay Test Socket or Adapter: Some relays require specialized adapters or sockets for testing purposes. Using the right socket ensures that the relay is connected to the test circuit safely and securely.
Using these tools together will give you a comprehensive view of the relay’s condition, allowing for quick identification of faults.
Step-by-Step Process for Testing Relays for Proper Functionality
Testing relays systematically ensures you can identify faults quickly and efficiently. Below is a step-by-step guide to testing relays for proper functionality:
Step 1: Inspect the Relay Visually
Start with a visual inspection of the relay. Look for signs of damage, such as burned contacts, corrosion, or physical wear. Check the coil condition to ensure it is not cracked or damaged. Also, verify that the relay is correctly wired and all terminals are connected properly.
Step 2: Test the Coil Resistance
Using a multimeter, measure the resistance of the coil. A typical value for most relay coils is between 50 to 300 ohms, depending on the relay’s specifications. A reading of zero ohms indicates a short circuit, while infinite resistance means the coil is open and faulty.
Step 3: Test the Contacts for Continuity
Next, check the continuity of the relay’s contacts. Use the multimeter set to continuity mode to test the NO (Normally Open) and NC (Normally Closed) contacts. For NO contacts, there should be no continuity when the relay is de-energized. Once the relay is energized, the contacts should close, and continuity should be established. For NC contacts, the opposite is true—there should be continuity when the relay is off, and it should break when energized.
Step 4: Test the Relay Under Load Conditions
After testing the relay’s basic functionality, perform an operational test by energizing the relay and measuring the voltage across the contacts while under load. This step ensures that the relay can handle the intended load and that the contacts are making proper contact when the relay is activated.
Step 5: Evaluate Relay Timing and Functionality
Some relays are designed to have delayed actions or timing sequences. If your relay has a time delay feature, use a stopwatch to measure whether the relay responds within the specified time. Ensure that the relay reacts as intended, both in normal operation and under test conditions.
Troubleshooting Techniques for Identifying Faults in Relays
When a relay fails to operate correctly, troubleshooting requires a systematic approach to isolate the fault. Here are some effective troubleshooting techniques:
1. Check the Power Supply
Before delving into the relay itself, ensure the control circuit is powered. A common issue is a disconnected or faulty power supply, which might prevent the relay from receiving power.
2. Test the Relay Coil
As mentioned earlier, a damaged relay coil can prevent proper activation. Use your multimeter to check for continuity or the appropriate resistance across the coil. If there’s no continuity or if the resistance is out of range, the coil is likely faulty.
3. Inspect Relay Contacts
Relay contacts can become pitted, burned, or oxidized, especially in high-current applications. If you find that the contacts aren’t operating properly, clean them with contact cleaner or replace them if the damage is extensive.
4. Use a Test Light
If you’re having difficulty determining whether the relay is being energized, use a test light to check for power at the relay’s coil. This can confirm if the issue lies within the control circuit or if the relay itself is faulty.
5. Inspect the Relay’s Mounting and Connections
Sometimes, poor connections or improper mounting can prevent a relay from functioning. Make sure the relay is securely mounted, and all wires and terminals are properly connected. Loose connections can cause intermittent operation.
Preventive Measures to Avoid Relay Failures in Control Panels
Preventive maintenance is key to prolonging the life of relays and ensuring the reliability of control panels. Here are some tips to avoid relay failures:
1. Proper Sizing of Relays
Ensure that the relay is appropriately sized for the load it’s controlling. Using a relay that’s too small for the application can lead to overheating, while a relay that’s too large might result in slower response times.
2. Regular Inspections
Perform routine inspections to identify any wear or corrosion on contacts and coils. A quick visual inspection can help catch issues early before they lead to system failures.
3. Protect Relays from Overvoltage
Install surge protection devices to protect relays from voltage spikes. Overvoltage can cause coil burnout or contact damage, leading to early relay failure.
4. Proper Ventilation
Relays generate heat during operation, so ensure they are installed in well-ventilated areas. Excessive heat can degrade the components and reduce the relay’s lifespan.
5. Avoid Overloading the Circuit
Relays are rated for specific current loads. Avoid exceeding these limits, as overloading can cause the relay to fail prematurely. Use fuses or circuit breakers to prevent excessive current.
Conclusion
In conclusion, testing and troubleshooting relays in control panels is an essential skill for engineers in the industry. By understanding common relay failures, having the right tools, and following a systematic testing and troubleshooting process, you can ensure optimal performance and avoid system failures. Preventive maintenance and proper relay selection further ensure reliable operation. Always remember that proper testing, attention to detail, and ongoing maintenance are key to keeping relays functioning efficiently.
