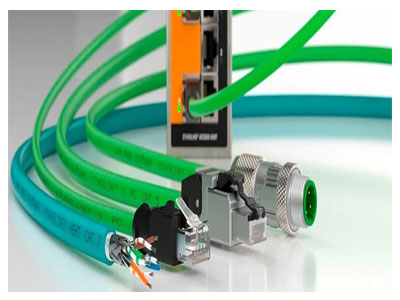

Key Takeaway
Scaling Industrial Ethernet networks for large industrial facilities requires strategic planning and robust infrastructure. Start by segmenting the network into manageable zones using VLANs (Virtual LANs). This reduces congestion and ensures better traffic management. Deploy managed switches to prioritize critical data and enable Quality of Service (QoS) settings for real-time applications.
Use fiber optic cables for long-distance connections to maintain high-speed data transfer across large facilities. Implement redundancy with ring or mesh topologies to prevent downtime in case of failures. Centralized network monitoring tools are essential for tracking performance and detecting issues early. Ensure compatibility between devices and protocols to support seamless integration as the network grows. These practices ensure a scalable, reliable Industrial Ethernet network that supports the demands of large industrial operations.
Planning for Scalability in Industrial Ethernet Networks
The first step in scaling an industrial Ethernet network is designing for future growth. From the outset, it’s essential to account for the possibility of network expansion as the facility grows. A scalable Ethernet network is one that can adapt to new devices, increased data traffic, and higher operational demands over time.
Begin by assessing your current and projected data needs. This involves understanding the number of devices that will connect to the network, the volume of data they will generate, and the potential for future system integration. Ensure that your network design allows for easy expansion, such as including extra network ports and additional bandwidth capacity. Use modular network devices, like switches and routers, that can easily integrate additional components as the network scales.
Planning for scalability also involves anticipating future technology changes. For example, incorporating IoT devices and automation systems might increase data requirements, so choosing Ethernet equipment that can handle higher speeds and more devices is crucial.
Consider leveraging cloud-based systems for network monitoring and control, as these allow for centralized management, making it easier to monitor, scale, and troubleshoot the network remotely as the facility expands. This centralized control can also help reduce manual labor and make scaling the network more cost-effective.
Ensuring Proper Bandwidth Allocation for Large Networks
In large industrial facilities, bandwidth management is crucial to prevent bottlenecks and ensure smooth data flow across the network. Proper bandwidth allocation ensures that critical applications have the necessary resources to operate efficiently without competing for bandwidth with less important data traffic.
To manage bandwidth effectively, start by segmenting the network into different VLANs (Virtual Local Area Networks) based on the type of data or devices. For example, you can assign production systems to one VLAN, office devices to another, and safety systems to a third. This ensures that critical data, such as real-time monitoring or control data, is given priority over less time-sensitive traffic like emails or file transfers.
Another effective method for managing bandwidth is Quality of Service (QoS), which prioritizes data traffic based on the importance of the application. QoS allows you to allocate more bandwidth to time-sensitive applications (e.g., automation systems or video surveillance) and limit bandwidth for lower-priority applications (e.g., regular office tasks).
As your network expands, ensure you have the right switches and routers to support high-bandwidth requirements, especially in areas with heavy data traffic. Consider 10G Ethernet or even 100G Ethernet for backbone connections to support high-speed data transfer across large facilities.
Regularly monitor bandwidth usage and adjust the allocation as needed to accommodate network growth and changes in demand. Proper bandwidth management helps optimize network performance, ensuring that your Ethernet network can handle future scalability without slowdowns or downtime.
Deploying Redundant Switches for Network Reliability
Deploying Redundant Switches for Network Reliability
Layered Architecture for Efficient Network Scaling
A well-designed layered architecture is essential for scaling Ethernet networks in large industrial facilities. Layered architecture divides the network into different levels or layers, each with a specific function. This separation allows for better organization, easier management, and more efficient scaling.
The access layer is where devices like sensors, PLCs, and other edge devices connect to the network. This layer is responsible for managing the data collection and transmission from these devices to the higher layers. By using managed switches in this layer, you can ensure traffic prioritization, VLAN segmentation, and effective monitoring of connected devices.
The distribution layer aggregates data from the access layer and ensures communication between different areas of the facility. This layer can consist of higher-capacity switches and routers that handle more significant data transfers, while also providing redundancy and load balancing.
The core layer is the backbone of the network. This layer carries high-bandwidth traffic and connects the entire network to other parts of the facility or external networks. As the network grows, expanding the core layer with high-speed 10GbE or 100GbE Ethernet connections allows you to handle the increased data traffic efficiently.
Using a layered approach makes it easier to scale the network without disrupting existing operations. Each layer can be expanded independently, allowing you to add devices or bandwidth as needed, while maintaining the efficiency of the network.
Challenges and Solutions for Scaling Ethernet in Expansive Facilities
Scaling Ethernet networks in expansive industrial facilities comes with several challenges. These can range from physical limitations, such as the vast distance between devices, to technological issues, like maintaining consistent performance with a growing number of connected devices.
Distance limitations are one of the main hurdles. Ethernet, particularly traditional copper cables, has a limited range of about 100 meters. For large facilities, this means deploying additional switches or using fiber-optic cables, which can cover much longer distances without losing signal quality. Fiber-optic connections can extend over kilometers, making them ideal for sprawling industrial campuses.
Another challenge is device density. As more devices are connected to the network, the risk of network congestion increases. To address this, high-density switches with enough ports to handle large numbers of devices should be deployed in strategic locations.
Network management becomes more complex as the network grows. With thousands of devices connected, monitoring and controlling the entire network can be a daunting task. Implementing a centralized network management system can help streamline the process. These systems provide real-time visibility into the network’s health, allowing for quick identification of issues and easy configuration changes across the entire network.
To overcome these scaling challenges, it’s essential to carefully plan the network architecture, use the right equipment, and ensure regular maintenance and monitoring.
Conclusion
Scaling industrial Ethernet networks in large facilities requires strategic planning, proper equipment selection, and ongoing maintenance. By designing scalable architectures, ensuring proper bandwidth allocation, deploying redundant systems, and addressing physical limitations, you can build a reliable and efficient network that grows with your operations. The key to success is a proactive approach—anticipating future needs and planning accordingly.
Following these best practices will help you meet the increasing demands of a growing facility, ensuring seamless communication and data transfer across all levels of your industrial network. With careful management, your Ethernet network will support your operations, providing a robust foundation for continued expansion and success.
