Key Takeaway
To measure battery health, set the multimeter to DC voltage. Place the black probe on the negative terminal and the red probe on the positive terminal of the battery.
Ensure the polarity is correct. A healthy battery should show a voltage close to its rated value. For example, a 12V battery should read near 12V. If the reading is significantly lower, the battery may be weak or discharged.
Importance of Testing Battery Health Regularly
Regularly testing battery health is crucial for maintaining the performance and longevity of electronic devices. Batteries can degrade over time, leading to reduced efficiency and potential failures. By testing battery health, users can identify when a battery needs replacement or maintenance, preventing unexpected device shutdowns. This practice is especially important in critical applications where battery failure can lead to significant disruptions.
Regular testing helps in ensuring that batteries operate at optimal levels, thus prolonging their lifespan. In addition, it allows users to plan for replacements and reduce the environmental impact associated with battery disposal. Overall, frequent battery health checks are a proactive approach to maintaining device reliability.

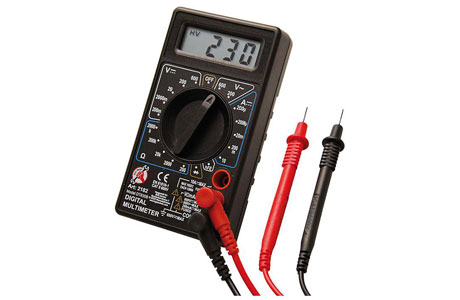

Preparing Your Multimeter for Battery Testing
Testing batteries with a multimeter is a common task for engineers, electricians, and technicians. To ensure accurate results, it’s important to follow the proper setup process:
1. Set the Multimeter to DC Voltage: Since most batteries output DC voltage, set the multimeter to the DC voltage setting, usually marked with a “V” and a straight line (—).
2. Select the Voltage Range: Choose a voltage range that exceeds the voltage rating of the battery. For example, if you’re testing a 9V battery, set the multimeter to a voltage range of 20V or higher.
3. Connect the Probes: Connect the red probe to the positive terminal of the battery and the black probe to the negative terminal. Ensure that the probes have a secure contact with the terminals.
4. Check the Reading: A fully charged battery should display a voltage close to its nominal voltage (e.g., around 1.5V for AA batteries, or 9V for a 9V battery). If the voltage is significantly lower, the battery is weak and may need replacement.
By correctly setting up your multimeter for battery testing, you can easily assess the condition of the battery and ensure reliable performance in your devices.
Step-by-Step Instructions for Measuring Voltage and Capacity
Measuring voltage and capacity is fundamental for many electrical tests. Let’s break down the steps for each measurement:
Measuring Voltage (AC or DC):
1. Set the Multimeter to Voltage Mode: Turn your multimeter dial to AC (V~) for alternating current or DC (V-) for direct current.
2. Insert the Probes: Insert the black probe into the COM port and the red probe into the VΩma port.
3. Place Probes on the Circuit: For voltage measurement, place the black probe on the negative terminal (ground) and the red probe on the positive terminal of the circuit.
4. Check the Reading: The voltage value will appear on the digital display. Ensure that you are reading the correct unit (volts, millivolts, etc.). In AC voltage measurements, the display will show an AC voltage waveform.
Measuring Capacity (Capacitance):
1. Set the Multimeter to Capacitance Mode: Turn your multimeter dial to the capacitance (F) setting.
2. Connect the Probes: Insert the black probe into the COM port and the red probe into the VΩma port.
3. Discharge the Capacitor: Before testing, ensure that any capacitor is fully discharged to avoid damage to the meter or the capacitor itself.
4. Place the Probes on the Capacitor: Connect the probes to the capacitor leads. The black probe should go to the negative terminal and the red probe to the positive terminal.
5. Read the Display: The capacitance value will be displayed on the screen in farads (F) or its sub-units like microfarads (µF). Compare this value with the capacitor’s specified rating to see if it’s functioning properly.
Identifying Signs of a Weak or Failing Battery
Batteries play a crucial role in providing power to various devices, but they can degrade over time. Knowing how to identify a weak or failing battery can save you from unexpected downtime. Here’s how you can spot the signs:
1. Check Voltage Output: Use your multimeter to measure the voltage across the battery terminals. If the voltage is significantly lower than the rated voltage, this could be a sign of battery depletion. For example, a 12V battery should measure close to 12V when fully charged.
2. Rapid Voltage Drop Under Load: A good battery should maintain its voltage output even when under load. If the voltage drops dramatically when a load is applied, this indicates that the battery cannot hold a charge effectively.
3. Check for Battery Leakage: Leaking batteries can cause significant damage to the device and the battery compartment. If you notice any corrosion around the battery terminals or the appearance of fluid, it’s time to replace the battery.
4. Test for Low Current Output: In some cases, batteries may still show an acceptable voltage but fail to supply sufficient current. Use your multimeter to test the current output and check if it matches the battery’s specifications. Low current can indicate internal degradation or high internal resistance.
5. Battery Temperature: If the battery feels unusually warm or hot to the touch, it could indicate a faulty cell or an internal short. This is a safety hazard, and the battery should be replaced immediately.
Tips for Maintaining Optimal Battery Performance
Multimeter performance heavily relies on its battery condition. Start by using high-quality batteries to ensure consistent power delivery. Regularly check battery levels and replace them as needed to avoid inaccuracies.
If your multimeter has a low-battery indicator, pay attention to it. Ignoring it can lead to unreliable readings. For devices not used frequently, removing the batteries during storage prevents leakage, which can damage the internal components.
Extreme temperatures can also affect battery performance. Store and use the multimeter within the recommended temperature range to extend battery life. Lastly, consider rechargeable batteries for frequent use, as they are cost-effective and environmentally friendly.
Conclusion
In conclusion, using a multimeter to measure battery health is a simple and reliable method for determining whether a battery is still operational. By measuring the voltage and comparing it to the battery’s rated output, you can quickly assess its charge level and overall condition.
For accurate results, ensure that your multimeter is set to the appropriate voltage range, and take readings both when the battery is under load and when it’s idle. This dual approach will give you a clearer picture of the battery’s performance. Regular testing will also help you identify weak batteries before they fail completely, preventing inconvenience and unnecessary replacements.
