Key Takeaway
To calculate the MCB (Miniature Circuit Breaker) size, you need to consider the total load current of the circuit. First, add up the wattage of all devices connected to the circuit. Then, divide the total wattage by the voltage (typically 230V for residential). This gives you the current in amps.
For example, if the total load is 2000W, divide by 230V, which equals 8.7 amps. The MCB size should be slightly higher than the calculated current to avoid tripping under normal conditions. In this case, a 10A MCB would be appropriate.
Also, factor in the type of load and the cable size. The MCB should be chosen based on the load, ensuring it protects the circuit while allowing normal operation. Always round up to the nearest standard MCB rating for safety.

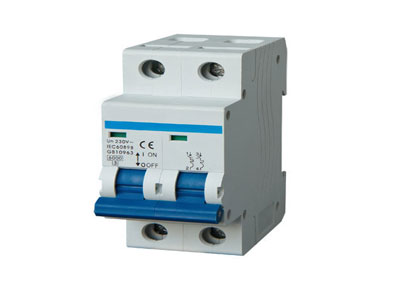

Understanding the Basics of MCB Ratings and Sizing
An MCB (Miniature Circuit Breaker) is a device designed to protect electrical circuits from overload and short circuits. The MCB rating indicates the amount of current that the breaker can carry without tripping. Typically, the MCB rating is marked on the device and comes in various amperage values, such as 6A, 10A, 16A, 20A, 32A, etc.
To calculate the right MCB size, understanding its function is crucial. The MCB is designed to protect wiring and electrical appliances connected to it by breaking the circuit in case of an overload or short-circuit. The rating of the MCB should be based on the expected load current in the circuit. If the load exceeds the MCB’s rating, the MCB will trip to prevent further damage.
It is important to note that the MCB size is typically not chosen based on the individual components but rather based on the total current the system will draw. The breaker needs to be capable of handling these currents without tripping during normal operation but should react instantly when faults arise.
The most critical factors influencing the sizing of an MCB include continuous load, fault protection, and the application type (e.g., lighting, motors, etc.).
Key Factors to Consider When Calculating MCB Size
When selecting the appropriate MCB size, there are several factors that you must take into account to ensure reliable protection and avoid unnecessary trips. Let’s break them down:
Load Current: The first step in determining the correct MCB size is calculating the load current for the circuit you are protecting. Load current depends on the total power consumed by the devices in the circuit. For example, if you have lighting circuits or home appliances, you’ll need to add up the total wattage and divide it by the voltage to calculate the load current. The basic formula to calculate the load current is:
Load Current (I)=Total Power (P)/Voltage (V)
It’s essential to consider that the load current should never exceed the MCB’s rated current.
Type of Circuit: The type of electrical circuit also plays a significant role in MCB sizing. For instance, a circuit supplying motors will require a breaker with a higher inrush current rating because motors often demand a significant surge of current when starting. On the other hand, circuits with lighting or appliances have much lower current demands.
Ambient Temperature: The ambient temperature in which the MCB operates can affect its performance. If the temperature is too high, the breaker may trip at a lower current than its rating. Always account for the environmental temperature when calculating the breaker size.
Safety Margin: A safety margin is important to ensure that the MCB can handle transient conditions without tripping unnecessarily. A common practice is to add a margin of 20-25% over the calculated load current. This ensures the circuit remains safe during temporary surges without tripping the breaker prematurely.
Cable Size and Rating: The cable’s current-carrying capacity should also be matched with the MCB rating. If the cable’s current rating is lower than the MCB rating, the wire could overheat before the MCB trips. Hence, the MCB should always be rated based on the weakest component of the circuit, typically the cable size.
By understanding these key factors, you can begin to make informed decisions about sizing your MCB for each circuit.
You May Like to Read
How to Calculate MCB Size Based on Load Current
To properly size an MCB, you need to start by calculating the load current for the circuit. Here’s the process, step by step:
Determine Total Power of the Load: First, you need to know the total power consumed by the electrical devices connected to the circuit. For example, if you have 10 light bulbs rated at 100W each and an air conditioner rated at 2 kW, the total power is:
Total Power (P)=10×100 +2000 =3000
Calculate Load Current: Once you have the total power, you can calculate the load current using the formula:
Load Current (I)=Total Power (P)/Voltage (V)
Assuming a voltage of 230V (common in many countries), the load current will be:
=3000 /230 =13.04
Select the Appropriate MCB Rating: After calculating the load current, the next step is to select an MCB rating that is slightly higher than the load current. In this case, since the load current is 13.04A, you would choose an MCB with a rating of 16A, as this would accommodate the load while providing safe operation.
Consider Inrush Current (for Motors): If your circuit involves motors or devices that cause inrush currents (i.e., an initial surge of current when switched on), you may need to select an MCB with a higher breaking capacity or a time-delay feature to avoid nuisance tripping.
The key here is to always round up your calculated load current to the next standard MCB rating. This ensures your MCB will safely handle normal operating conditions without tripping unnecessarily while still offering protection.
The Role of Short Circuit Rating in MCB Size Calculation
When selecting an MCB, it is crucial to consider the short-circuit rating. Short circuits are one of the most dangerous faults in an electrical system, and the MCB must be able to interrupt the fault current without damaging itself or the rest of the system.
What is Short-Circuit Rating? The short-circuit rating is the maximum fault current that an MCB can safely interrupt without breaking down or causing damage. It is specified in kA (kiloamperes) and indicates the MCB’s ability to handle short-circuit conditions.
Why Is It Important? If a short circuit occurs in the system, a surge of current much higher than the normal operating current flows through the circuit. If the MCB doesn’t have a sufficient short-circuit rating, it may fail to clear the fault, leading to fire hazards or damage to connected equipment.
How to Select Based on Short-Circuit Rating? The short-circuit rating depends on the available fault current in the system. You should calculate or measure the maximum fault current at the location of the MCB installation. The MCB must be able to handle this fault current without failing.
For example, if the calculated short-circuit fault current is 6kA, you would need an MCB with a minimum short-circuit rating of 6kA. Always ensure that the MCB’s breaking capacity is equal to or greater than the fault current to protect both the system and the breaker.
Common Sizing Mistakes and How to Avoid Them
When sizing MCBs, many engineers, especially newcomers, often make mistakes that can compromise the safety and reliability of the electrical system. Here are some common mistakes and tips on how to avoid them:
Oversizing MCBs: It’s tempting to select an MCB with a high rating, but this can lead to insufficient protection. Oversizing an MCB means it will allow more current to flow before tripping, which could cause damage to the wiring and appliances. Always size your MCB based on the actual load and keep a safety margin of about 20%.
Undersizing MCBs: On the other hand, undersizing an MCB can result in nuisance tripping, where the breaker trips even under normal conditions. This can be frustrating and may lead to system downtime. Avoid undersizing by carefully calculating the load and selecting an appropriate MCB rating.
Ignoring Short-Circuit Rating: Never overlook the short-circuit rating of the MCB. Always ensure that the breaker can handle the potential fault current. Failing to consider this can lead to catastrophic failures when a short circuit occurs.
By being mindful of these common mistakes, you can improve the reliability and safety of your electrical systems.
Conclusion
Calculating the right MCB size is essential to ensure that the electrical system is both safe and efficient. By carefully considering the load current, short-circuit protection, and other key factors, engineers can select the optimal MCB size for various applications, from residential installations to complex industrial systems.
MCB sizing is not just about preventing overcurrent—it’s about protection, longevity, and reliability. Understanding the intricate details of sizing, such as factoring in environmental conditions and motor inrush currents, will help you make informed decisions and avoid costly mistakes.
As you gain more experience, the importance of selecting the right MCB will become even clearer. By paying attention to the basic calculations and practical considerations, you will ensure safe and effective protection for your electrical systems.
