Key Takeaway

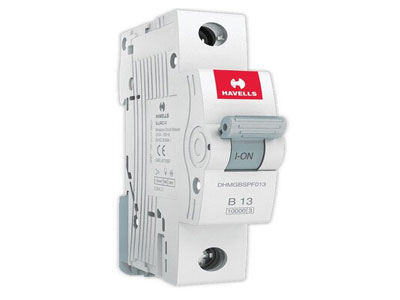

MCBs (Miniature Circuit Breakers) work by automatically cutting off the electrical current when it exceeds a safe limit. They have two main mechanisms: thermal and magnetic. The thermal mechanism trips the breaker if there’s a prolonged overload, while the magnetic mechanism reacts instantly to short circuits.
When the current is too high, the MCB’s internal components detect this and trigger the switch to “off” position. This stops the flow of electricity, preventing potential damage to wiring or devices. MCBs can be easily reset once the issue is fixed, unlike fuses that need to be replaced. They provide essential protection in homes and industries, ensuring electrical safety.
The Basic Functionality of MCBs in Electrical Circuits
An MCB (Miniature Circuit Breaker) is an essential safety device designed to protect electrical circuits from overcurrent conditions. In the simplest terms, an MCB acts as a switch that automatically trips when the current exceeds the safe limit, preventing damage to the electrical system and connected appliances.
When current flowing through a circuit exceeds a pre-set value—either due to an overload or a short circuit—the MCB is designed to break the circuit. This interruption stops the flow of electricity and prevents overheating, which could lead to fires or other electrical hazards. The MCB automatically disconnects the circuit, ensuring that electrical components are shielded from excessive current.
Unlike traditional fuses, which must be replaced after use, MCBs are resettable. After tripping, the breaker can be restored to its original state, making MCBs more cost-effective and efficient over time. Whether in homes, offices, or industrial settings, MCBs are widely used for their reliability and ease of use in circuit protection.
The Mechanisms Behind MCB Activation in Overload and Short-Circuit Events
An MCB works by using specific mechanisms to respond to electrical faults, namely overload and short circuits. Each of these conditions triggers a different type of response from the MCB, ensuring that the circuit is protected effectively.
Overload Protection: Overload occurs when the electrical current exceeds the safe capacity of a circuit over an extended period. This could happen when too many appliances are connected to a single circuit, causing a slow build-up of excess current. In response, the MCB has a thermal mechanism built into its design. This mechanism relies on a bimetallic strip that heats up as the current increases. When the temperature rises beyond a certain threshold, the strip bends, triggering the MCB to trip and disconnect the circuit. This action helps prevent overheating of wires, which could otherwise lead to a fire or damage to electrical components.
Short Circuit Protection: A short circuit occurs when the current flows along an unintended path, such as a direct connection between the live and neutral wires. This can result in a massive surge of current in a very short amount of time. To protect against this, the MCB uses a magnetic mechanism. When the current exceeds a specific value, the magnetic field generated by the current pulls on a lever, causing the MCB to trip instantly. This quick response prevents significant damage and ensures that the circuit is safely disconnected.
Together, these mechanisms enable MCBs to effectively manage both gradual overloads and sudden short circuits, ensuring continuous protection of electrical circuits.
You May Like to Read
The Role of Thermal and Magnetic Components in MCBs
The thermal and magnetic components in an MCB are crucial for its operation and functionality. These components work together to ensure that the breaker responds appropriately to different types of electrical faults.
Thermal Component: The thermal component is designed to protect against overload conditions. The MCB contains a bimetallic strip, which is the key part of the thermal protection mechanism. When an overload occurs, the current flowing through the circuit heats the bimetallic strip. As the temperature rises, the strip bends. The bending action is designed to trip the MCB once a certain threshold temperature is reached. This delay in the tripping action is important because overload conditions often build up gradually, and a slight delay allows the MCB to handle brief fluctuations in current without tripping unnecessarily. Once the strip bends sufficiently, the switch is tripped, opening the circuit and preventing further damage.
Magnetic Component: In contrast, the magnetic component responds to more immediate faults, such as short circuits. A short circuit can cause a rapid surge in current, and the magnetic mechanism reacts almost instantaneously to prevent damage. The MCB features a magnetic coil that is positioned around the current path. When a short circuit occurs, the current flow increases dramatically, creating a strong magnetic field. This field causes the mechanism to pull a lever, which trips the switch and disconnects the circuit. The magnetic mechanism is designed to act quickly, ensuring that the fault is contained before any major damage occurs.
Both the thermal and magnetic components of the MCB work together to provide comprehensive protection against both gradual and instantaneous faults, making MCBs one of the most reliable circuit protection devices available.
How MCBs Automatically Disconnect Power During Fault Conditions
MCBs are designed to automatically disconnect power in response to fault conditions without the need for manual intervention. The automatic disconnection process is driven by the interaction of the thermal and magnetic mechanisms.
When an electrical fault occurs—whether it’s an overload or a short circuit—the MCB detects the change in the electrical current. The first step is identifying whether the current is within the acceptable limits. If it exceeds those limits, the MCB will take action by tripping the circuit. This automatic disconnection occurs in the following steps:
Step 1: Detection of Fault Condition: The MCB constantly monitors the current flowing through the circuit. When an overload or short circuit occurs, the MCB detects a deviation from the normal current flow.
Step 2: Activation of Protection Mechanisms: Depending on the type of fault, the thermal or magnetic mechanism activates. In the case of an overload, the thermal strip bends due to heat, while in a short circuit, the magnetic coil generates a force that pulls a lever.
Step 3: Tripping the Circuit: Once the protection mechanism is triggered, the MCB disconnects the circuit by opening the switch. This action stops the current flow and prevents further damage to the system.
Step 4: Resetting: After the fault is cleared, the MCB can be manually reset to restore power to the circuit. Unlike fuses, which need to be replaced after they blow, MCBs are reusable, providing long-term reliability.
Through this automatic response, MCBs offer enhanced safety by ensuring that circuits are immediately isolated from the fault, reducing the risk of fire, equipment damage, or electrical hazards.
Why MCBs Are More Reliable Than Fuses in Circuit Protection
When comparing MCBs to traditional fuses, one of the main advantages of MCBs is their reliability and cost-effectiveness. While both devices protect circuits from overcurrent, they have fundamental differences in performance and maintenance.
Resettable vs. Replaceable: One of the biggest drawbacks of fuses is that they are a one-time use device. Once a fuse blows due to an overload or short circuit, it must be replaced. This can be inconvenient and costly, especially in environments where frequent trips occur. In contrast, MCBs are resettable. Once the fault is cleared, the MCB can be switched back on, avoiding the need for a replacement.
Fast Response Time: MCBs have a much faster response time compared to fuses. The magnetic mechanism in MCBs ensures that short circuits are detected and the circuit is disconnected almost instantly, reducing the risk of damage. Fuses, on the other hand, may take longer to blow, depending on the current level and the type of fuse.
More Accurate Protection: MCBs provide more accurate protection compared to fuses. The thermal and magnetic mechanisms work together to offer precise control over the amount of current that passes through the circuit. This ensures that the MCB trips only when necessary, minimizing unnecessary interruptions in power.
Durability and Efficiency: MCBs are built to last longer and perform more consistently than fuses. They are designed to withstand multiple trips over time, making them more efficient for use in high-traffic electrical systems, like those found in industrial and commercial environments.
Overall, MCBs provide a more reliable, cost-effective, and efficient solution for circuit protection, offering significant advantages over traditional fuses.
Conclusion
In conclusion, MCBs play a crucial role in protecting electrical circuits from overload and short circuits. Their operation hinges on the thermal and magnetic mechanisms, which work in tandem to detect faults and automatically disconnect power. This makes MCBs a highly reliable and efficient alternative to traditional fuses, offering resettable protection and faster response times. By using MCBs in electrical systems, both residential and industrial users can ensure the safety and longevity of their electrical installations.
