Key Takeaway

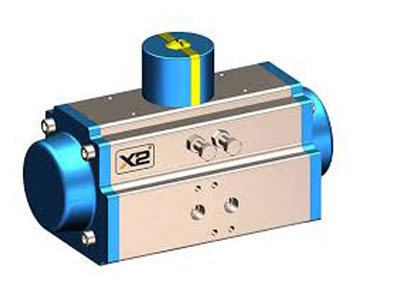

An air actuator works by using compressed air to move a piston or diaphragm inside the actuator. When air is directed into the actuator, the pressure builds up and pushes the piston, creating either linear or rotary motion, depending on the actuator type.
Valves control the air flow, ensuring the actuator moves in the desired direction. This controlled movement is essential for precision tasks in industries like automation, material handling, and manufacturing. Air actuators are fast, reliable, and can handle high loads efficiently.
Conversion of Compressed Air to Mechanical Force
An air actuator operates by converting compressed air into mechanical force. This conversion is the core principle behind pneumatic actuation. Compressed air, stored in a reservoir, is released into the actuator’s chamber, where it exerts pressure on a piston or diaphragm. This pressure forces the piston to move, creating linear or rotary motion, depending on the actuator’s design. The movement generated is then used to perform tasks like lifting, pushing, or rotating mechanical parts, all while utilizing the energy stored in the compressed air.
The mechanism begins when the air is directed into the actuator through a valve system. Once inside the actuator, the pressure causes the piston to shift. This motion is controlled by regulating the amount of air entering the actuator and adjusting the pressure levels. As the air moves through the system, the actuator produces the desired force, which can be used for various applications in industrial machinery, robotics, or automation systems.
What makes air actuators effective is their ability to quickly respond to changes in pressure. Since the air can be compressed and directed on demand, the actuator can initiate or halt motion almost instantaneously, making it ideal for systems requiring rapid and controlled movement. As a result, air actuators are essential for processes that demand high-speed performance without compromising precision.
Key Components Involved in Operation
The operation of an air actuator relies on several key components that work together to ensure efficient and controlled movement. The compressor is the first critical component, responsible for generating the compressed air that powers the actuator. Once the air is compressed and stored in a tank or reservoir, it is ready to be fed into the actuator through a series of valves.
The valve plays a crucial role in regulating the flow of compressed air into the actuator. By controlling when and how much air enters the actuator, the valve determines the speed and direction of the piston’s movement. In most systems, solenoid valves are used for automated control, allowing for precise and consistent air delivery. These valves can be controlled manually or electronically, depending on the complexity of the system.
Next, the actuator chamber holds the piston or diaphragm, which is moved by the force of the incoming air. The piston is typically housed within a cylinder and is responsible for translating the energy from the compressed air into linear motion. In some air actuators, double-acting pistons are used, where air can be supplied to either side of the piston to control both extension and retraction, offering a more versatile range of movement.
Finally, exhaust ports are present to release the air after it has done its work, allowing the actuator to reset for the next cycle. Proper control of exhaust flow also impacts the speed and performance of the actuator. All these components together form an integrated system that drives the actuator’s motion, making air actuators reliable and effective in diverse applications.
You May Like to Read
Stages of Energy Transmission
The process of energy transmission in an air actuator occurs in distinct stages, each crucial for converting compressed air into usable mechanical motion. Understanding these stages is vital for optimizing the actuator’s performance in industrial and automation systems.
The first stage begins with the energy source: the air compressor. The compressor takes in ambient air, compresses it, and stores it at a high pressure in a storage tank. This stored air is the primary source of energy for the actuator and must be regulated before entering the actuator itself.
Next, the compressed air travels through valves that direct it into the actuator. The valves control the flow rate and direction of the air, ensuring that the correct amount enters the actuator’s cylinder at the right time. The flow of air is typically controlled by pressure regulators, which maintain consistent pressure to ensure smooth and reliable motion.
Once the air enters the actuator, it exerts pressure on a piston, causing it to move within the actuator chamber. This mechanical force is the second stage of energy transmission, where compressed air is converted into mechanical energy. The force produced by the piston can be used to perform tasks like opening valves, lifting heavy loads, or moving conveyor belts.
The final stage in energy transmission is the exhaust phase, where the air is released from the actuator. The exhaust valve ensures that the air exits the actuator in a controlled manner, resetting the system for the next cycle. During this stage, the motion of the actuator stops, and the energy cycle is complete. Through this process, pneumatic actuators provide a consistent and efficient means of converting compressed air into mechanical force.
Maintenance Requirements for Smooth Functioning
To ensure the optimal performance of an air actuator, regular maintenance is essential. Proper maintenance helps prevent issues such as reduced efficiency, system failure, and excessive wear on components. Fortunately, the maintenance needs of air actuators are relatively straightforward compared to other types of actuators, but attention to detail is necessary.
One of the primary maintenance tasks is inspecting the air compressor. The compressor must be in good working condition to generate and store compressed air. Regular checks on the oil levels and air filters of the compressor are essential to maintain its efficiency. Dirty filters can reduce the flow of air, leading to decreased performance in the actuator.
Lubrication is another key maintenance requirement for pneumatic actuators. Over time, the moving parts inside the actuator, especially the piston and seals, can wear out due to friction. Using appropriate lubricants ensures that the actuator moves smoothly, reducing wear and tear and extending its lifespan. It is important to use lubricants that are compatible with compressed air systems to avoid contamination of the system.
Checking for air leaks is also crucial. Leaks in the actuator or the connecting pipes can lead to a loss of pressure, reducing the actuator’s effectiveness. Regularly inspecting seals and gaskets and replacing them when necessary can prevent such issues.
Lastly, maintaining the valves and control systems is essential for smooth operation. Ensuring that solenoid valves and pressure regulators are functioning correctly will help maintain consistent air pressure and flow, allowing the actuator to perform its task efficiently.
By adhering to a regular maintenance schedule, air actuators can operate at peak performance, minimizing downtime and ensuring reliable, long-term operation.
Impact of External Conditions on Performance
External conditions can have a significant impact on the performance of an air actuator. Factors such as temperature, humidity, and environmental contaminants can affect how efficiently the actuator operates and its overall lifespan.
Temperature is one of the most important external factors influencing air actuators. Cold temperatures can cause the compressed air to become less effective, potentially leading to increased viscosity in lubricants and reduced efficiency of the actuator’s movement. In extremely high temperatures, on the other hand, the air’s pressure may fluctuate, potentially causing the actuator to operate erratically or with less force. It’s essential to choose actuators that are designed to withstand the specific temperature range of the application environment.
Humidity is another environmental condition that can affect the actuator’s performance. Excess moisture in the air can lead to the condensation of water inside the pneumatic system, causing rust and corrosion in metal components. This can reduce the lifespan of the actuator and affect its overall functionality. Installing moisture separators and dryers in the air supply line can help mitigate this issue and maintain smooth operation.
Additionally, dust, dirt, and other environmental contaminants can enter the actuator if it’s not properly sealed. These contaminants can damage seals, cause blockages, and reduce the efficiency of the actuator. Using filters and ensuring proper sealing around actuator components can help protect against these external threats.
By understanding and managing the impact of external conditions, operators can ensure that their air actuators function optimally, maintain efficiency, and last longer without unexpected breakdowns.
Conclusion
In conclusion, air actuators are key elements in pneumatic systems, enabling the conversion of compressed air into useful mechanical motion. These actuators are utilized in a variety of applications due to their efficiency, reliability, and ease of use. Air actuators can produce linear or rotary motion, depending on the design and application requirements, making them versatile components across different industries.
The benefits of air actuators include their simplicity, low maintenance needs, and ability to operate in challenging environments. They are also considered safe to use, as they do not produce sparks or require electricity. As industries continue to evolve and seek sustainable solutions, air actuators remain a fundamental part of modern machinery, contributing to improved automation and process optimization.
