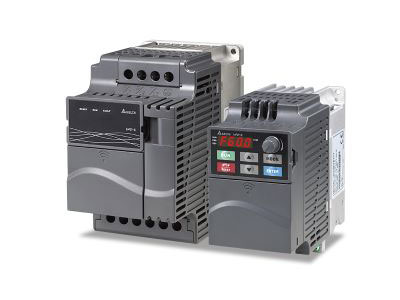

Key Takeaway
A Variable Frequency Drive (VFD) controls the speed of an electric motor by varying the frequency and voltage of its power supply. It begins by converting incoming AC power to DC through a rectifier. The DC power is then filtered and smoothed in the DC bus. Next, an inverter converts the DC power back to AC power, but with adjustable frequency and voltage. This ability to vary frequency and voltage allows precise control of the motor speed, enhancing energy efficiency and performance. VFDs are widely used in industrial applications to improve process control and reduce energy consumption.
Basic Principles of VFD Operation
At its core, a VFD adjusts the frequency and voltage supplied to an electric motor, allowing precise speed control. By varying the motor’s input power frequency, a VFD can efficiently control the motor speed. This capability is essential in industrial applications where different processes require different speeds.
The fundamental principle is based on the relationship between motor speed and power supply frequency. VFDs take the standard AC supply, convert it to DC, and then invert it back to AC with the desired frequency. This conversion process is seamless, ensuring smooth motor operation without any jerks or interruptions.
Internal Structure of a VFD
Understanding the internal structure of a Variable Frequency Drive (VFD) is crucial for any engineer working in industrial applications. A VFD primarily consists of three main sections: the rectifier, the DC bus, and the inverter. Let’s break this down.
Firstly, the rectifier is responsible for converting the incoming AC power into DC power. This is achieved using diodes or thyristors, ensuring a steady and reliable conversion process. The resulting DC power is then passed to the DC bus. Here, capacitors smooth and store the power, maintaining a consistent DC voltage.
Next, the inverter section comes into play. It converts the stored DC power back into AC power but with a twist. This AC power can now have a variable frequency and voltage, controlled precisely by the inverter’s switching devices. These devices are typically Insulated Gate Bipolar Transistors (IGBTs), known for their efficiency and reliability. The ability to adjust the frequency and voltage allows the VFD to control the speed and torque of the motor precisely.
This modular structure of the VFD is what makes it so effective in a wide range of industrial applications. It ensures that motors receive the exact power they need, enhancing performance and energy efficiency. By understanding these components, new engineers can better appreciate how VFDs contribute to modern automation and motor control.
You May Like to Read
The Role of Power Conversion in VFDs
Power conversion is the heart of VFD functionality, essential for precise motor control. When AC power enters the VFD, it first passes through a rectifier, converting it to DC. This conversion is crucial because it allows the VFD to regulate motor speed independent of the input power frequency.
After conversion, the DC power undergoes filtering to eliminate any ripples, ensuring a smooth and steady current. This step is vital for maintaining the integrity of the power supply. Following this, the inverter takes over, converting the stable DC power back into AC. Here, the VFD adjusts the AC frequency and voltage to match the desired motor speed.
Imagine you’re adjusting the speed of a fan. With VFDs, you can do this smoothly without affecting the power source. This ability to control motor speed precisely is invaluable in industrial applications, offering flexibility and efficiency. Understanding this process is key for any engineer working with VFDs, as it highlights the technology’s role in modern automation and energy management.
Control Algorithms Used in VFDs
When working with Variable Frequency Drives (VFDs), understanding the control algorithms is crucial for optimizing motor performance. The three most common control methods are V/F (voltage-to-frequency) control, vector control, and direct torque control (DTC).
V/F Control: This is the simplest method where a constant ratio is maintained between voltage and frequency. It ensures stable motor operation across a wide speed range, making it ideal for applications that don’t require precise control.
Vector Control: Also known as field-oriented control, this method provides more precise control over motor speed and torque. It decouples the motor’s magnetic field into two components: one controlling torque and the other controlling flux. This allows for better dynamic performance and efficiency, especially useful in applications requiring high precision.
Direct Torque Control (DTC): DTC offers direct control over motor torque and flux without the need for feedback loops. It delivers faster response times and higher efficiency, making it suitable for demanding applications where quick adjustments are essential.
Each of these algorithms has its unique advantages, and choosing the right one depends on the specific requirements of the application. For instance, V/F control is straightforward and cost-effective, while vector control and DTC provide superior performance and precision. Understanding these differences is key to selecting the best VFD for your industrial applications.
Practical Examples of VFD Operation
Imagine you are working in a bustling manufacturing plant. Without a Variable Frequency Drive (VFD), the conveyor belt’s motor runs at a constant speed, no matter the production demand. This can lead to wasted energy and increased wear on the motor. But with a VFD, the game changes. You can adjust the speed of the conveyor to match the production rate. This optimization saves energy and reduces the stress on the motor, extending its lifespan. It’s a smart way to ensure the machinery operates efficiently, adapting to varying loads without any manual intervention.
Now, let’s consider HVAC systems. In these systems, VFDs play a crucial role by controlling the speed of fans and pumps. They adjust the airflow and water flow based on the temperature and load requirements. This means the system only uses the energy it needs, improving overall comfort and efficiency. Not only does this approach save energy, but it also reduces operational costs significantly.
Using VFDs in both manufacturing and HVAC systems showcases their versatility and efficiency. They are a vital component in modern industrial applications, ensuring optimal performance and energy savings. Embracing VFD technology means stepping into a future of smarter, more sustainable industrial operations.
Conclusion
In summary, VFDs are indispensable in modern industrial applications. They allow precise control over motor speed and torque, leading to enhanced process efficiency and reduced energy consumption. By converting and adjusting power, VFDs ensure motors operate at optimal speeds for various tasks. Understanding their operation, internal structure, power conversion, and control algorithms is essential for any engineer looking to excel in the field of industrial automation. Embracing VFD technology can lead to significant operational improvements and energy savings, making it a cornerstone of modern industry.
