Key Takeaway

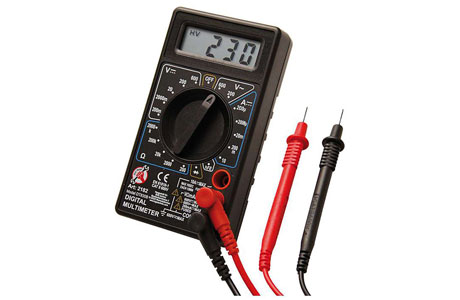

A digital multimeter works by measuring electrical properties such as voltage, current, and resistance. It uses a microprocessor to convert the electrical input into a digital value, which is then displayed on an LCD screen.
Digital multimeters offer better precision, automatic range selection, and additional features compared to analog models, making them suitable for a wide range of tasks.
Basics of Digital Multimeter Operation
Operating a digital multimeter (DMM) involves selecting the appropriate mode and connecting the test probes to the circuit or component under test. For example, to measure voltage, set the dial to the voltage symbol (V or V~) and connect the probes across the component.
Modern DMMs simplify the process with auto-ranging features, which eliminate the need to manually select a measurement range. Advanced features like data hold, backlit displays, and audible alerts further enhance usability.
Learning the basics of DMM operation ensures accurate measurements, making it an essential tool for diagnosing electrical and electronic systems.
Key Components of a Digital Multimeter
A digital multimeter (DMM) consists of several key components that enable it to measure a wide variety of electrical parameters, including voltage, current, and resistance. These components work together to provide accurate and reliable readings, making DMMs an essential tool for both professionals and DIY enthusiasts.
Display Screen: The most noticeable component of a DMM is the digital display, which shows the numerical values of the measurements. The screen can display voltage, current, or resistance values, and many models have a large, easy-to-read LCD screen. Some advanced models can display additional information, such as capacitance or frequency.
Selection Dial: The selection dial allows the user to choose the type of measurement (voltage, current, resistance, etc.) and the appropriate range. Many modern DMMs have auto-ranging functionality, which automatically adjusts the range to provide the most accurate measurement without requiring manual selection.
Probes: The probes are the two leads that connect the multimeter to the circuit being tested. They are typically color-coded (red for positive and black for negative) and are used to complete the circuit for measuring voltage, current, or resistance. The probes are inserted into jacks on the multimeter, and their position determines what type of measurement is taken.
Internal Circuits: Inside the DMM, there are various circuits that process the signals from the probes. These circuits include amplifiers for voltage measurements, shunt resistors for current measurement, and other components that convert the electrical signals into readable data.
Battery: The battery powers the multimeter and allows it to take measurements. Most DMMs use a 9V or AA battery, and the battery life depends on how frequently the device is used.
These components, combined with advanced software in digital multimeters, enable precise, reliable measurements that are essential for troubleshooting and maintaining electrical systems.
You May Like to Read
Steps Involved in Digital Signal Processing
1. Signal Acquisition
The first step in DSP is acquiring the input signal. This is done using the multimeter’s probes that connect to the circuit being tested. The probes measure the voltage, current, or resistance of the electrical signal. The multimeter’s internal circuitry then converts this analog signal into a form that can be processed by the digital components.
2. Analog-to-Digital Conversion (ADC)
Once the signal is acquired, the next step is to convert the analog signal into a digital signal. This is done using an Analog-to-Digital Converter (ADC). The ADC samples the analog voltage at regular intervals and assigns digital values that correspond to the strength of the signal at those moments in time. The ADC essentially turns continuous, real-world signals into discrete numbers that can be processed by a microprocessor.
3. Signal Processing and Filtering
Once converted into digital form, the signal is then passed to the microprocessor for processing. Here, the signal is filtered to remove any unwanted noise or distortion that may have been introduced during measurement. The filtering ensures that the multimeter provides a clean and accurate reading. This is especially important when measuring small signals or when testing circuits with high-frequency noise.
4. Signal Analysis
After the signal is filtered, it undergoes further analysis by the multimeter’s internal system. Depending on the measurement mode (voltage, current, resistance), the signal is analyzed to calculate the desired value. For example, in the case of voltage measurement, the microprocessor will analyze the sampled values and display the voltage on the multimeter’s screen.
Advantages of Digital Multimeters Over Analog Models
Digital multimeters (DMMs) offer several advantages over analog models, making them the preferred choice for modern electrical testing. One of the key benefits is the precision and accuracy of the readings. Unlike analog meters, which rely on a moving needle to indicate values, DMMs display precise numerical readings on a digital screen. This eliminates the potential for errors associated with interpreting the position of the needle on an analog scale. Digital multimeters also tend to have higher resolution, allowing them to measure smaller variations in voltage, current, and resistance, which is especially important in sensitive electronic work.
Another advantage of digital multimeters is their versatility. In addition to measuring basic electrical parameters such as voltage, current, and resistance, DMMs can also measure other factors such as capacitance, frequency, and even temperature, depending on the model. This makes them suitable for a wide range of applications, from home electronics repair to industrial system diagnostics. Many DMMs also come with auto-ranging features, which automatically adjust the meter to the correct range, making them easier to use for both beginners and professionals.
Additionally, digital multimeters are more durable and easier to read than analog models. They are less prone to mechanical wear since they don’t have moving parts like the needle in an analog meter. The digital display is also clearer, and many models come with backlighting for visibility in low-light environments. Furthermore, many digital multimeters offer safety features such as overload protection, fuses, and CAT ratings for working in high-voltage environments, which are often lacking in older analog meters.
Given these advantages, digital multimeters have become the standard for most electrical testing, providing users with better accuracy, convenience, and safety compared to analog alternatives.
Real-World Applications of Digital Multimeter Technology
Digital multimeters (DMMs) are incredibly versatile tools used in a wide array of real-world applications, from home electronics repairs to advanced industrial maintenance. In everyday scenarios, they are often used to troubleshoot household electrical issues, such as checking faulty appliances or ensuring that wiring installations are safe and correctly wired.
In industrial applications, DMMs play a crucial role in testing and maintaining electrical machinery, power distribution systems, and control circuits. Their ability to measure a variety of electrical parameters—voltage, current, resistance, and frequency—makes them indispensable tools for engineers and technicians who need to ensure the safe and efficient operation of complex electrical systems. Furthermore, many DMMs come with features like auto-ranging and data logging, which help streamline testing and increase the precision of measurements.
Conclusion
In conclusion, a digital multimeter (DMM) works by using analog-to-digital conversion to process electrical signals and display them numerically. The device samples input signals, whether they are voltage, current, or resistance, and converts them into a digital format for precise readings. This makes DMMs versatile tools for a range of applications, from basic electrical testing to advanced troubleshooting.
The ease of use and accuracy provided by digital multimeters have revolutionized how professionals and hobbyists handle electrical measurements. Understanding their working mechanism allows users to take full advantage of the device’s features.
