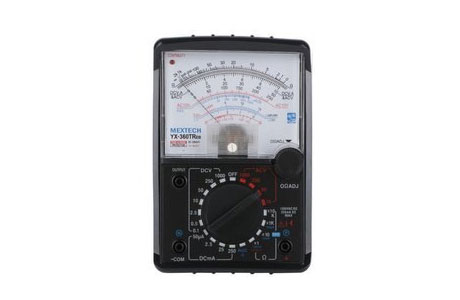

Key Takeaway
Multimeters measure voltage, current, and resistance by connecting the probes to the circuit. For voltage, the probes are placed across the two points where voltage is to be measured. For current, the probes are connected in series, allowing current to flow through the meter.
To measure resistance, the multimeter sends a small current through the component and calculates the resistance based on the voltage drop. The device then displays the readings for each parameter on the screen.
Understanding the Basics of Voltage, Current, and Resistance
Voltage, current, and resistance are the three fundamental parameters of any electrical circuit. Voltage is the electrical potential difference between two points and is measured in volts (V). It drives current through a circuit. Current, measured in amperes (A), is the flow of electric charge. Resistance, measured in ohms (Ω), opposes this flow of current.
A simple analogy to understand these parameters is comparing them to water flow in a pipe. Voltage is akin to water pressure, current is the water flow, and resistance is any obstruction in the pipe. These quantities are interrelated through Ohm’s Law, which states that Voltage (V) = Current (I) × Resistance (R).
Understanding these basics is essential for diagnosing circuit issues. For instance, a sudden drop in voltage might indicate a fault in the power source, while unusually high resistance could signal a damaged component. Using a multimeter, you can measure these parameters and pinpoint the problem efficiently. This knowledge is foundational for anyone working with electrical or electronic systems.
Voltage Measurement- Step-by-Step Process
Measuring voltage with a multimeter is a straightforward process that requires careful attention to detail. Here’s a step-by-step guide:
Set the Multimeter: Turn the dial to the “V” setting. Select AC or DC voltage depending on the circuit type. Most household circuits are AC, while batteries and electronic devices use DC.
Choose the Proper Range: If your multimeter isn’t auto-ranging, select a voltage range higher than the expected value. For instance, if you expect 120V, set the range to 200V.
Connect the Probes: Insert the black probe into the COM port and the red probe into the “V” port. Ensure the connections are secure.
Identify Test Points: Locate the points where you want to measure voltage. In most cases, this involves connecting the probes across a component or power source.
Measure the Voltage: Touch the black probe to the circuit’s ground or negative terminal and the red probe to the positive terminal. Read the voltage value on the display.
You May Like to Read
Measuring Current Safely and Effectively
Measuring electrical current is one of the key functions of a multimeter, but it must be done with care. Improperly measuring current can damage the multimeter, pose a safety risk, or give inaccurate readings. For both DC (direct current) and AC (alternating current), the steps involved in measuring current with a multimeter are critical to achieving accurate and safe results.
When measuring current, it’s important to remember that the multimeter needs to be connected in series with the circuit. Unlike measuring voltage or resistance, where the multimeter can be connected in parallel to the circuit, current must flow through the multimeter itself. This is because the multimeter acts as a measuring device for the current traveling through the circuit, and any break in the circuit will stop the current flow.
Before taking a current measurement, disconnect the power to the circuit to avoid potential damage. Set the multimeter to the correct current range—either AC or DC, depending on the type of current being measured—and make sure the multimeter leads are plugged into the correct jacks (typically the current measuring jack, often labeled as A or mA). Using the wrong setting could burn out the multimeter’s fuse or cause dangerous electrical arcs.
Once the multimeter is properly set up, you can reconnect the circuit and begin measuring the current. The multimeter will display the current in amperes, and you can adjust the range if necessary to get a more accurate reading. Always remember that high current readings (especially above 10 amps) may require a clamp meter for safety reasons, as some multimeters cannot safely handle high current loads.
Importance of Resistance Testing in Circuits
Resistance testing is crucial for diagnosing issues within electrical circuits, as it helps identify faulty components and potential short circuits. When resistance is measured in a circuit, the multimeter detects the opposition to the flow of current, which helps to determine whether components like resistors, wiring, and other elements are functioning properly. If a component has an abnormal resistance value—either too high or too low—it may indicate that it’s defective or compromised.
For example, high resistance values can indicate a broken or loose connection, while low resistance could suggest a short circuit or excessive current flow in a particular section of the circuit. Resistance testing is particularly valuable in power distribution systems, where faulty connections or degraded components can cause significant inefficiencies or lead to equipment failure. It is also essential in troubleshooting issues in electronics, such as power supplies, amplifiers, and other devices where precise resistance values are necessary for proper operation.
Multimeters equipped with a resistance function provide technicians with a quick, effective way to check the health of individual components or entire circuits. In fact, resistance testing is often one of the first steps when diagnosing a circuit, as it can quickly reveal if the problem lies in the wiring or components. Whether for maintenance, repairs, or safety checks, resistance testing is a critical part of ensuring the integrity of electrical systems.
Common Challenges and Solutions in Electrical Measurements
Electrical measurements come with their own set of challenges, whether you’re working with low-level signals or complex circuit systems. One common issue is the incorrect interpretation of readings, especially when measuring AC voltages. Multimeters that lack True RMS (Root Mean Square) functionality can give inaccurate readings when measuring non-sinusoidal waveforms, leading to errors in calculations. The solution is to use a True RMS multimeter that accounts for complex waveforms and provides accurate voltage measurements.
Another common challenge is the difficulty in measuring current without breaking the circuit. While clamp meters can solve this issue by allowing current measurements without disconnecting components, traditional multimeters require a break in the circuit to place the leads. To mitigate this, multimeters with clamp meter functionality are becoming increasingly popular. Also, for precise resistance measurements, the temperature of components should be considered, as resistance can change with temperature variations. To overcome this, consider using a multimeter with temperature compensation features.
Conclusion
Multimeters measure voltage by connecting the probes across a component to read the potential difference. For current, the multimeter is connected in series with the circuit, allowing it to measure the flow of electric charge. Resistance is measured by applying a small internal voltage and observing the resulting current flow through the resistor.
This versatility in measuring key electrical parameters makes multimeters a go-to tool for troubleshooting, maintenance, and testing. Their ability to switch between these functions ensures that users can handle various tasks with a single device.
